| Place of Origin | Zhejiang, China | Brand Name | QVAND |
| Product Name | Ball Valve Lockout | Material | Engineering ABS |
| Color | Red | Service | OEM support |
Part No.: M-H18M

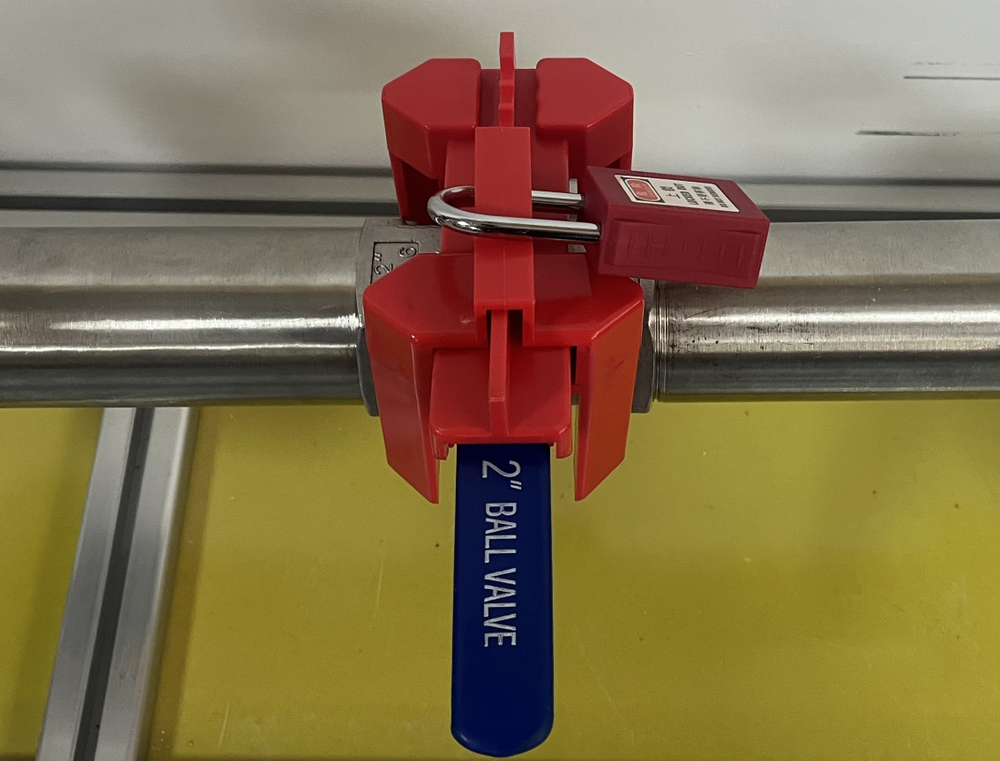

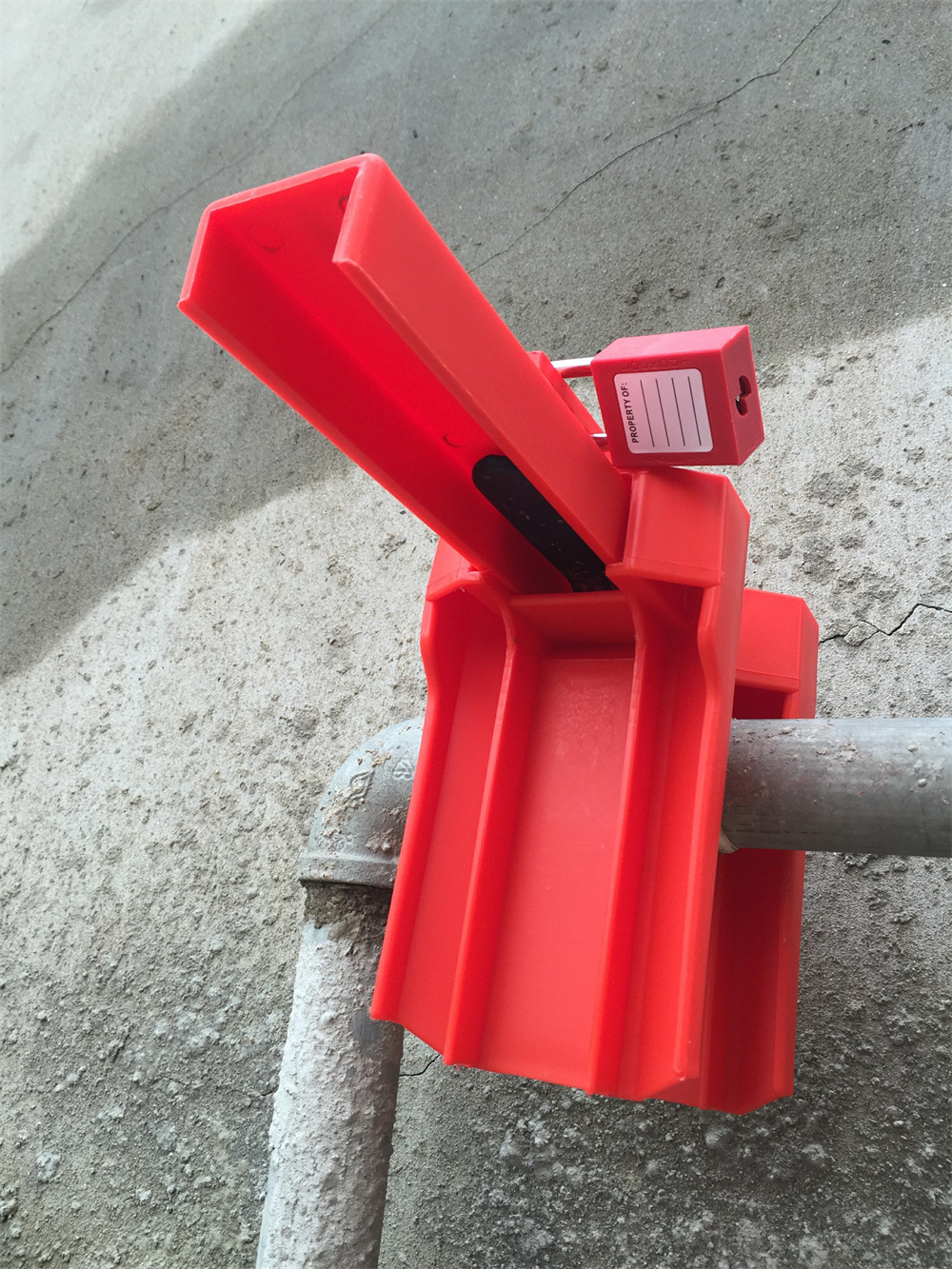

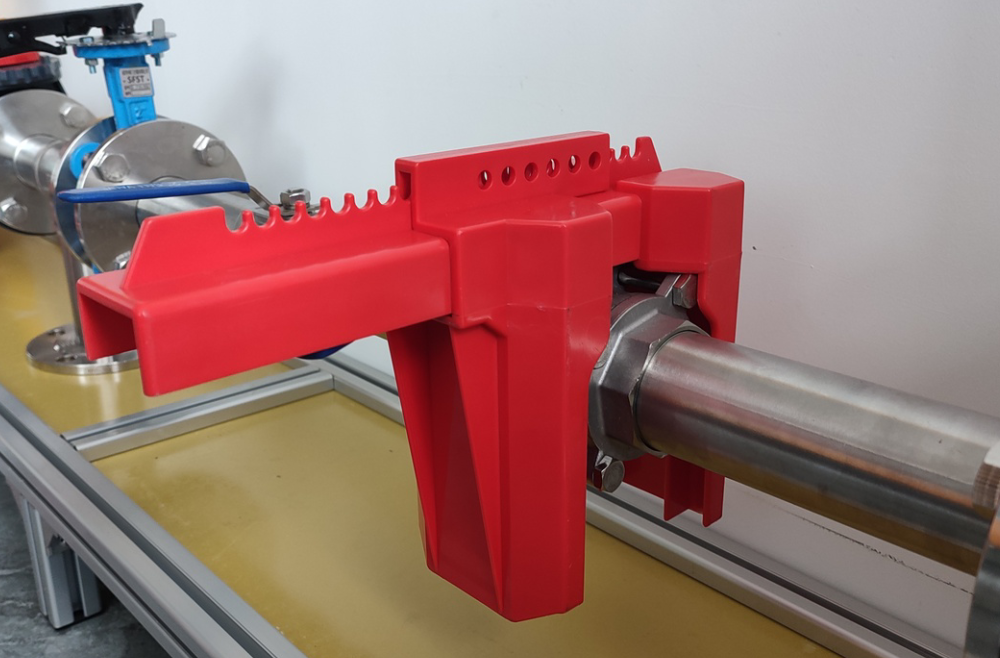

Adjustable Ball Valve Lockout
a) Made
of durable ABS
plastic.
b)
Suitable for pipe size from 13mm to
200mm.
c)
For the maximum
locking shackle with diameter 8mm.
d) The
default color is RED, other colors can be
customized.

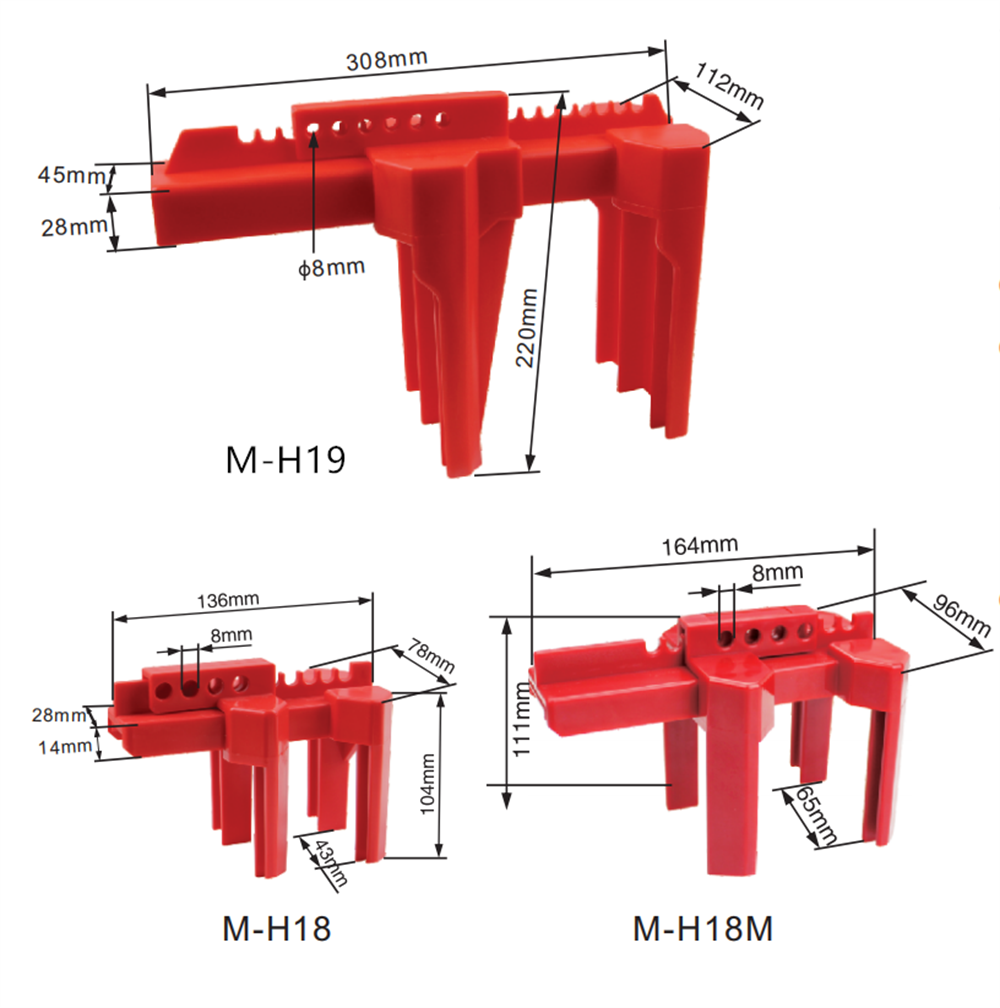

Adjustable Ball Valve Lockout M-H18/19 specification
| Model | specification |
| M-H18 |
Suitable for ball valve model DN8-DN50, pipe diameter 13 to 43mm at open position |
| M-H18M |
Suitable for ball valve model DN8-DN80 , pipe diameter 13 to 65mm at open position |
| M-H19 |
Suitable for ball valve model DN50-DN200, pipe diameter 50 to 200mm at open position |
