PTFE Laminated Glass Fabric PTFE Impregnated Fiberglass Cloth High Temperature Resistance PTFE Coated Fiberglass Cloth

Contact Now

Product Details

Model	Description	Thickness (mm)	Total weight （g/㎡）±5%	Tensile Strength （N/5cm)±5%
Model	Description	Thickness (mm)	Total weight （g/㎡）±5%	warp	weft
9008AJ	brown	0.07	150	650	550
9008BJ	black, anti-static	0.07	160	460	420
9008J	white	0.07	150	600	500
9011AJ	brown	0.105	228	1150	1050
9013AJ	brown	0.125	250	1200	1100
9013BJ	black, anti-static	0.125	260	1050	850
9013J	white	0.125	250	990	900
9015AJ	brown	0.14	300	1350	1250
9018AJ	brown	0.17	350	1750	1550
9020AJ	brown	0.19	420	1800	1500
9025AJ	brown	0.23	490	2200	1750
9025BJ	black, anti-static	0.24	450	2000	1700
9025J	white	0.24	450	2000	1700
9030AJ	brown	0.28	620	2500	1800
9030B	black	0.28	580	2400	1700
9030BJ	black, anti-static	0.28	610	2400	1700
9030J	white	0.28	650	2600	1900
9035AJ	brown	0.32	620	3000	2100
9035BJ	black, anti-static	0.32	620	2800	2000
9036AJ	brown	0.35	690	3200	2200
9036BJ	black, anti-static	0.35	690	3000	2000
9040AJ	brown	0.39	770	3200	2100
9040BJ	black, anti-static	0.39	770	2800	1800
9045HD	black, anti-static	0.43	540	3000	2200
9045HD	grey, coating double sides	0.43	610	3500	2400
9045HD	grey, coating single sides	0.43	540	3500	2400
9055AJ	brown	0.53	1000	4200	3500
9055J	white	0.53	1000	3500	3000
9055BJ	black, anti-static	0.53	1000	3500	3000
9065AJ	brown	0.63	1180	4500	3800
9065BJ	black, anti-static	0.63	1180	4000	3200
9065J	white	0.63	1180	4500	3800
9080AJ	brown	0.78	1550	5500	4000
9080J	white	0.78	1550	5500	4000
9090AJ	white or brown	0.9	1600	6500	5500
9090BJ	black, anti-static	0.9	1600	6500	5500
9100AJ	brown	0.98	1250	6000	5000

1. Stable dimension, high intensity, elongation coefficient less than 5%.
2. Good temperature resistance, continous working temperature -70～260℃.
3. Low coefficient of friction and dielectric constant, high insulation property.

4. Non-stick, easy to clean stains and adhesive on the surface.
5. Good chemical resistance, it can resist almost all of chemical, acids, alkalis, and salt, it is fireproof, aging resistance. Joint Types

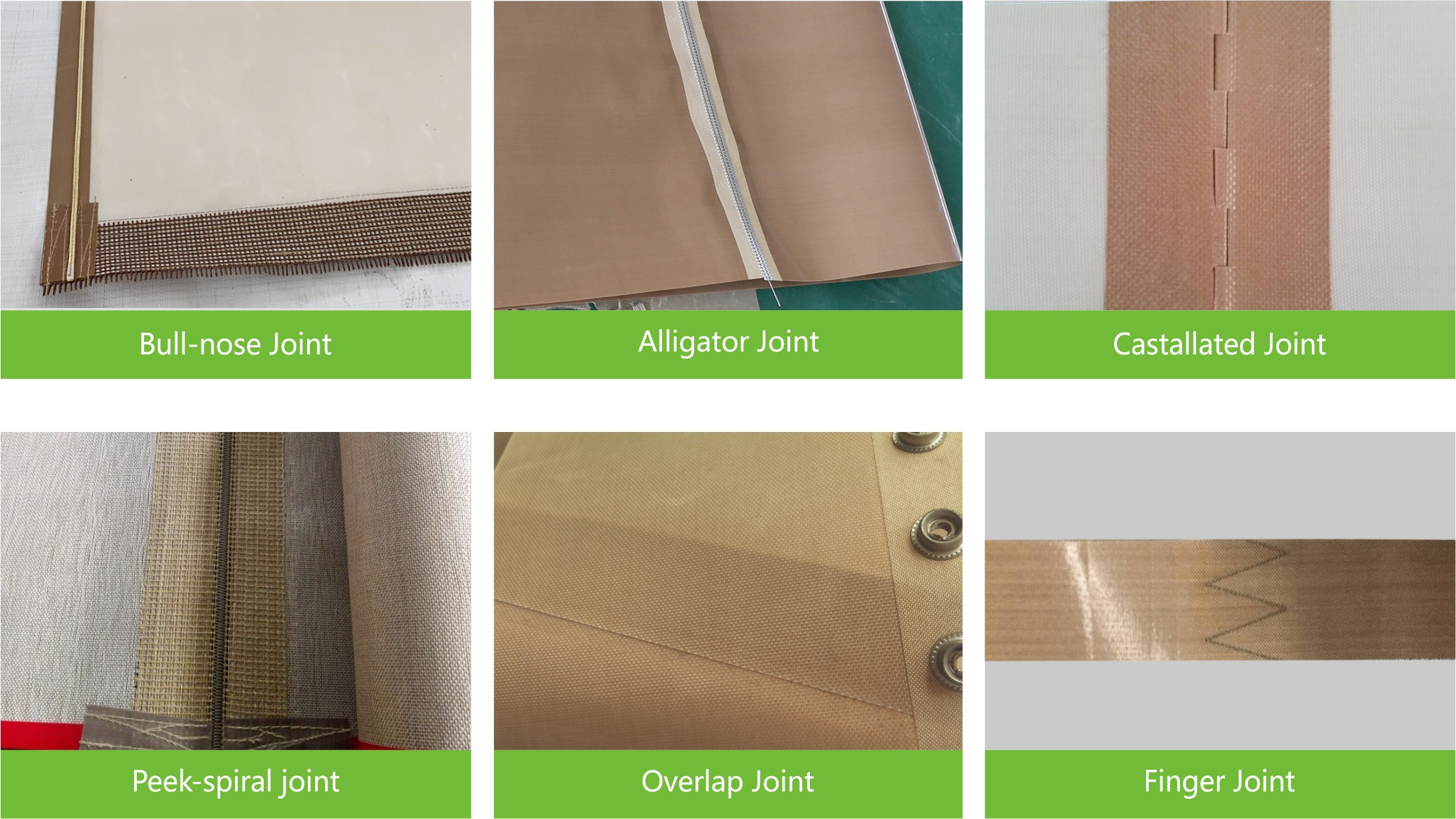

At present, we have a variety of joint methods: bull-nose joint, alligator joint, castallated joint, speek joint, overlap joint, finger joint.

Product Applications:

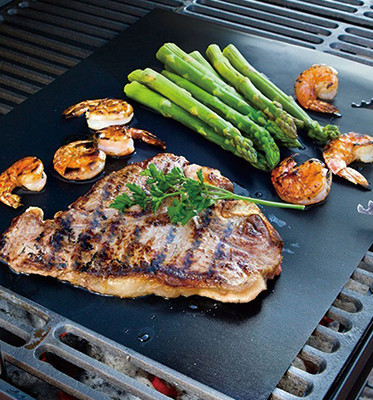

1. Gasket for heating food, baking mat, microwave oven gasket;
2. Anti-adhesive lining, gasket, mask, etc.;

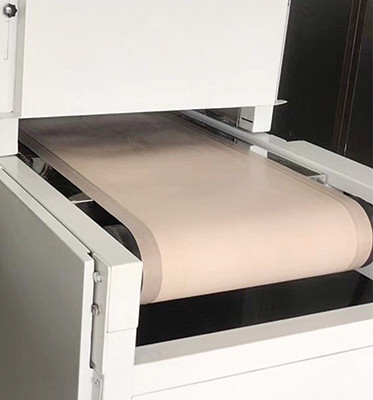

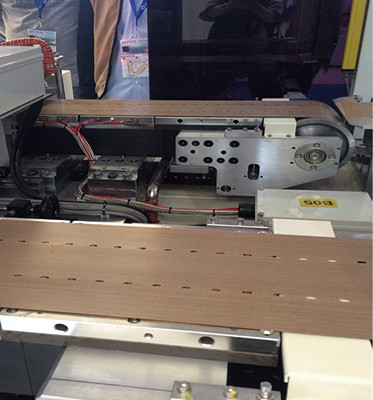

3. According to different specifications, coated cloth can be used for conveyor belts of various drying machines, adhesive tapes, sealing tapes, etc.

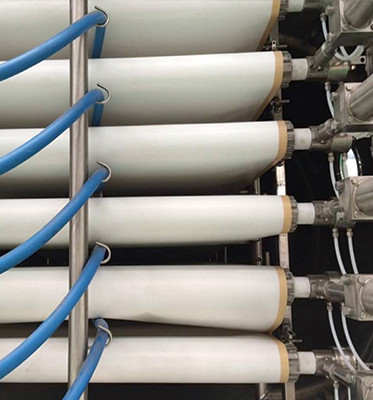

4. It is used for corrosion protection of various petrochemical pipelines, electrical and electronic insulation, high temperature-resistant cladding materials, environmental desulfurization of power plant exhaust gas, etc.
