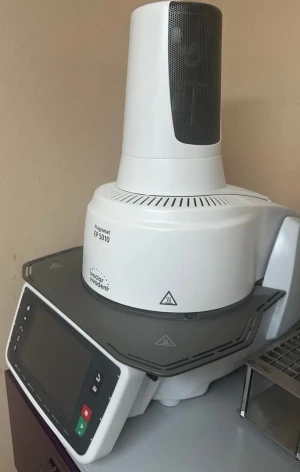

Programat EP 5010 G2 Dental Press Furnace and Vacuum Pump

Product Details

Condition: Brand New

Warranty: 2 Years Global Warranty

Payment method: Crypto Currency,Bank to Bank Transfer,Western Union,Ria Transfer,Money Gram,e.t.c

Delivery method: 4 to 5 working days (door to door delivery).

Specifications:

EP 3010 G2 EP 5010 G2

Max. power consumption 12 A at 110 – 120 V

8.5 A at 200 – 240 V

Vacuum pump data Max. power consumption: 250 W

Final vacuum: < 50 mbar

Only tested pumps should be used

Dimension of closed furnace Depth: 465 mm Depth: 495 mm

Width: 320 mm / 390 mm Width: 320 mm / 395 mm

(with cooling tray) (with cooling tray)

Height: 550 mm Height: 550 mm

Dimensions of firing chamber Diameter: 90 mm

Height: 80 mm

Max. firing temperature 1200 °C

Weight 18.3 kg 20.5 kg

Safety information

Radio protection / Electromagnetic compatibility EMC tested

Comparison:

EP 3010 G2 EP 5010 G2

Hardware equipment

Colour touchscreen display with membrane-sealed keypad ✓ ✓

Electronic press drive with force sensor ✓ ✓

QTK2 muffle technology with SiC bottom reflector ✓ ✓

OSD with progress indicator ✓ ✓

Programat infrared technology (IRT) ✓ ✓

Software equipment

Easy operation due to modern control concept ✓ ✓

Individual firing/press programs 300/20 500/20

Preset Ivoclar Vivadent firing/press programs ✓ ✓

Power Saving Technology ✓ ✓

Integrated maintenance and diagnostic programs (e.g. heater, vacuum, etc.) ✓ ✓

Fully automatic press function (FPF) ✓ ✓

System to bridge short power cuts ✓ ✓

Automatic crack detection (CDS) in the investment ring ✓ ✓

Software update via USB flash drive ✓ ✓

IoT connectivity ✓ ✓

Report ✓ ✓

Integrated multimedia functions ✓

Remote monitoring and diagnostics via Programat app ✓

Integrated program copy assistant ✓

IRT-controlled pre-drying ✓

IRT-controlled recognition of the investment ring size ✓

Digital shade assistant (DSA) ✓

Temperature calibration

Automatic double-range temperature calibration (ATK2) ✓ ✓

Design and ergonomics

Integrated holder for firing tongs ✓ ✓

Large cooling tray ✓ ✓

Ports

USB ports 1 3

SD card reader ✓
