Professional Audio system PA passive speaker dual 15 inch

FOB Price 85 - 380 USD / Piece
MOQ50 Piece

Quick Details (View All)

Model NumberSTX series

Product Details

View File

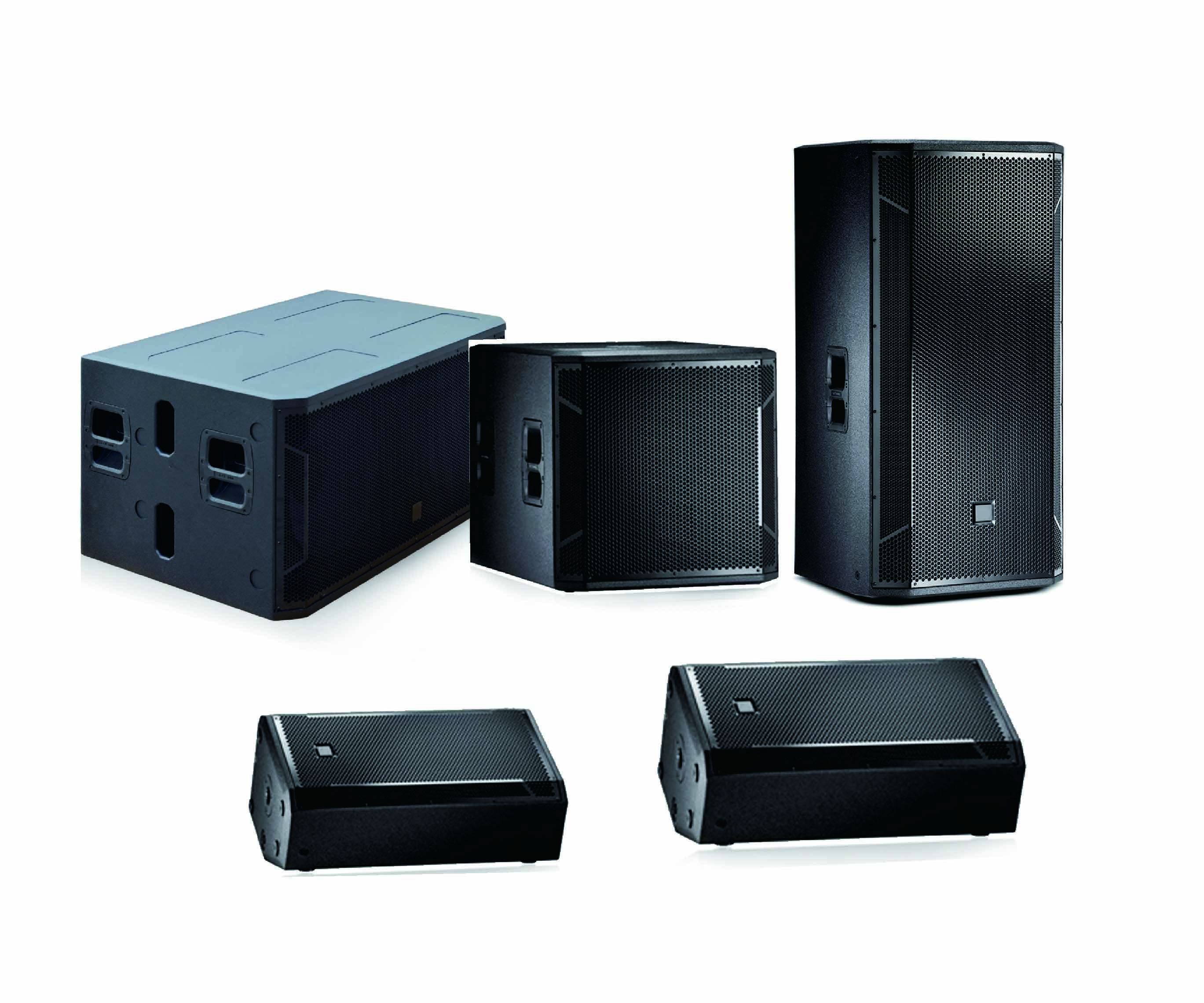

The STX800 has a total of 3 full range speakers and 2 subwoofer. Full-range speakers include low power and high power, both in small rooms and in the lobby. Even when applied to rooms with multiple different sizes, the STX800 gives the entire audio system consistent sound characteristics and themes.

3 high power models:
STX812M, STX815 , STX825

1 subwoofer model:
STX818S , STX828S

The woofer unit used in the high-power part uses the high-power long-stroke woofer specially designed , which has the highlights of low frequency thickness and high sound pressure level. The 15 lifting points can realize different installation angles according to the installation site, providing users with flexible installation methods.

- full range uses a new and optimized crossover to achieve a seamless connection of the frequency response of each drive unit, so the vocals can be played clearly.

- The wooden cabinet structure and the thick bass make the STX800 also capable of playing high-fidelity music.

- The addition of the protection circuit greatly increases the reliability of the use of the speaker.

- Black and white, optional, perfect match or formal or casual decoration style.


Model STX-812M
Configuration 1 x 12" 2 way speaker
HF Drivers 1.76 inch voice coil
LF Drivers 3 inch voice coil 12"speaker
Power capacity:
RMS 400W
Peak 800W
Impedance 8 ohm
Frequency Range 60 Hz-18Hz (+-3db)
Sensitivity 97dB
MAX SPL 106dB
Material MDF/Plywood
Finish Rugged tour-grade textured paint
Size 355x275x570 mm
net weight 15 KG

Model STX815
Configuration 1 x 12" 2 way speaker
HF Drivers 1.76 inch voice coil
LF Drivers 3 inch voice coil 12"speaker
Power capacity:
RMS 400W
Peak 800W
Impedance 8 Ohm
Frequency Range 60 Hz-18Hz (+-3db)
Sensitivity 97dB
MAX SPL 106dB
Material MDF/Plywood
Finish Rugged tour-grade textured paint
