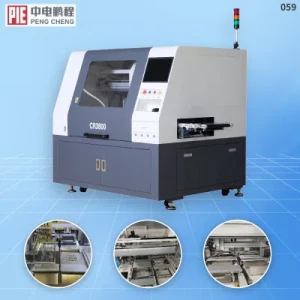

OEM Various and PCBA Automatic PCB/PCBA Machine Equipment PCB Cutting Milling Cutter

Name: OEM Various and PCBA Automatic PCB/PCBA Machine Equipment PCB Cutting Milling Cutter
Brand: Pengcheng Intelligent Equipment Co., Ltd.
SKU: Tradewheel_2511374
Price: 5000 USD
Availability: InStock

FOB Price 5000 - 60000 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	CR3800-001	Driven Type	Electric
Machine Weight	1350 Kg	Valid Cutting Size	350*350 mm
Cut Mode	Upper Milling Cutter	Operating System	Windows 10
Suitable for	Various PCB and PCBA	Transport Package	Wooden Box
Specification	270017501800mm	Trademark	PENGCHENG
Origin	China	HS Code	8479899990
Production Capacity	100 Units/Month

Product Details

Product Description

Company Info.

Overview
Product Description
Product Parameters
Company Profile
Certifications
Our Advantages
After Sales Service
Exhibition
FAQ

Product Description

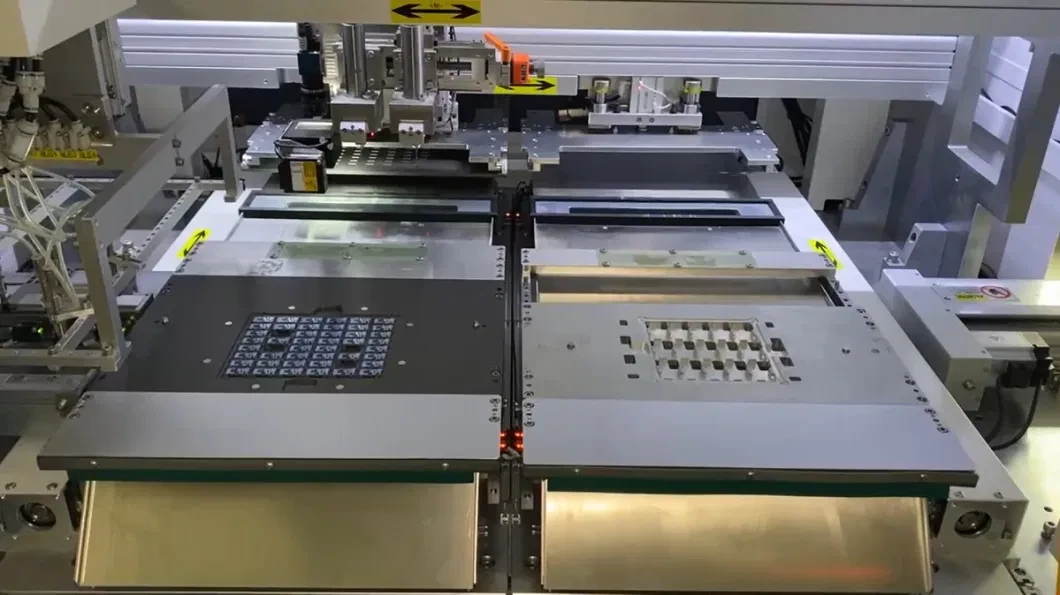

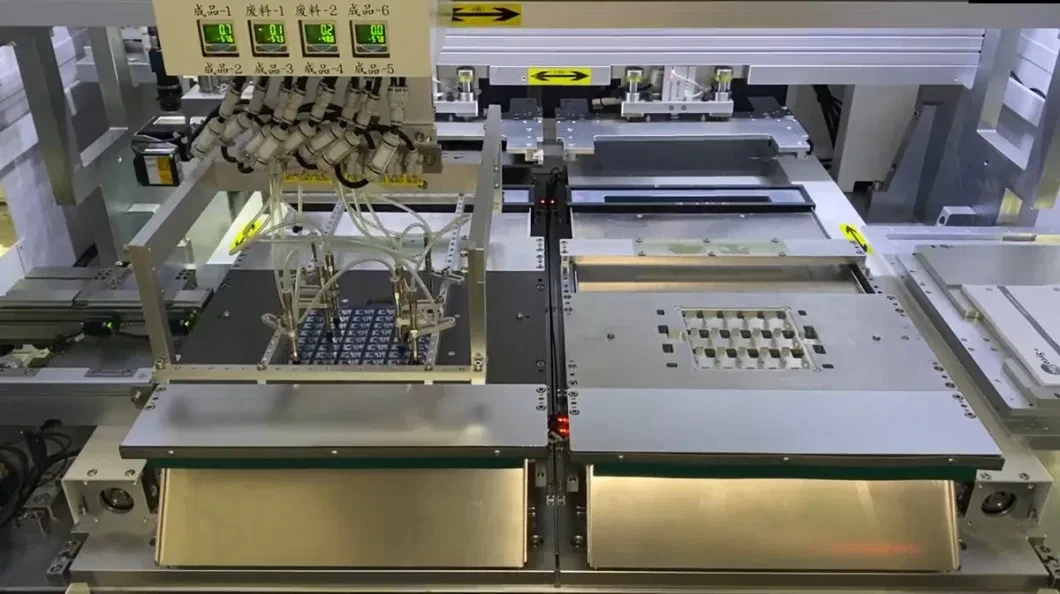

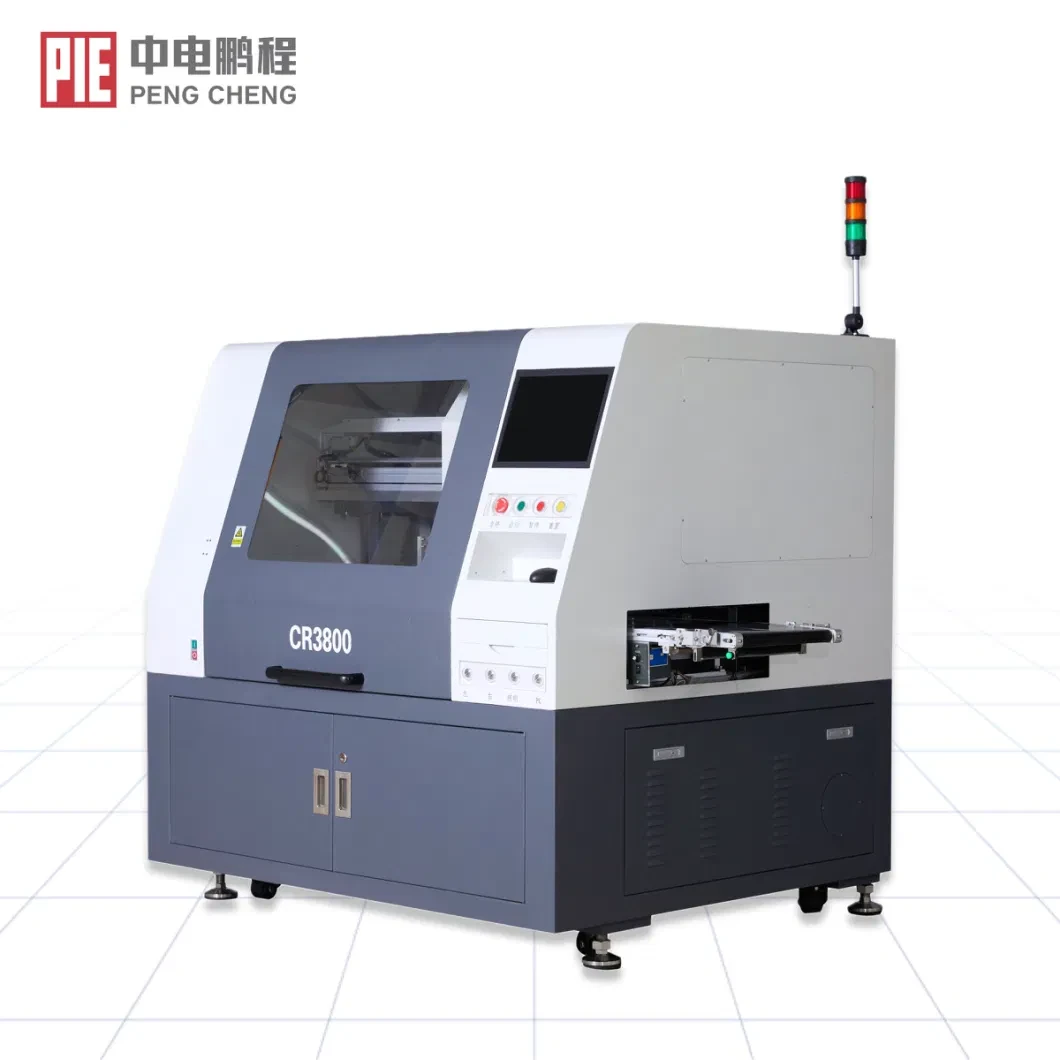

PCB/PCBA Online Cutting Machine is used for the cutting and separating of small and multi-connected PCBs, such as those used in mobile phones, digital cameras, GPS devices, PDAs, 5G devices, medical electronics, automotive electronics, and drones. It is also suitable for the cutting and separating of larger circuit boards used in digital TVs, PC hosts, workstations, servers, and other large-scale electronic devices. It utilizes a high-speed spindle for cutting, ensuring minimal stress, high precision, and compatibility with complex-shaped circuit boards. The cutting range is 350×350mm. Both offline and online configurations are available.There are more functional configurations available.

Cutting mode	Upper milling cutter
Production mode	Online
Stage number	Double stage
Spindle number	Single
Loading Qty	Single / Double
Cutting range	350×350mm
Cutting speed	1~100 mm/s
Repetition accuracy	± 0.01 mm
Loading Mode	Belt / Module
Feeding direction	Left in Right out/Right in Left out (optional)
Move&Place Mode	Once/Multiple Loading(optional)
Screw guide	HIWIN / TBI
Servo system	Panasonic / Nidec
Type of drive	AC Servo motor
Computer configuration	i7-16G RAM + 1T enterprise hard drive
Computer system	windows 10 64Bit
Cutting accuracy	± 0.1mm
Login permission control	Three-level authority
Max axis speed	XY-axis1000MM/S;Z-axis250MM/S
Cutting track	Straight/Arc
Laser height accuracy	± 0.05mm
Visual accuracy	± 0.015mm
Mark locate function	Standard configuration
Cutting thickness	0.5-3 mm
Spindle speed	Max.100,000 rpm SycoTec ESD(Germany)
Automatic cutter change	M / A
Automatic cover board	Auto(optional)
Cutter inspection function	Cutter Breaking/Sliding Detection (standard) Cutter Diameter Detection (optional)
Code scanning function	Optional
MES function	Optional
Ionic balance	<±30V
Voltage	AC 220V 50/60Hz
Air pressure supply	0.5-0.7MPa
Power dissipation	3KW
Dust collection system	Up / Down
Dust collection system	Down:5HP or 3HP/extraposition Up:3HP/extraposition
Air outlet demension	200mm
Dust collector voltage	AC~380V
Demension(W×D×H)	1650×1300×1650 mm
Weight	1350KG

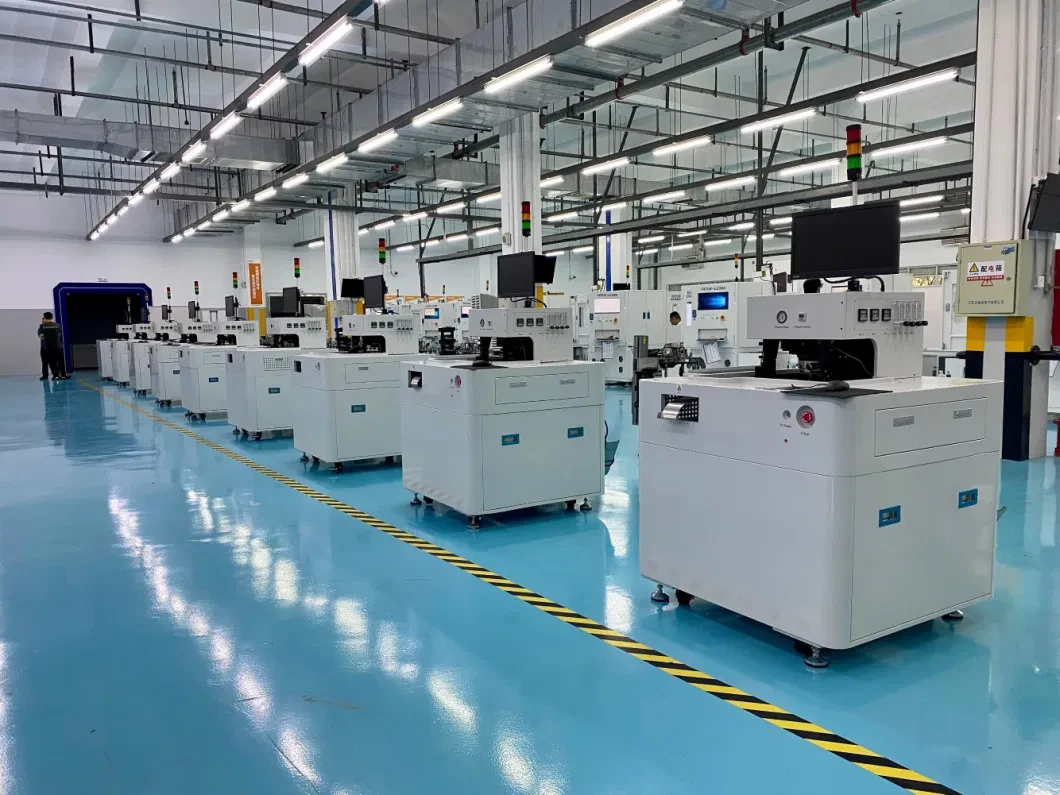

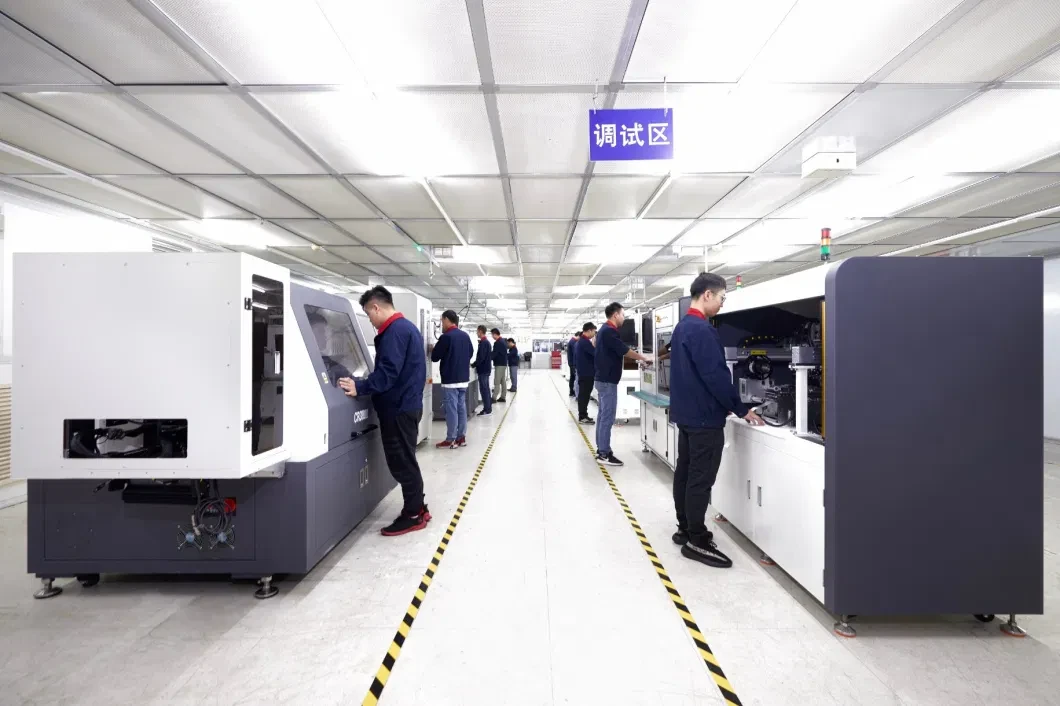

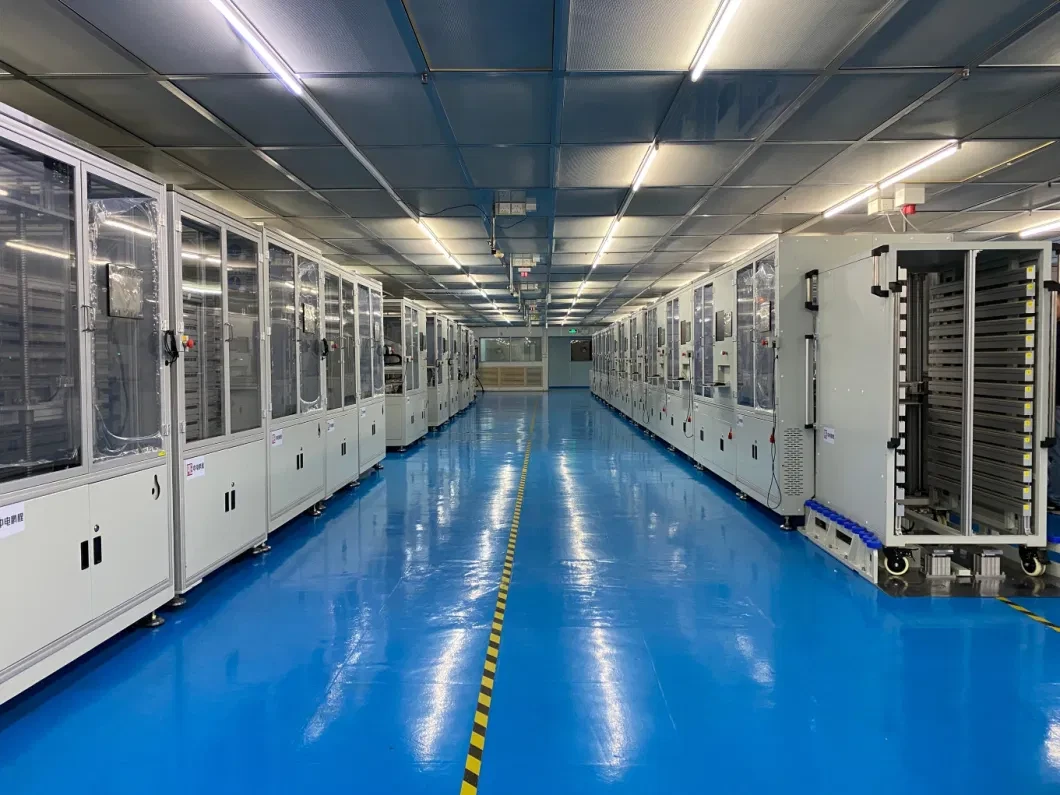

We have a 5000 square meter machine debugging workshop, which is used for debugging, testing, maintenance, and troubleshooting of various models of machines.

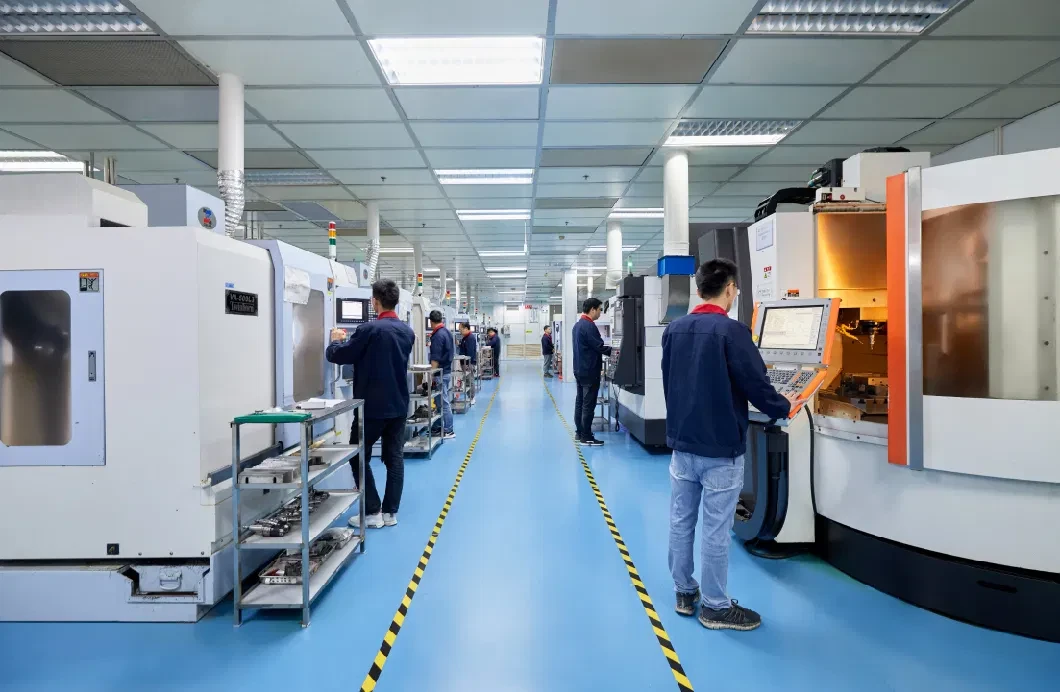

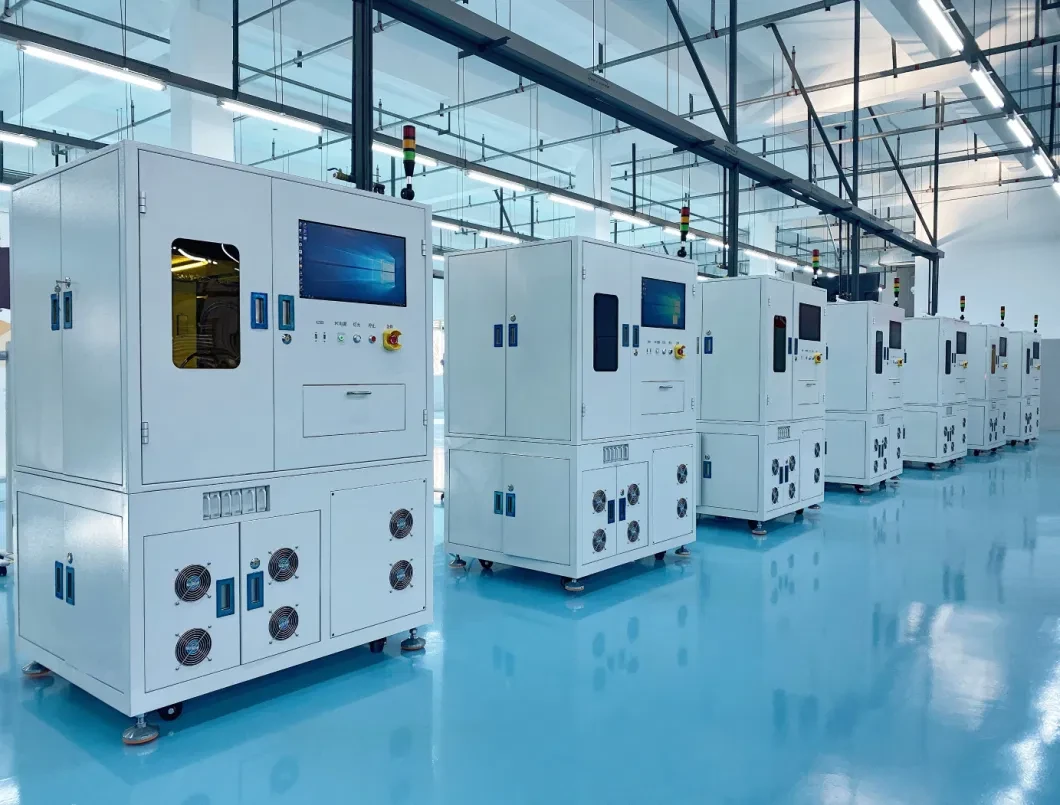

We have a 1000 square meter manufacturing workshop for large-scale production of various machines and high-precision components.

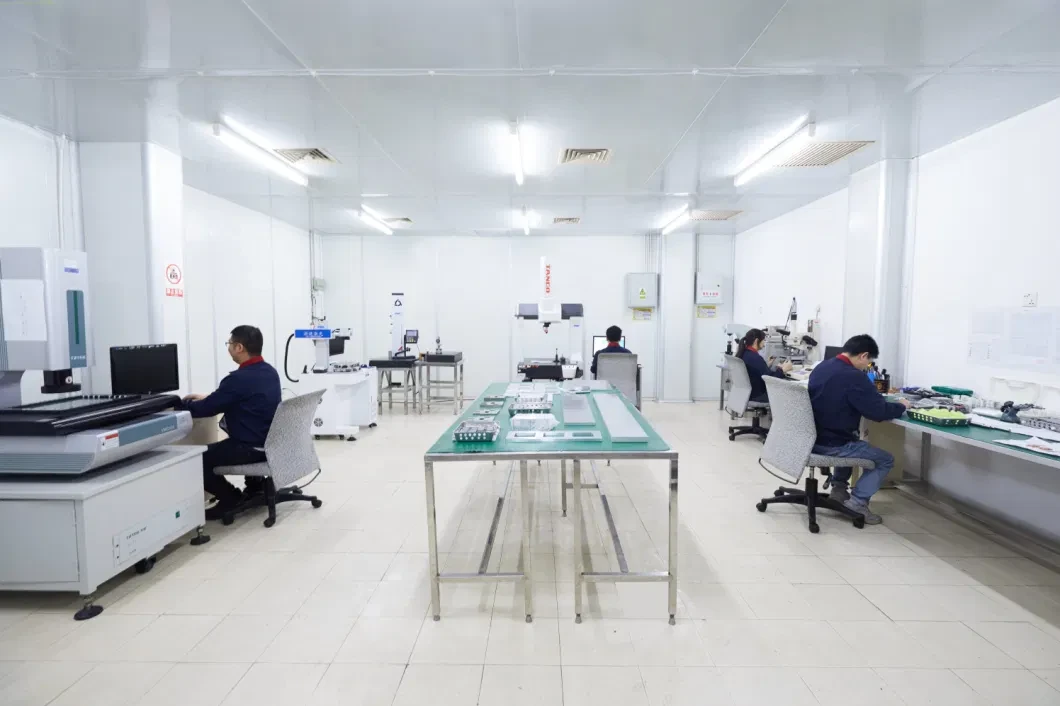

We have a 600 square meter laboratory, which is used for the research and development, testing, and optimization of various machines and related technologies.

Q: What we can do for you?
A: We are committed to providing you with advanced equipment, technical solutions, and comprehensive service support to help you improve production efficiency, reduce costs, and optimize product quality.

Q: Are you a trade company or manufacturer?
A: We are a manufacturer with independent research and development capabilities and manufacturing capabilities, but we also provide OEM and ODM services.

Q: What is your delivery date?
A: About 35 days after receipt of payment.

Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers?
A: KAIFA,HUAWEI,SAMSUNG,HIKVISION,IBM,DJI,EPSON,CETC,ZTE...

Q: Why choose you?
A: As a state-owned enterprise, we enjoy solid guarantees in terms of funding, technology, and talent. Our business is stable and able to provide customers with stable and reliable products and services in the long term. At the same time, we have excellent research and production capabilities, and are able to customize personalized technology solutions.
