Brand Name | Odseven | Model Number | ODS538 |
Type | Mini Amplifier | Place of Origin | Guangdong, China |
Product Name | Audio Power Amplifier |
Description
This incredibly small stereo
amplifier is surprisingly powerful - able to deliver 2 x
3.7W channels into 3 ohm impedance speakers. Inside the
miniature chip is a class D controller, able to run from
2.7V-5.5VDC. Since the amp is a class D, its incredibly
efficient (over 90% efficient when driving an 8Ω speaker at
over a Watt) - making it perfect for portable and
battery-powered projects. It has built in thermal and
over-current protection but we could barely tell it got
hot. This board is a welcome upgrade to basic "LM386"
amps!
The inputs of the amplifier
go through 1.0uF capacitors, so they are fully
'differential' - if you don't have differential outputs,
simply tie the R- and L- to ground. The outputs are "Bridge
Tied" - that means they connect directly to the outputs, no
connection to ground. The output is a 360KHz square wave
PWM that is then 'averaged out' by the speaker coil - the
high frequencies are not heard. All the above means that
you can't connect the output into another amplifier, it
should drive the speakers directly.

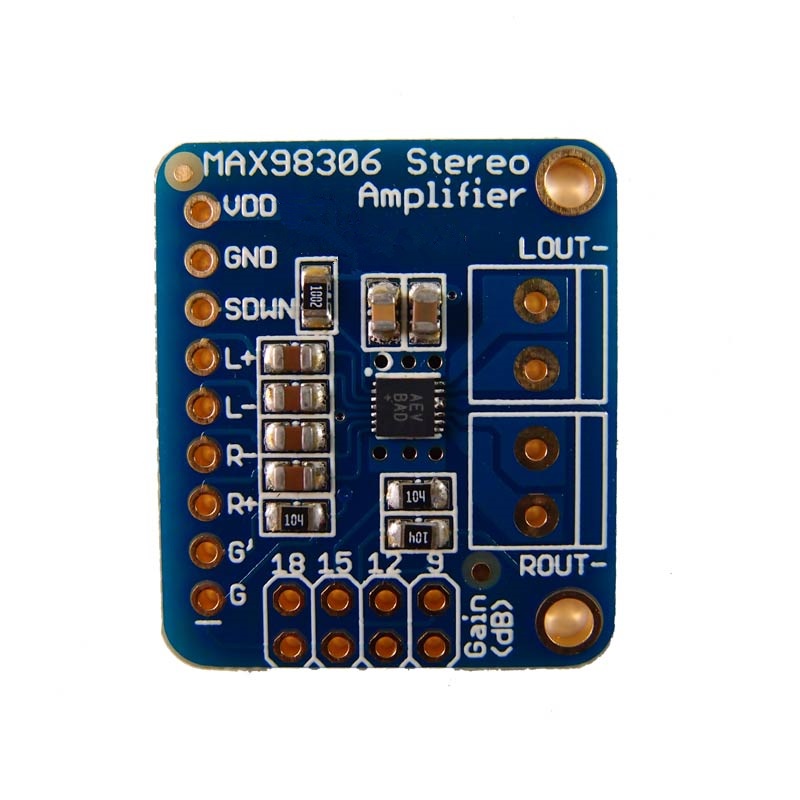

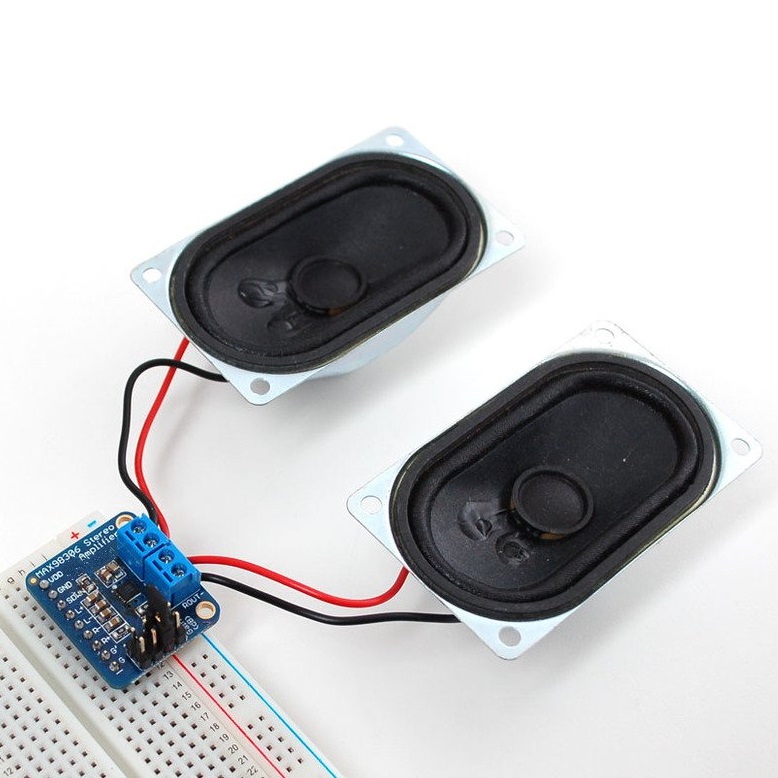

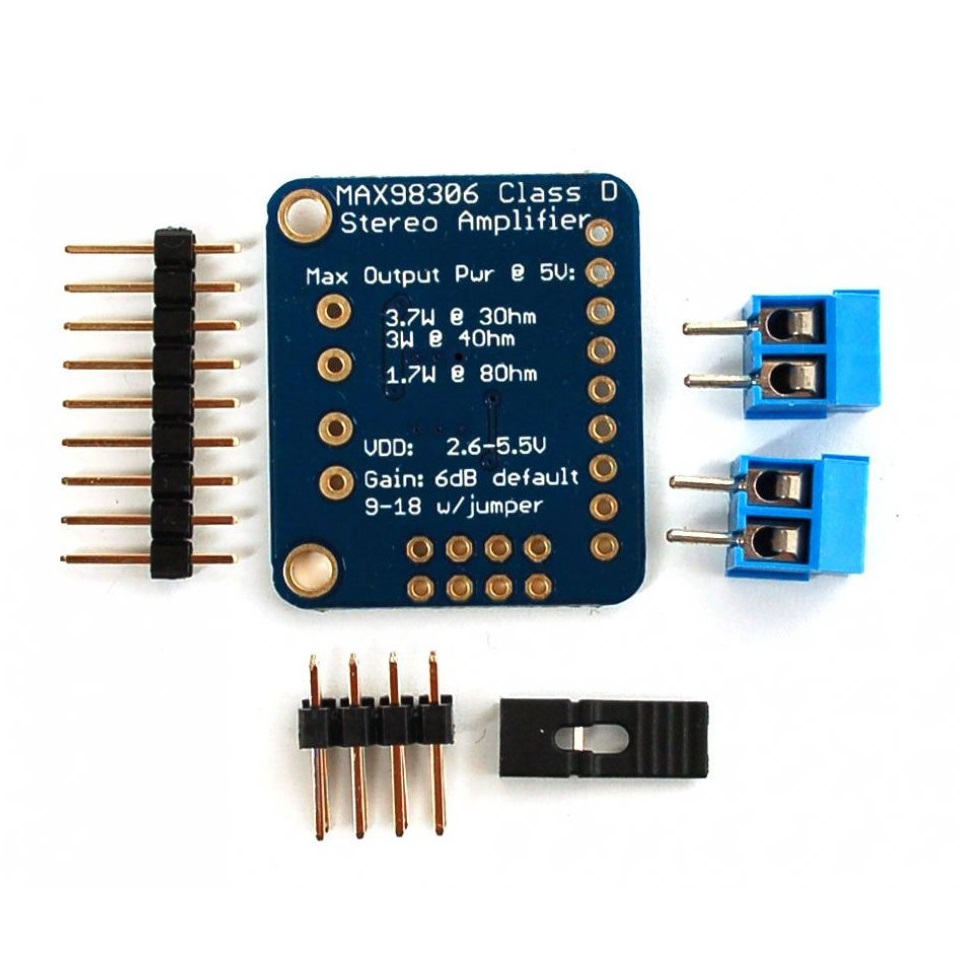

Comes with a fully assembled
and tested breakout board with 1.0uF input capacitors. We
also include header to plug it into a breadboard, 3.5mm
screw-terminal blocks so you can easily attach/detach your
speakers, and a 2x4 header + jumper to change the amplifier
gain on the fly. You will be ready to rock in 15 minutes!
Speakers are not included, use any 3ohm or greater
impedance speakers.

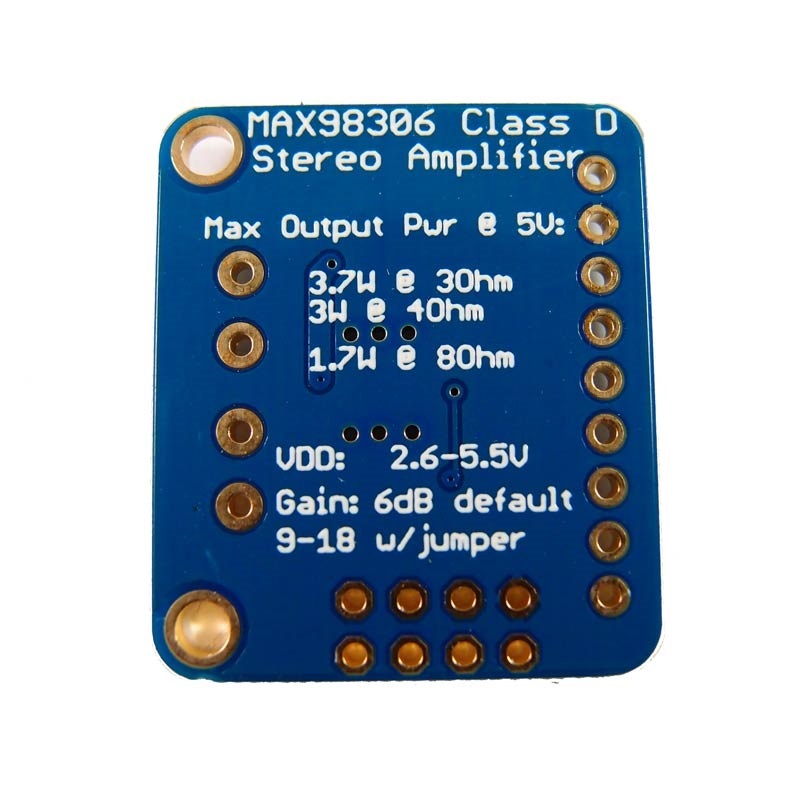

Output Power: 3.7W at 3Ω,
10% THD, 1.7W at 8Ω, 10% THD, with 5V Supply
Passes EMI limit unfiltered
with up to 12 inches (30 cm) of speaker cable
High 83dB PSRR at
217Hz
Spread-Spectrum Modulation
and Active Emissions Limiting
Five pin-selectable gains:
6dB, 9dB, 12dB, 15dB and 18dB. Select with a jumper or by
setting the G and G' breakout pins (see schematic for
breakout board showing gain pin settings for
details)
Excellent click-and-pop
suppression
Thermal and
short-circuit/over-current protection
Low current draw: 2mA
quiescent and 10uA in shutdown mode
Note: The terminal blocks
included with your product may be blue or black.
TECHNICAL
DETAILS
Dimensions (without 0.1"
header):
Length:28.25mm/1.11in
Width:24.15mm/0.95in
Height:3.03mm/0.12in
Weight:2.33g
