NSPV NEHP01 solar PV junction box IP68 waterproof

FOB Price 2.7 - 3.2 USD / sets

Quantity	1000 - 10000
Price	3

MOQ	1000 sets
Port	shenzhen
Packaging	Standard
Lead Time	25 working days

Contact Now

Product Details

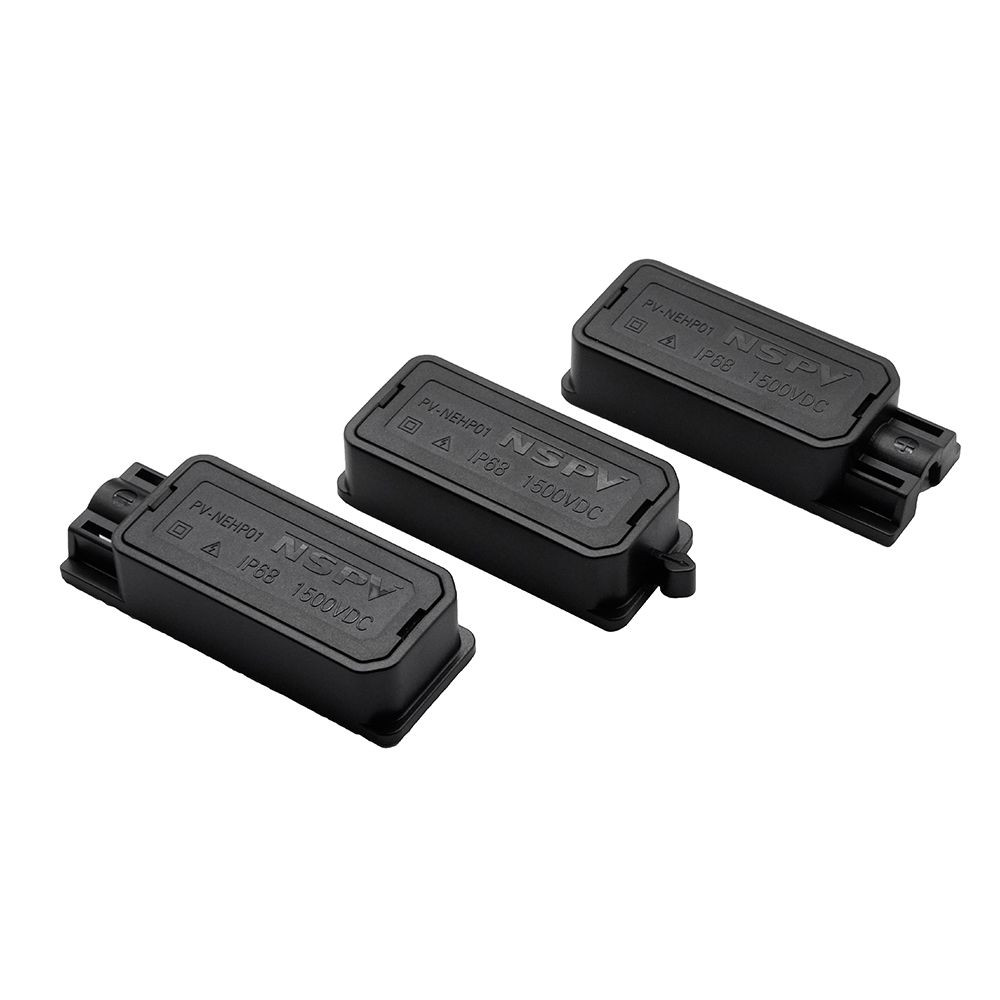

NSPV Solar PV NSHP01 Junction Box: Advantages and Overview

Product Introduction

The NSPV Solar PV NSHP01 Junction Box is a high-performance electrical component designed specifically for solar photovoltaic (PV) systems. It serves as a critical interface for connecting solar panels, ensuring efficient and safe transmission of electrical power.

Product Overview

The NSHP01 Junction Box is engineered with advanced materials and technologies to meet the rigorous demands of solar energy applications. Its compact design, coupled with robust construction, makes it suitable for both residential and commercial solar installations. The box is available in multiple variants (NSHP01-N, NSHP01-M, NSHP01-P) to cater to diverse system requirements.

Product Features

High Safety Standards: Rated at Safety Degree II, the NSHP01 Junction Box ensures reliable operation under various environmental conditions.
Superior Connection: Utilizes soldering for bus ribbon connections, ensuring low contact resistance (≤ 0.25mΩ) and high conductivity.
Durable Construction: Made from PPE/PA materials with a flame class of UL94-V0, providing excellent resistance to fire and heat.
Wide Temperature Range: Operates efficiently in ambient temperatures ranging from -40℃ to +85℃, making it suitable for extreme climates.

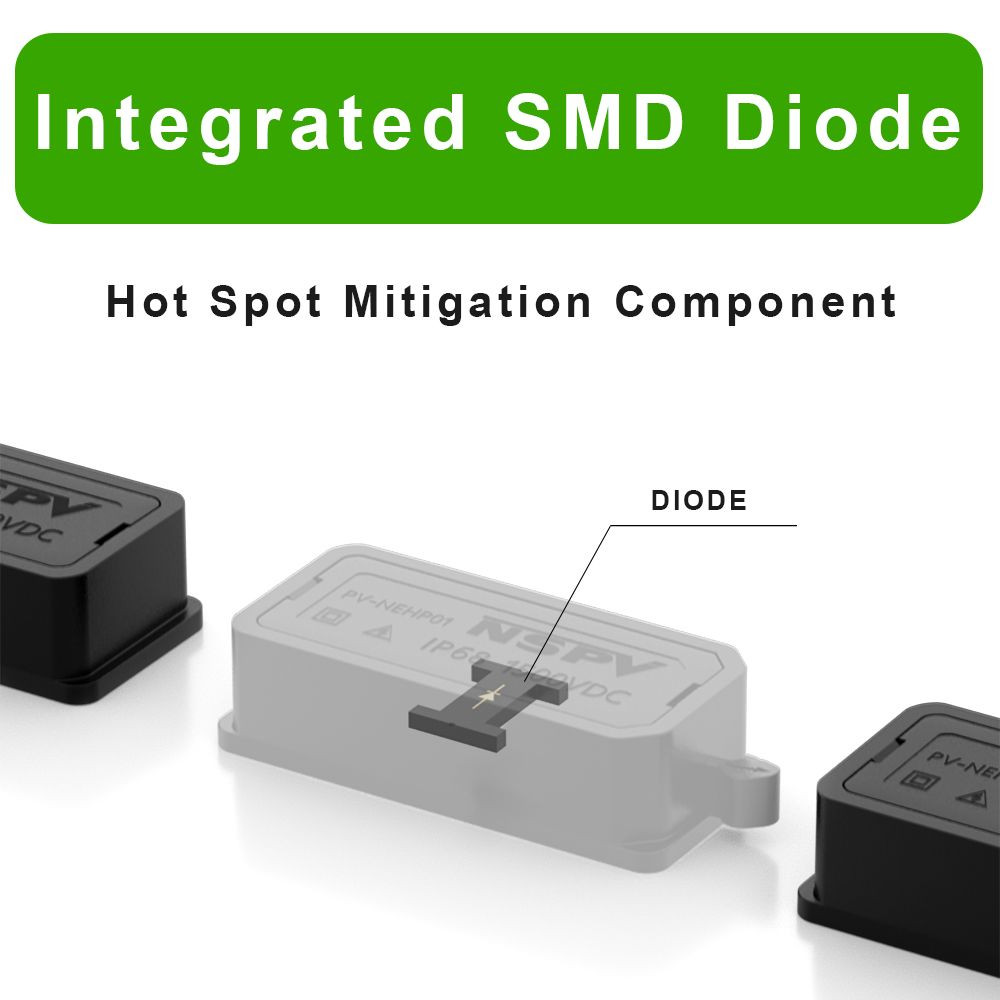

High Voltage and Current Rating: Withstands voltages up to 1500VDC and currents up to 50A (with diode), ensuring compatibility with high-power solar arrays.

Advantages

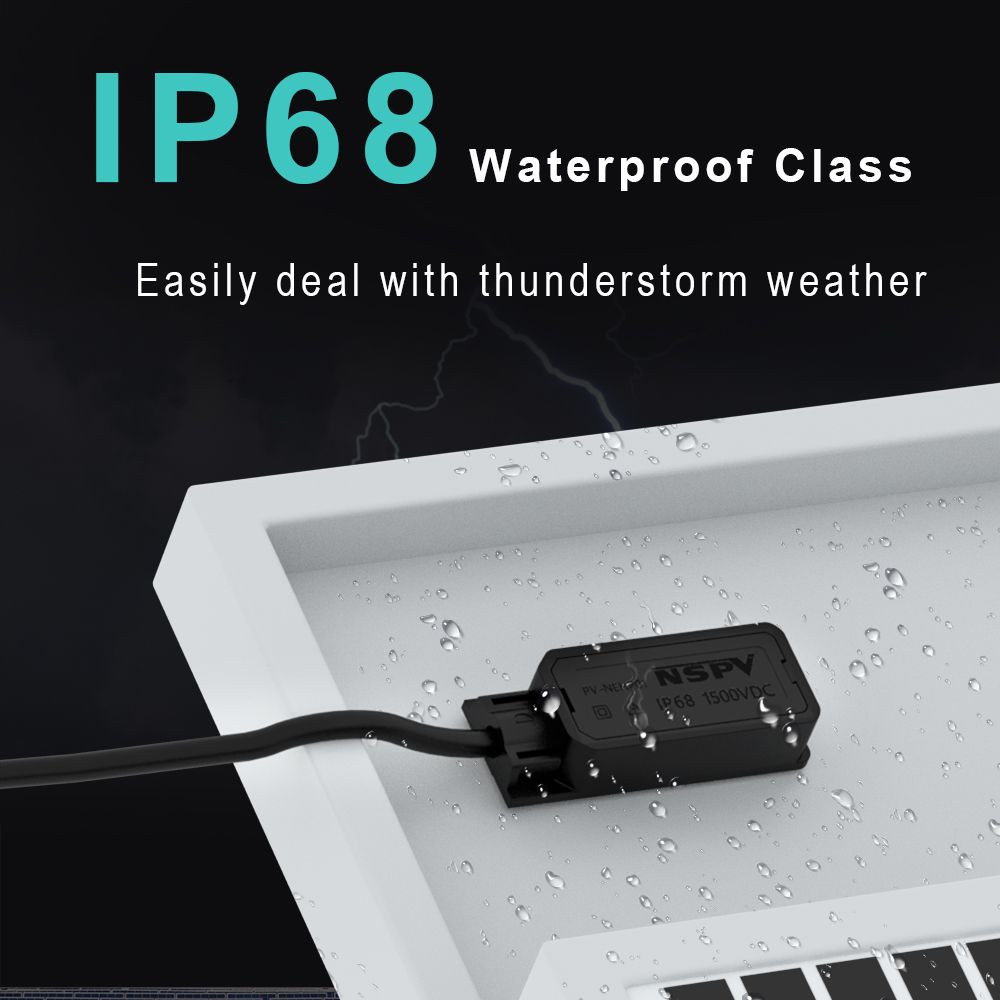

Enhanced Safety: The IP65/IP68 (in potting) protection rating safeguards against dust and water ingress, enhancing system longevity and reducing maintenance costs.

Efficient Power Transmission: Low contact resistance minimizes power loss, maximizing the energy output of solar PV systems.

Versatile Application: Suitable for a wide range of solar installations, from small residential systems to large commercial projects.

Easy Installation: The compact and lightweight design simplifies installation, reducing labor costs and time.

Long-Term Reliability: The durable construction and high-quality materials ensure long-term performance and reliability, even in harsh environments.

FAQs

Q: What is the maximum current rating of the NSHP01 Junction Box?
A: The maximum current rating is 50A (with diode).

Q: What is the operating temperature range?
A: The operating temperature range is from -40℃ to +85℃.

Q: Is the junction box waterproof?
A: Yes, it has an IP65/IP68 (in potting) protection rating, making it waterproof and dustproof.

Q: What materials are used in the construction of the junction box?
A: The junction box is made from PPE/PA materials.

Q: Can the NSHP01 Junction Box be used in high-voltage solar systems?
A: Yes, it can withstand voltages up to 1500VDC, making it suitable for high-voltage solar systems.

Application

The NSPV Solar PV NSHP01 Junction Box is widely used in solar photovoltaic systems for residential, commercial, and industrial applications. Its high safety standards, efficient power transmission, and versatile design make it an ideal choice for connecting solar panels and ensuring reliable operation of solar energy systems.
