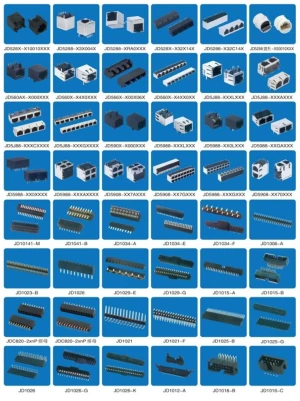

Network Jacks Pin Header Female Header Bar Connectors JDXX0010XXX JDXX004X

Product Details

A connector is a mechanical and electrical connecting component used to bridge circuits, realize quick plug-in connection and disconnection between wires, cables, PCBs and electronic devices. It ensures stable transmission of electric current, signals and data, widely applied in consumer electronics, new energy, automotive, industrial control and communication equipment.

Connectors

Connectors, also known as electrical connectors or plugs & sockets, are indispensable basic passive components in the electronic industry.

Core Functions

Establish reliable electrical continuity for power supply, analog/digital signal and high-speed data transmission;

Allow convenient assembly, maintenance and replacement through plug-and-play design;

Provide protection against vibration, dust, moisture and electromagnetic interference according to different grades.

Main Classification

By application: Automotive connectors, battery connectors, board-to-board connectors, wire-to-board connectors, wire-to-wire connectors, RF coaxial connectors;

By pitch: 0.8mm, 1.0mm, 1.25mm, 2.0mm, 2.54mm pitch connectors;

By performance: High-current power connectors, high-frequency high-speed signal connectors, waterproof IP67/IP68 connectors.

Application Fields

New energy vehicles, energy storage systems, photovoltaic inverters, industrial automation equipment, smart home appliances, medical devices, servers, LED lighting and aerospace electronics.

Advantages of Standard Connectors

Stable contact resistance, high plugging durability, good temperature resistance, compact structure, strong compatibility and cost-effective mass production.

关键词汇备查（采购常用）

male connector 公头

female connector 母座

pin 针脚

housing 胶壳

terminal 端子

crimp 压接

waterproof rating 防护等级

mating cycles 插拔寿命

contact resistance 接触电阻
