Narrow-linewidth fiber lasers for optic fiber sensing

Contact Now

Product Details

Narrow-linewidth Fiber Laser

Narrow-linewidth fiber lasers are specially designed lasers with extremely narrow spectral linewidths. Spectral linewidth refers to the range of frequency differences in an optical signal, typically expressed as bandwidth per unit frequency. The spectral linewidth of narrow-linewidth fiber lasers is usually between several hundred kilohertz and several megahertz, much narrower than that of ordinary lasers. These specially designed lasers play a crucial role in many fields, including optical communication, fiber optic sensing, and spectral analysis.

Features

Narrow-linewidth 3kHz
Power&spectrum stability
Module&benchtop

Applications

Optical fiber sensing
Laser seed source
Nonlinear optical research

Specification

Parameters	Unit	Value
Operating wavelength(Can be customized)	nm	1550±1
Spectral linewidth	kHz	＜30KHz
Output power	mW	500
polarization extinction ratio	dB	≥23dB
Output Isolation Degree	dB	≥40
Short-term stability（15min）	dB	≤0.02
Long-term Stability(8 Hours)	dB	≤0.05
Fiber Type	-	PM1550
Type of optical fiber output end	-	FC/APC
Operating Temperature	°C	-5 ~ +55
Storage temperature	°C	-40 ~ +85
Weight	Kg	≤1
Power supply voltage	V	DC 5
Power supply voltage	V	AC 220

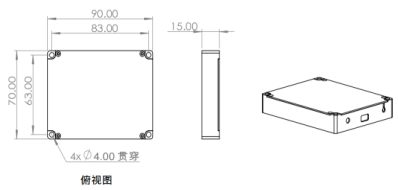

Size	mm	90x70x15mm（Module）

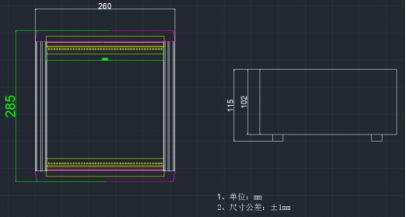

Size	mm	260×285×115（Benchtop）
Communication Protocol	RS232	Communication Protocol
