MBR Membrane

Port

JNPT

Contact Now

Quick Details (View All)

Membrane Type	Hollow Fiber / Outside-In	Material	PVDF (Polyvinylidene Fluoride)
Nominal Pore Size	~0.1 μm	Operating MLSS	8,000–12,000 mg/L
Flux Rate	15–30 LMH (depending on quality)

Product Details

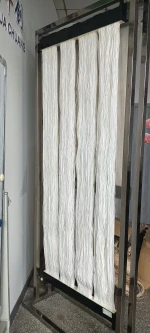

MBR Membrane Modules

Product Code: [insert SKU]
Application: Advanced Biological Wastewater Treatment in STP, ETP, ZLD, and Reuse Systems

Product Overview:

Our MBR (Membrane Bioreactor) Membrane Modules combine biological treatment with advanced membrane filtration, delivering high-quality, pathogen-free effluent ideal for reuse and recycling. Manufactured with advanced PVDF hollow fiber membranes, these modules offer exceptional strength, high permeability, and chemical resistance, making them ideal for a wide range of municipal and industrial applications.

The MBR membrane replaces conventional secondary clarifiers and media filtration, enabling compact plant design with superior effluent quality, suitable even for RO feed in ZLD systems.

Key Features:

✅ High Filtration Efficiency: Pore size ~0.1 μm for excellent TSS and pathogen removal
✅ Durable PVDF Construction: Outstanding mechanical and chemical stability
✅ Compact & Modular: Space-saving design with easy integration into STPs/ETPs
✅ Consistent Permeate Quality: Ideal for discharge, gardening, or tertiary treatment
✅ Low Sludge Production: Higher MLSS operation (8,000–12,000 mg/L)
✅ Backwashable & Chemically Cleanable: For extended membrane life

Technical Specifications:

Parameter Specification


Membrane Type	Hollow Fiber / Outside-In
Material	PVDF (Polyvinylidene Fluoride)
Nominal Pore Size	~0.1 μm
Operating MLSS	8,000–12,000 mg/L
Flux Rate	15–30 LMH (depending on quality)
pH Tolerance	2 – 10 (cleaning: 1 – 12)
Operating Temperature	5 – 45°C
Air Scouring Flow Rate	0.15 – 0.3 Nm³/h/m²
Typical Membrane Area	8 m² – 40 m² per module (customizable)
Cleaning Method	Chemical Cleaning (CIP/Recovery)
Life Expectancy	4–6 years (with proper maintenance)
