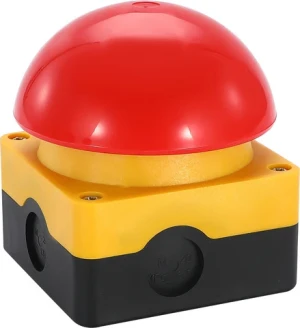

manufacturers price Hand-operated and Foot-operated switch pull reset (self locking) Push Button switch

Name: manufacturers price Hand-operated and Foot-operated switch pull reset (self locking) Push Button switch
Brand: Yueqing Hekao Electric Co., Ltd.
SKU: Tradewheel_2666192
Price: 12.63 USD
Availability: InStock

FOB Price 12.63 - 15.54 USD / pieces

Contact Now

Quick Details (View All)

Whether the smart	NO	Place of Origin	Zhejiang, China
Brand Name	HK	Model Number	HK-PS
Protection Level	IP65	Max. Current	10A
Max. Voltage	500V	LED	NO
IP level	IP65	Switch Combination	1NO1NC
Uimp	6kv	Color	Red green black yellow

Product Details

Product Overview

The product can be used as a push-button switch or an emergency stop switch.

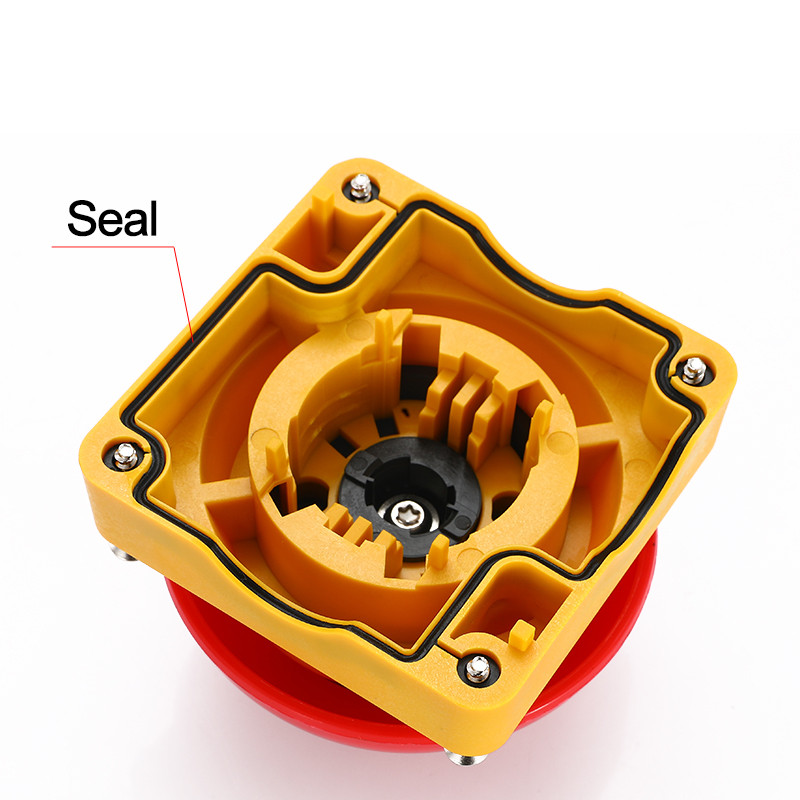

It features built-in seals, achieving an IP65 protection rating, making it suitable for various environments such as factory workshops, large supermarkets, and so on.

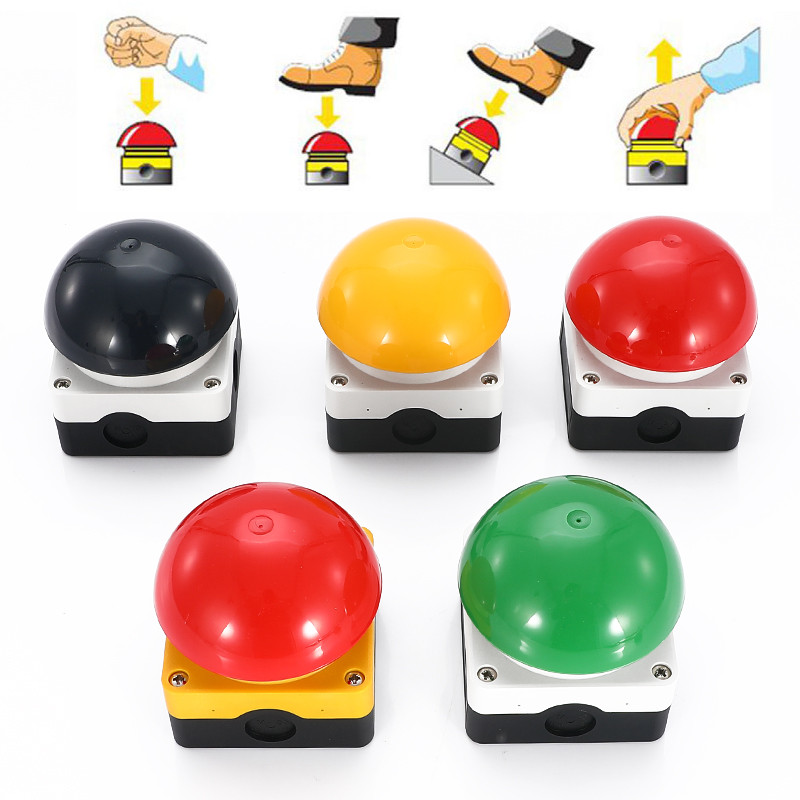

Constructed with high-performance materials, it can be operated by hand tapping, foot pressing, or other body parts, and is also resistant to rinsing with a high-pressure washer.

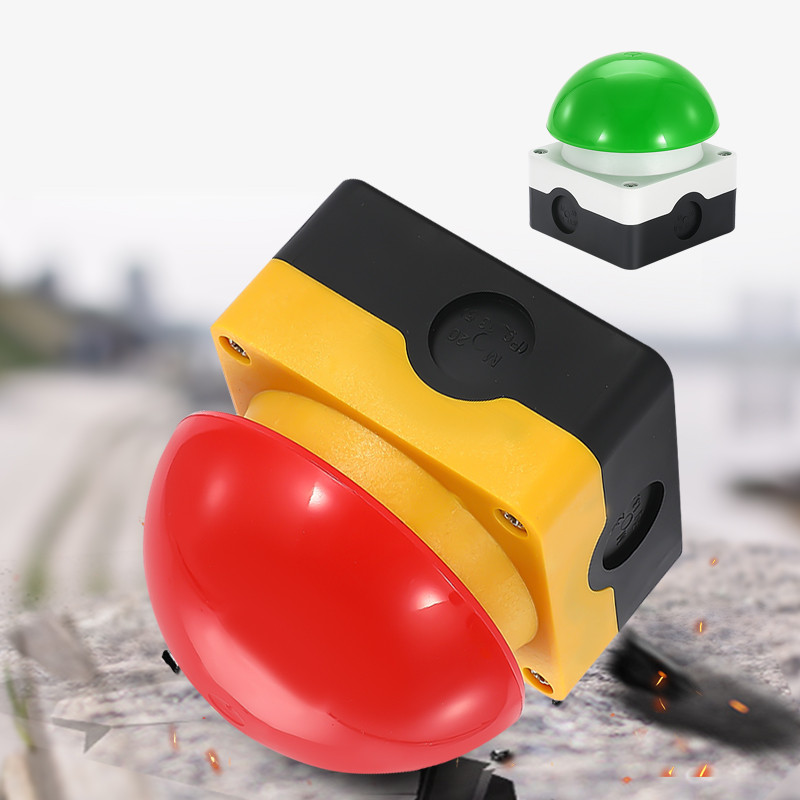

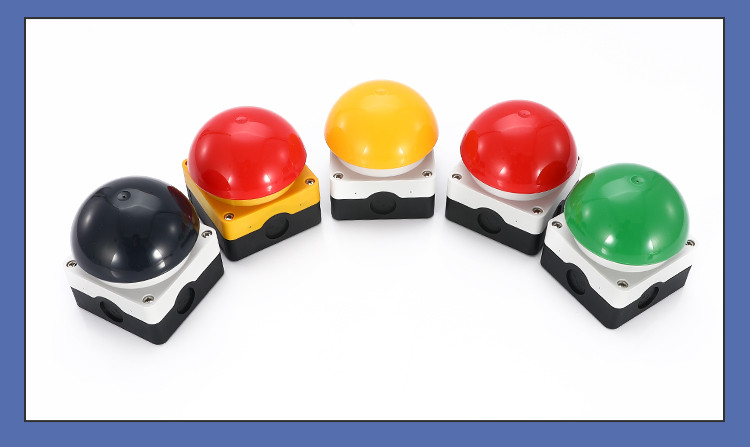

The product is available in multiple colors for easy differentiation.

Technical parameters

Ui: 500V		Uimp: 6kV		Ith: 10A
AC-15	Ue (VAC)	230	400	500	600
AC-15	Ie (A)	6	4	2	1
DC-13	Ue (VDC)	24	110	220	250
DC-13	Ie (A)	3	0.6	0.3	1

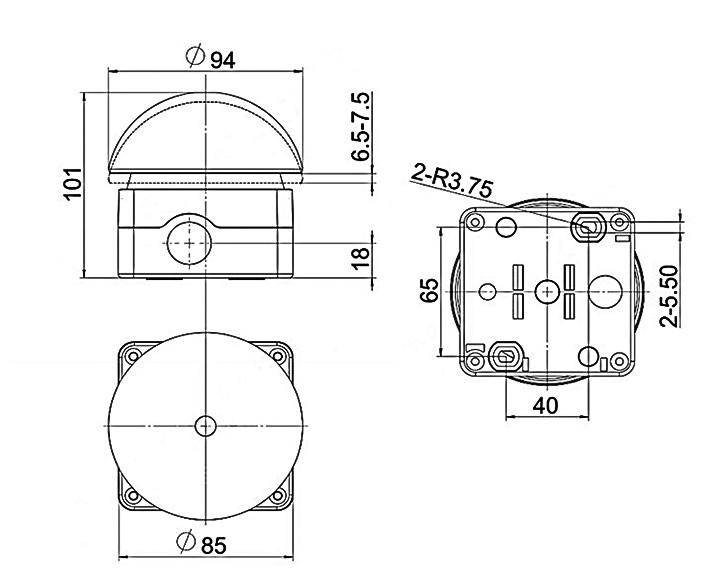

Dimension figure

Product model description

HK	RS	1	0		R
1	2	3	4	5	6
1.	Brand
	Product type	RS: Reset switch
		PS: Pull reset (self locking) switch
3.	NC /NO contact It can be configured with 1 to 3 NC/NO contacts.	0: NC
4.		1: NO
5.		Null: No contact
6.	Color	R:Red
		B:Black
		G:Green
		Y:Yellow
E.g.: HK-RS10R: Reset switch, 1NC 1NO red.

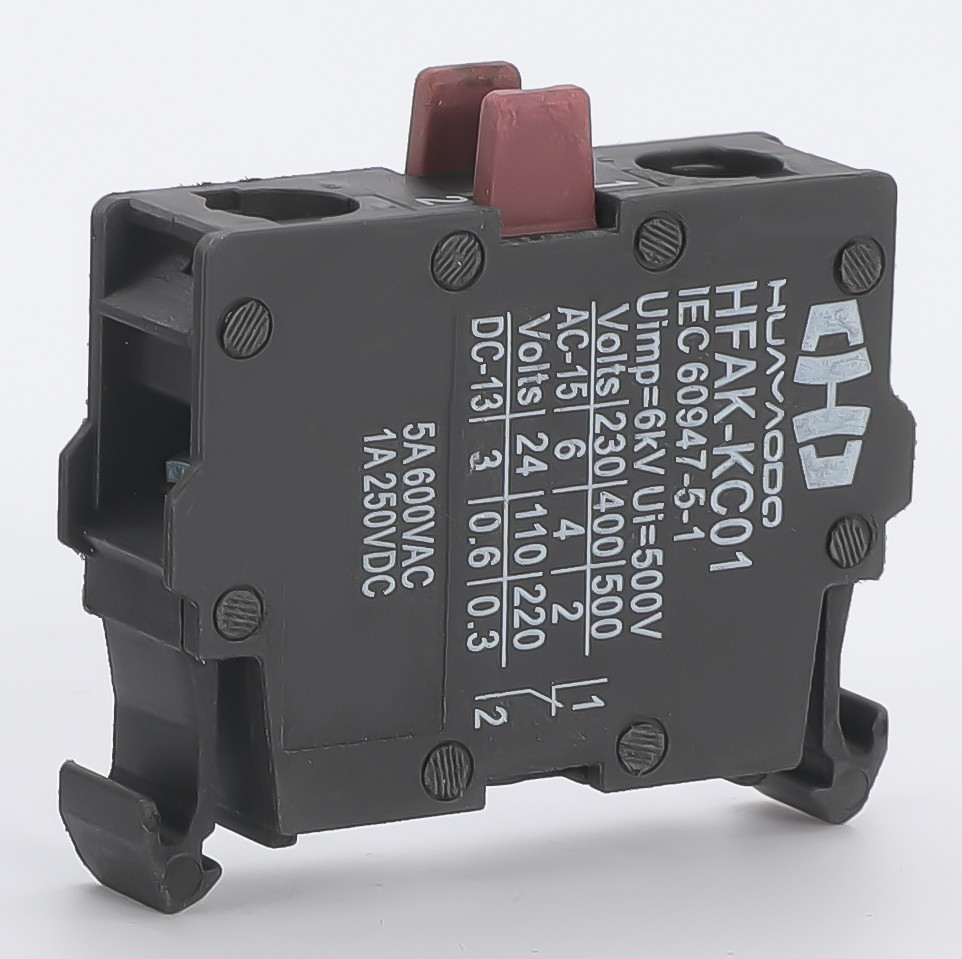

Normally closed contact

Normally open contact

The contact base has three positions, capable of accommodating up to 3 contacts. You can choose between normally open and normally
closed contacts based on your requirements.

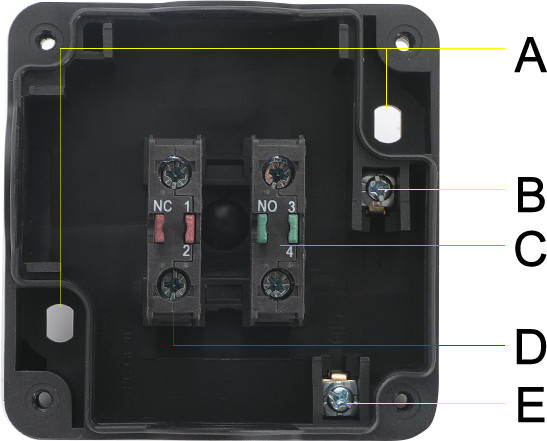

A: Installation holes

B: Zero termianal

C: Normally open contact

D: Normally closed contact

E:Ground terminal

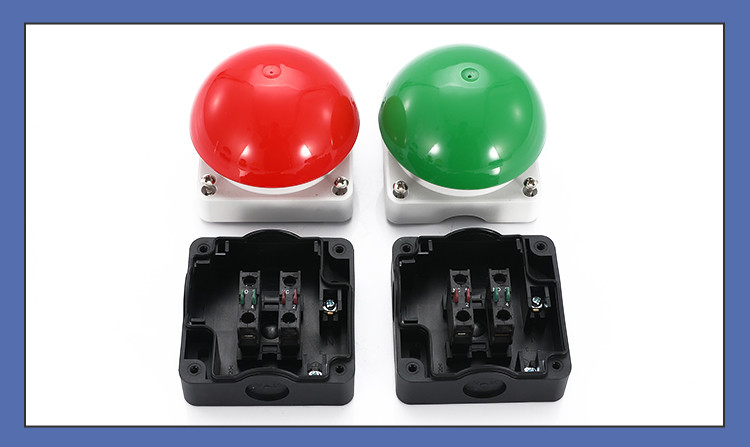

Product real picture
