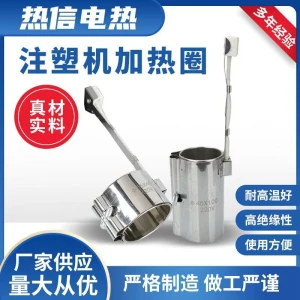

Injection Molding Machine Band Heater / Barrel Heating Ring

Product Details

This Injection Molding Machine Band Heater (heating ring) is a high-performance electric heating element designed for injection molding machines, extruders, and other plastic processing equipment. It is widely used to heat the barrel/nozzle of plastic machinery, ensuring stable and uniform temperature control during the plastic melting process.

Core Performance Features:

- Made of high-quality stainless steel sheathing and high-temperature resistant insulating materials (mica), offering excellent heat transfer efficiency, high insulation, and long service life.

- Working temperature up to 300-500℃, with good heat resistance and corrosion resistance, suitable for continuous high-temperature operation.

- Customizable specifications: diameter (Φ), height (length), voltage (110V/220V/380V), power, and terminal type, to fit different injection molding machine models and barrels.

- Easy installation and maintenance, with fast heating response and uniform temperature distribution, effectively preventing material degradation and ensuring consistent product quality.

- Robust construction with tight clamping design, ensuring stable contact with the barrel and minimizing heat loss.

How to Use:

1. select the correct heater size (diameter, height, voltage, power) according to the barrel specifications of your injection molding machine.

2. Clean the installation surface of the barrel to remove any dirt or residue.

3. Wrap the heater around the barrel and tighten the clamping bolts to ensure close contact between the heater and the barrel surface.

4. Connect the power terminals to the machine’s temperature control system, ensuring correct wiring and insulation.

5. Set the required temperature parameters on the machine controller; the heater will automatically heat and maintain the barrel temperature for plastic processing.

Applications:

Ideal for injection molding machines, extruders, blow molding machines, and other plastic processing equipment, also suitable for heating pipes, dies, and other cylindrical parts in industrial heating systems.
