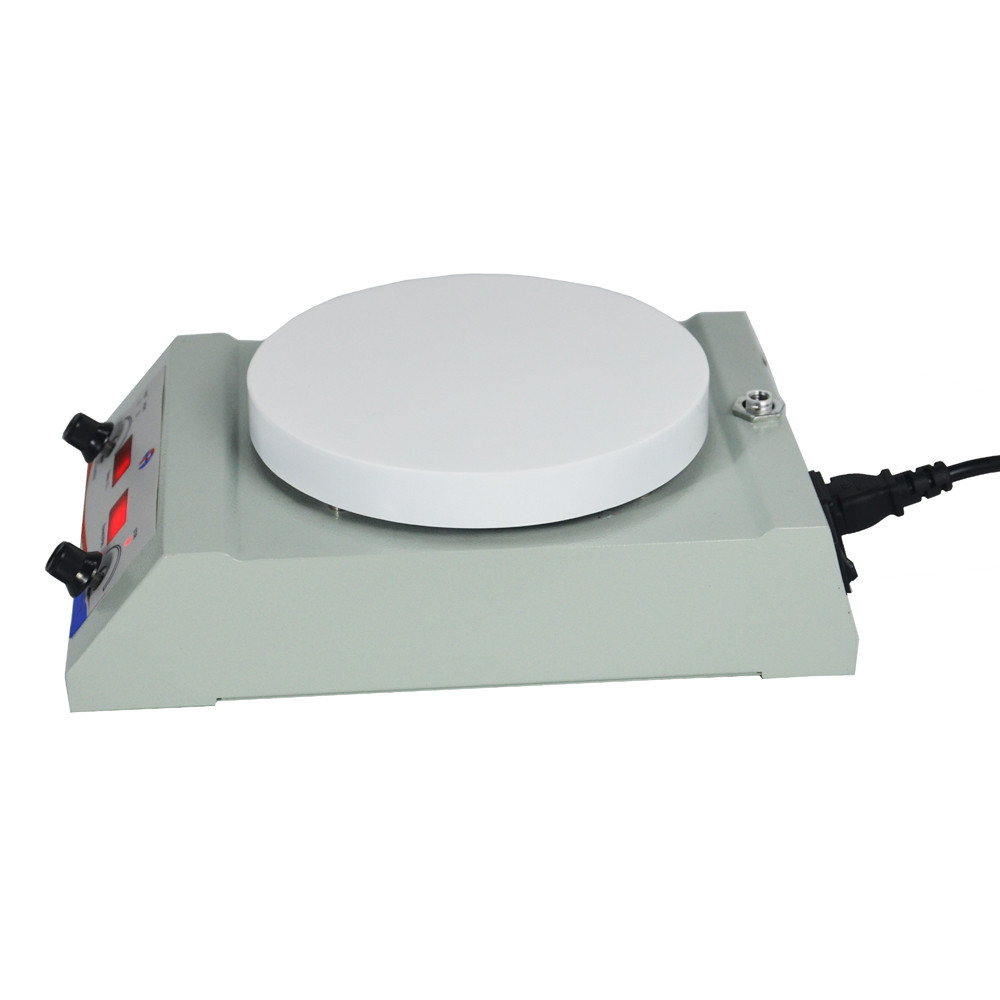

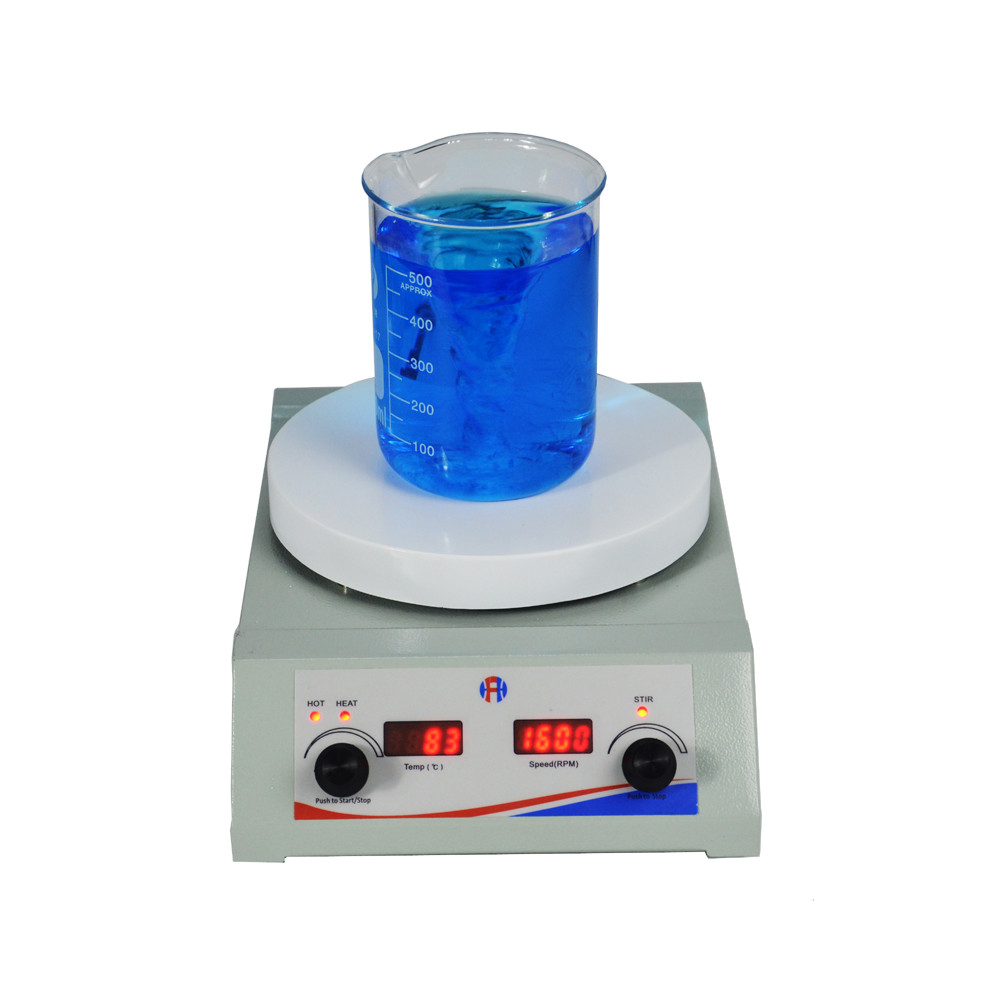

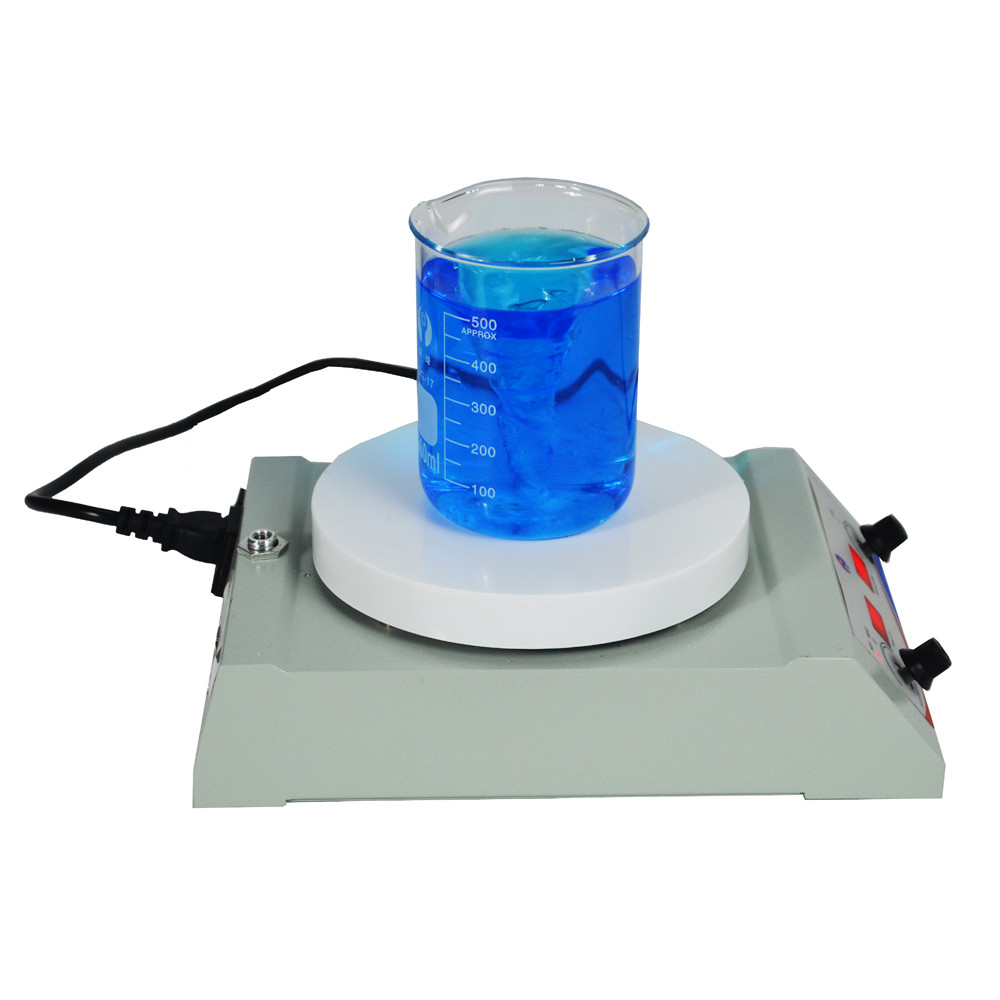

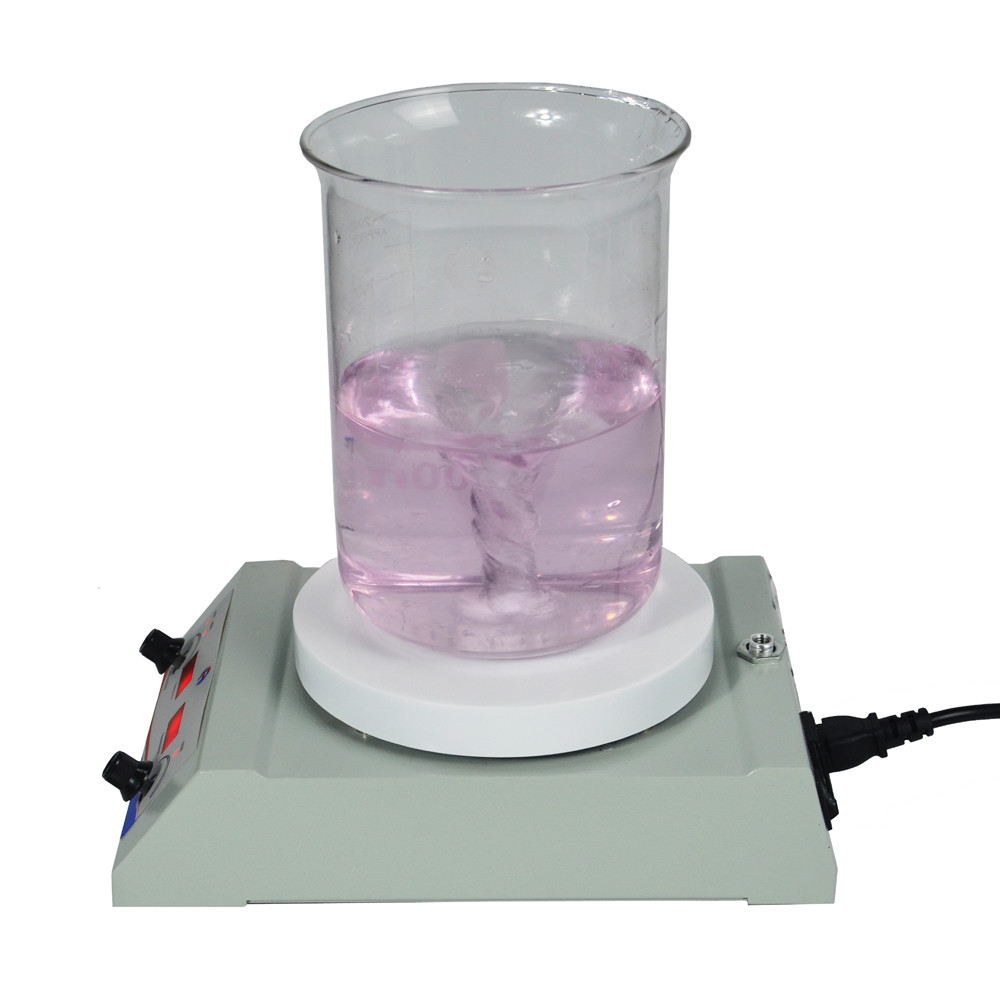

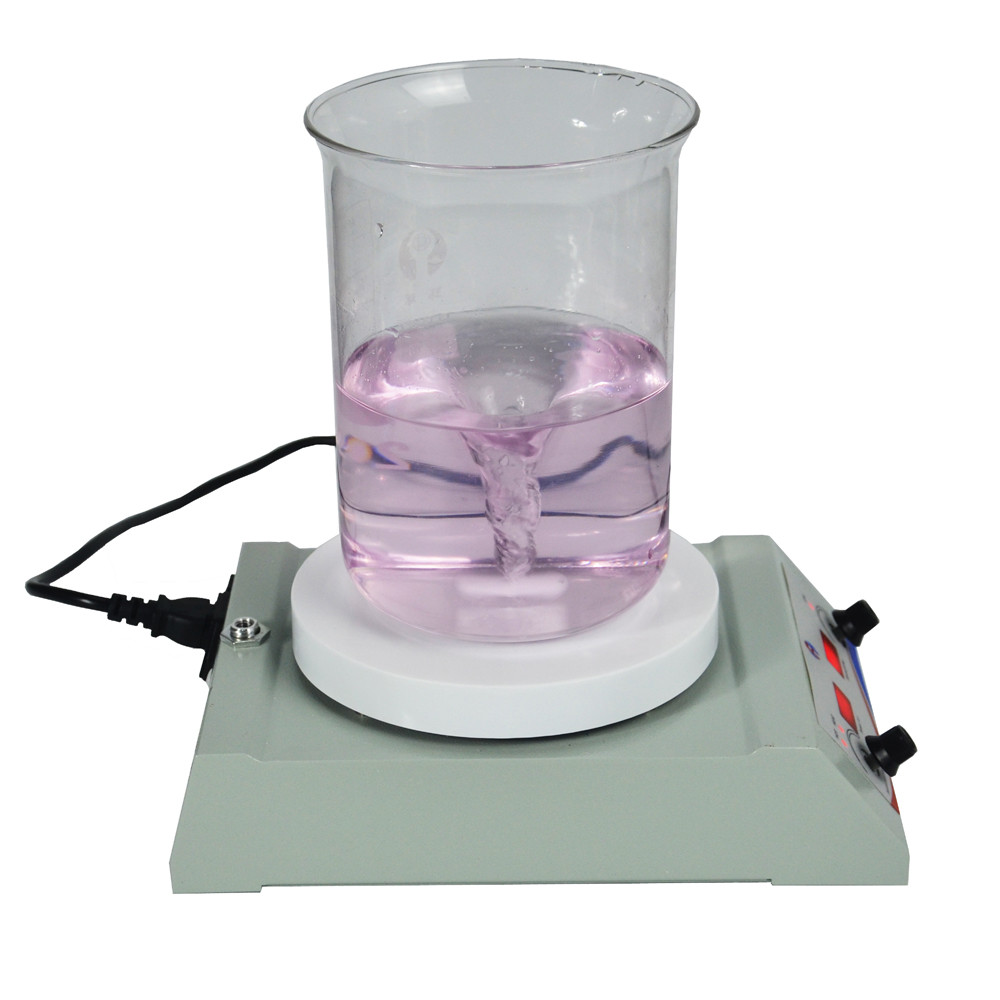

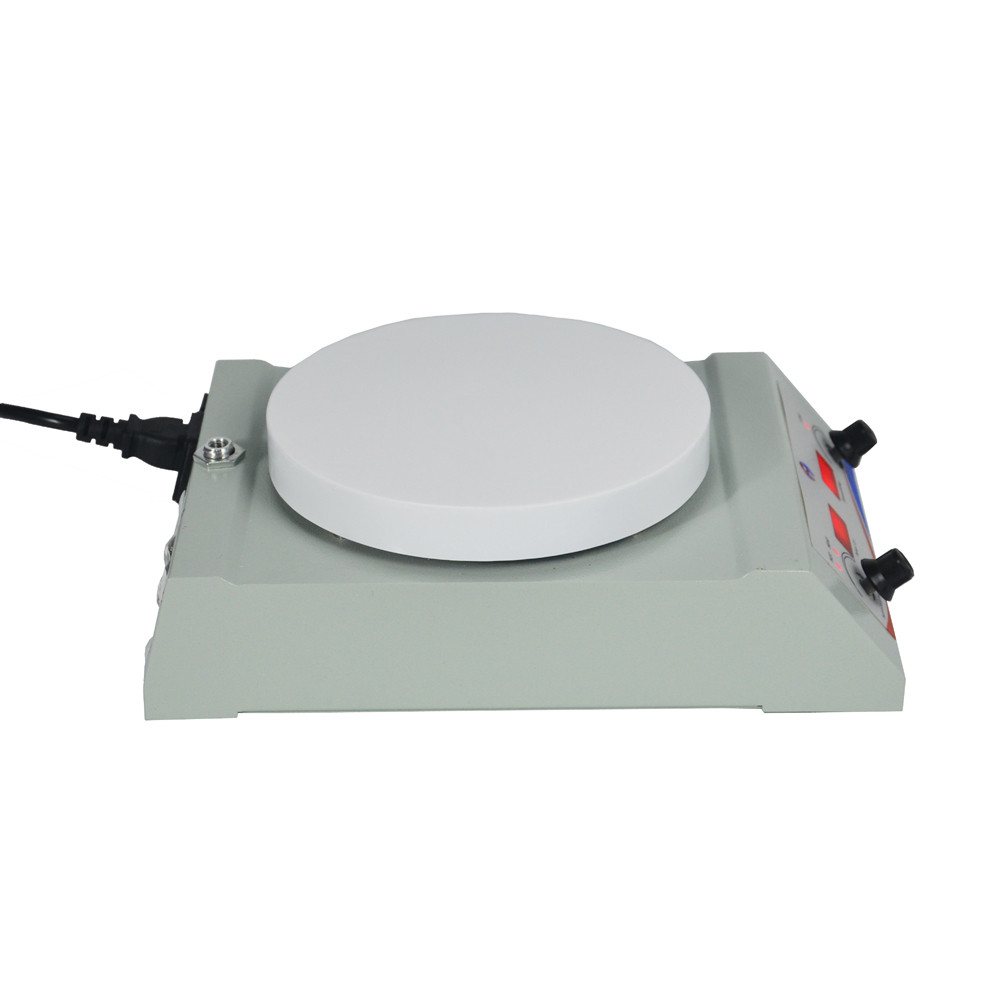

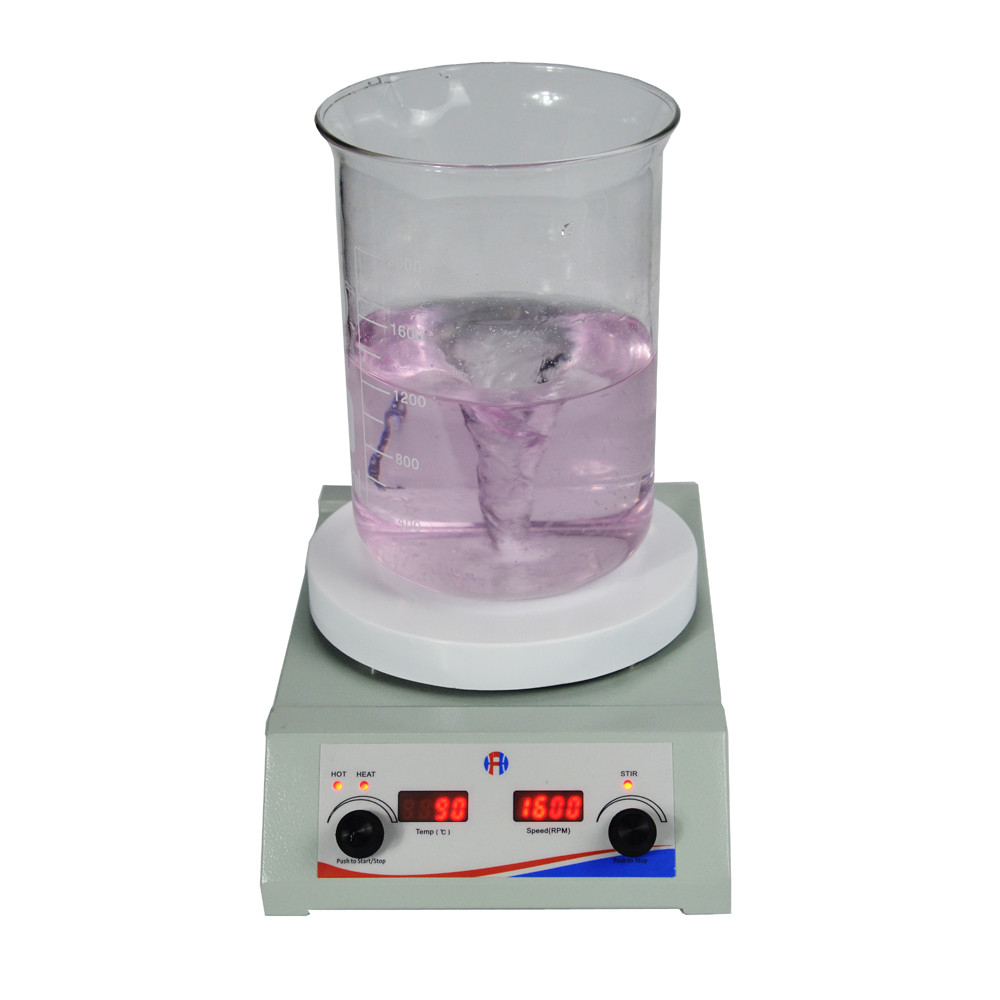

hotplate stirrer magnetic laboratory digital display magnetic stirrer heater

ITEM NO.: HSHS-178R

DESCRIPTION: 7 inch Ceramic coated Stainless steel,Stirrer Hotplates,D178MM, Dual Digital displays of Heating and Stirring,300°C, +/-0.5 °C uniformity,Brushless motor, not include any accessories

Model	HSHS-127R	HSHS-135R	HSHS-153R	HSHS-178R	HSHS-127	HSHS-135	HSHS-153	HSHS-178
Display	LED	LED	LED	LED	LED	LED	LED	LED
Plate material	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel
Plate dimensions	5" (diameter 127mm)	5.3" (diameter 135mm)	6" (diameter 153mm)	7" (diameter 178mm)	127x 127 mm	135x 135 mm	153 x 153 mm	7"(178 x 178 mm)
Hot warning	yes	yes	yes	yes	yes	yes	yes	yes
Temperature setting range	35-300°C	35-300°C	35-300°C	35-300°C	35-300°C	35-300°C	35-300°C	35-300°C
Heating range for plate	35-300°C	35-300°C	35-300°C	35-300°C	35-300°C	35-300°C	35-300°C	35-300°C
Heating range for solution	35.0-200.0°C	35.0-200.0°C	35.0-200.0°C	35.0-200.0°C	35.0-200.0°C	35.0-200.0°C	35.0-200.0°C	35.0-200.0°C
External temperature sensor	PT 1000	PT 1000	PT 1000	PT 1000	PT 1000	PT 1000	PT 1000	PT 1000
Heating setting resolution of plate	1 °C	1 °C	1 °C	1 °C	1 °C	1 °C	1 °C	1 °C
Heating setting resolution of solution	0.1 °C	0.1 °C	0.1 °C	0.1 °C	0.1 °C	0.1 °C	0.1 °C	0.1 °C
Temperature stability	1 °C	1 °C	1 °C	1 °C	1 °C	1 °C	1 °C	1 °C
Heat control accuracy with PT 1000 (500ml H2O in 600ml beaker, 30mm stirring bar, 600rpm, 50°C)	+/-0.5 °C	+/-0.5 °C	+/-0.5 °C	+/-0.5 °C	+/-0.5 °C	+/-0.5 °C	+/-0.5 °C	+/-0.5 °C
Capable calibration on external probe	yes	yes	yes	yes	yes	yes	yes	yes
Number of stirring positions	1	1	1	1	1	1	1	1
Stirring quantity max. per stirring position (H2O)	3L	3L	5L	10L	3L	3L	5L	10L
Speed range (rpm)	150-1600	150-1600	150-1600	150-1600	150-1600	150-1600	150-1600	150-1600
Stir Bar Length Range	25-60mm	25-60mm	25-60mm	25-60mm	25-60mm	25-60mm	25-60mm	25-60mm
Overheat warning in plate and medium detection (Error 1 and Error 2)	yes	yes	yes	yes	yes	yes	yes	yes
Dimensions (WxDxH)mm	163x270x100	163x270x100	192X293X100	192X293X100	163x270x100	163x270x100	192X293X100	192X293X100
Weight	2.07 Kg	2.09 Kg	2.35 Kg	2.68 Kg	2.1 Kg	2.13 Kg	2.37 Kg	2.73 Kg
Operation ambient temperature	5 - 40 °C	5 - 40 °C	5 - 40 °C	5 - 40 °C	5 - 40 °C	5 - 40 °C	5 - 40 °C	5 - 40 °C
Operation relative humidity	80%	80%	80%	80%	80%	80%	80%	80%
Protection class according to DIN EN 60529	IP 21	IP 21	IP 21	IP 21	IP 21	IP 21	IP 21	IP 21
Voltage	110-130V/ 200-240V	110-130V/ 200-240V	110-130V/ 200-240V	110-130V/ 200-240V	110-130V/ 200-240V	110-130V/ 200-240V	110-130V/ 200-240V	110-130V/ 200-240V
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Power	400 W	500 W	700 W	900 W	400 W	500 W	700 W	900 W
