High quality high reliability 1U 19 inch 16E1 24 GE 2 Service slot PTN/MSAP/IPRAN Similar to SDH MUX

Name: High quality high reliability 1U 19 inch 16E1 24 GE 2 Service slot PTN/MSAP/IPRAN Similar to SDH MUX
Brand: Beijing Raytrans Digital Technology Co., Ltd.
SKU: Tradewheel_2772206
Price: 4590.5 USD
Availability: InStock

FOB Price 4590.5 - 4590.5 USD / pieces

Contact Now

Quick Details (View All)

Model Number	IPA6000-2	Type	Other
Place of Origin	China	Brand Name	IDM
Warranty Time	1~3 years	Network	Wired LAN

Product Details

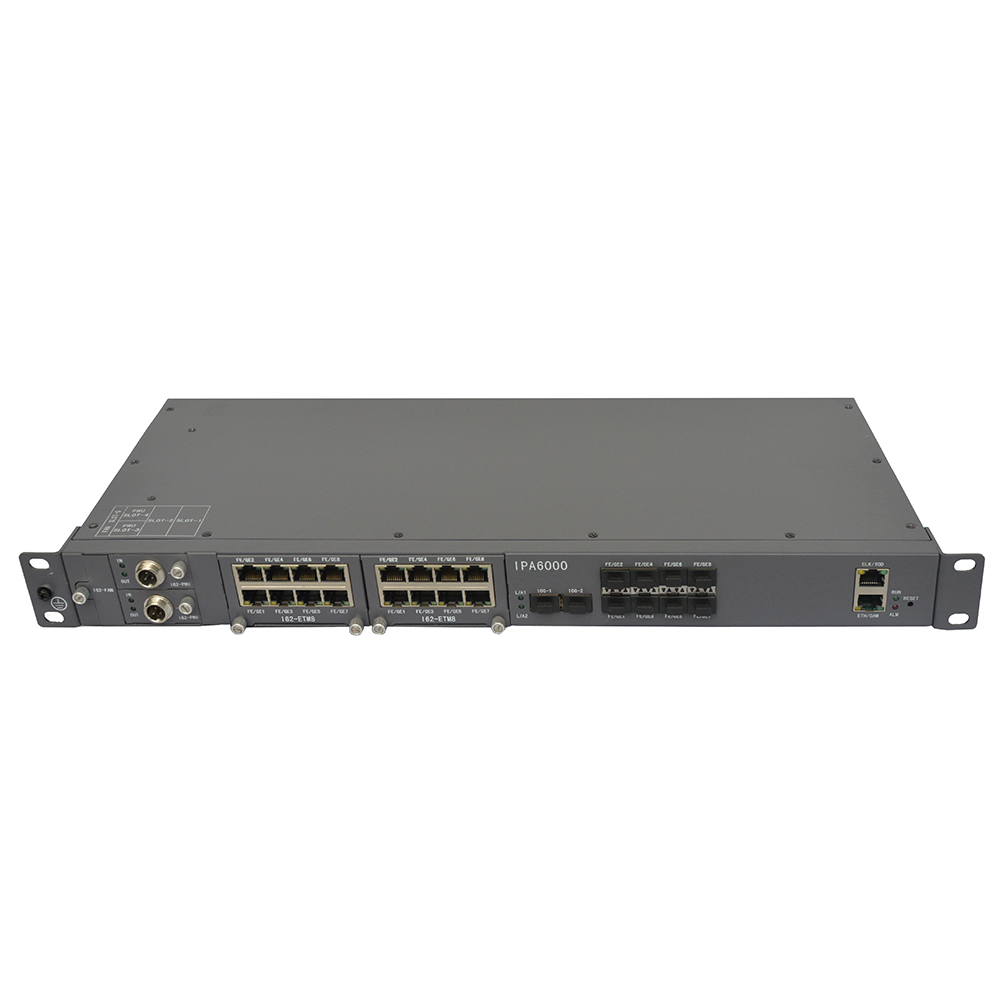

IPA6000-2

The product is based on IP packet switching technology (MPLS), supports multiple routing protocols, is simple to configure, has the networking ability of end-to-end suitable for various bandwidth services, and provides a "flexible" transmission channel suitable for IP service characteristics; Channel protection switching can be completed within 50ms to achieve carrier level service protection; The network management system can control the establishment and setting of the connection channel, realize the differentiation and guarantee of service QoS, flexibly provide SLA and other advantages, and support the configuration/management by the third-party network management platform.

Product Description

Features

1. IP architecture, full packet switching core, supporting layer-3 routing protocol and third-party platform configuration
management;
2. provide ge/fe (optical/Electrical), E1, V.35 multiple business interfaces;
3. support MPLS, MPLS-TP, PWE3, 1588v2 clock synchronization and other technologies;
4. support OSPF, static routing and other protocols; Dynamic and static ARP and VLAN if sub interfaces;
5. support hierarchical QoS, including traffic classification, supervision, congestion, queue scheduling, traffic shaping, etc;
6. support layer 3 OAM, loopback detection, continuity and connectivity verification, packet loss, delay measurement and other
maintenance methods;
7. support flow control, broadcast storm filtering, loopback suppression, QinQ, ACL, performance statistics, etc;
8. support the carrier level service protection of equipment port, and support lsp1:1 and PW 1:1;
9. XView, an integrated network management platform, can manage IPA, MSAP, PAS and other products at the same time, and support
CLI and graphics;
10. support local configuration (console, network interface) and remote configuration; The software is upgraded online to support
the northbound interface;
11. it supports the detection of equipment power supply/temperature/laser parameters, and can monitor the working voltage/state of
the CPU. If there is any abnormality, it will generate an alarm or automatically reset to avoid hanging or falling off.

Specification

One way switching capacity	44G
Support business interface	10GE、GE/FE、E1
Interface type	Optical port: SFP slot module; Ethernet port: RJ45; Power interface: Pinzi three core socket (AC), 3PIN aviation connector
Number of interfaces	2 10GE optical, 24 GE/FE optical or electrical
L2 features	Support IEEE802.1Q, ieee802.1p, IEEE 802.3ad, IEEE 802.1ab, stp/rstp, etc
L3 features	Support OSPF, IS-IS, BGP, acl/telnet, static routing, dynamic/static ARP, IGMP snooping, etc
MPLS features	Support LDP and RSVP-TE, l2vpn/l3 VPN, mpls/bgp l3vpn, MPLS-TP OAM
Service protection	Support BFD for OSPF and BFD for PW; Lsp1:1, pw1:1
OAM	Support eth OAM (EFM, CFM, y.1731), BFD, RFC 2544, and power down alarm
QOS	Support DiffServ mode based on stream classification; Based on VLAN, 802.1p, VLAN+802.1p stream classification; Support port based traffic shaping; Support port priority queue and HQoS
Power consumption	Less than 55W (Note: the slot is inserted with optical port card, and all optical ports are inserted with optical modules and work normally)
Power supply	DC 48V power supply, input voltage range: 36~72V, ripple less than 200mV
Operating environment	Temperature: -5 ℃～ 55 ℃; Humidity: 10%~90% non condensing; Altitude: ≤ 4000m; Air pressure: 70 ～ 106kpa
Dimension mm (width × height × depth)	440mm × 45mm × 210mm (width × height × depth)
