High Quality Fire Safety Valve

High Quality Fire Safety Valve

Contact Now

Quick Details (View All)

Model NO.ZSXF Work PressureMid-Pressure (2.5mpa< Pn <6.4mpa)
Working TemperatureNormal Temperature (-40u00b0C<T<120u00b0C) Material of Seal SurfaceSoft Sealed
Valve BodyCasting ApplicationIndustrial Usage, Water Industrial Usage, Household Usage, Fire Project
ColorRed Regular/Optional TrademarkCEQU

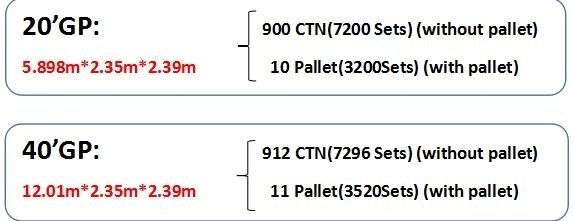

Transport PackageCarton Packing Specification2" 2.5" 3" 4" 5" 6" 8"
OriginChina

Product Details

SUMMARY:

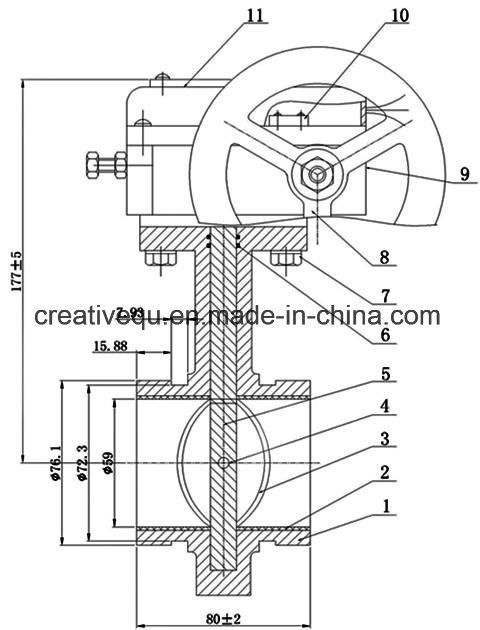

Fire signal butterfly valve with light weight, switch rapidly and reliable, such characteristics as small operation torque, and can be see easily the valve opening degree, discriminant of the valve opening in outside, and the valve opening and closing signals transmitted to the control center, often used in fire control system.
Diameter 2" 2.5" 3" 4" 5" 6" 8"
Working pressure 1.6MPA
Strength text  6.4MPA
Sealing Text  3.2MPA
Application Temperature 0-65degree
Applicable Medium Water and foam mixed






Fujian Nanan Creative Equipment Co., Ltd.

Beifeng Industrial

China
