High quality electric actuator gate valve DC24V 4-20mA regulating NO/OFF type 380V flange link hydraulic valve

Name: High quality electric actuator gate valve DC24V 4-20mA regulating NO/OFF type 380V flange link hydraulic valve
Brand: Hebei Bainade Automatic Control Instrument Co., Ltd.
SKU: Tradewheel_2734089
Price: 117 USD
Availability: InStock

FOB Price 117 - 117 USD / pieces

Contact Now

Quick Details (View All)

Application	General	Port Size	Made according to customer requirements
Warranty	1 years	Place of Origin	Hebei, China
Model Number	DZW-40	Power	Electric
Temperature of Media	Normal Temperature	Brand Name	BNDZKYB
Structure	Gate	Media	Water
Customized support	OEM, ODM	Torque range	200~2500N.M
Link mode	Directly connected type	Switching mode	Switching type, regulating type
Supply voltage	380V	Control signal	220V; Passive switching quantity; 4~20mA; 485 communication
Feedback signal	Analog signal 4-20mA, open source switching quantity	Electrical interface	2-M221.5/2-M271.5
Control mode	Local control, remote control, remote control	Class protection	IP65
Explosion-proof class	Exd II BT4Gb

Product Details

Product parameters
Model	DZW-20 \| DZW-30 \| DZW-45 \| DZW-60 \| DZW-90 \| DZW-120 \| DZW-180 \| DZW-250
Output Torque	50Nm \| 160Nm \| 200Nm \| 250Nm \| 500Nm \| 600Nm \| 1000Nm
Cycle Time	18r/min \| 24r/min \| 36r/min
Rotation	360°
Switch mode	Switching type, regulating type
Rated Current	0.57A \| 1.03A \| 1.38A \| 2.2A \| 2.62A \| 4A \| 4.12A \| 5.25A \| 7.9A \| 8.87A \| 12.05A \| 15.6A \| 20.5A \| 26.6A
Motor Power	0.12KW \| 0.25KW \| 0.37KW \| 0.55KW \| 0.75KW \| 1.1KW \| 1.5KW \| 2.2KW \| 3KW \| 4KW \| 5.5KW \| 7.5KW \| 10KW \| 15KW \|
Voltage Options	380VAC
Input Signal	Passive switching quantity, 220V switching quantity, analog 4~20mA, 485 communication
Output Signal	Analog signal 4-20 MA, open switch quantity
Maximum stem diameter	28mm \| 40mm \| 48mm \| 60mm \| 70mm \| 80mm \|
Control mode	Local control, remote control, remote control
Explosion-proof grade	ExdⅡBT4Gb
Protection grade	IP65

FAQ

Q1:What are your main products?

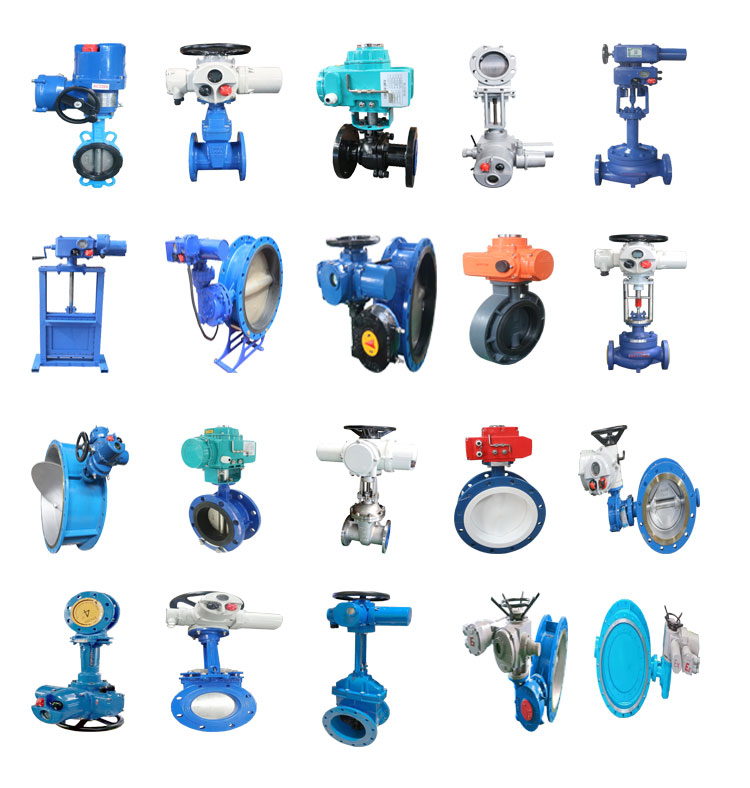

A: Our main products are electric actuators, butterfly valves and gate valves.

Q2:Are you a traderor a manufacturer? Do you have a factory?

A: We are actuator manufacturer, we have experienced team to do custom products, we haveour own factory and production line.

Q3:If you select the actuator

A: We need you to provide the torque (torque), if you dontknow, the valve diameter, and the valve interface drawing.

Q4:How do you guarantee quality?

A: We have our own quality control. Every product is controlled and tested before it leaves the factory and we offer A 12-month guarantee.

Q5:When can I receive theprice?

A: We will make an offer within 12 hours after receiving your inquiry. If its an emergency, you can call us.

Q6:How do Iorder our valves and actuators?

A: Please send your inquiry to us via Email, Whatsapp, wechat, etc. We need to know the followinginformation before formal quotation.

1) Actuator: Actuator parameters, with what valve to use, use environment, temperature,special requirements.

2) valves: Valve flow medium, flow medium temperature, valve parameters.

Q7:How can I get a sample to check
your quality? A: Contact our sales specialists to arrange sample delivery. Please send us the details of the sample before placingorder.

Q8:If we place a formal order, what about the delivery date?

A: We have regular inventory of conventional products, and thesmooth delivery period is 3-7 days. If you need to customize production, communicate with sales experts to determine the specificdelivery time.
