High Quality Eco-Friendly Fire Sprinkler System

Name: High Quality Eco-Friendly Fire Sprinkler System
Brand: Fujian Nanan Creative Equipment Co., Ltd.
SKU: Tradewheel_774921
Price: 0.47 USD
Availability: InStock

FOB Price 0.47 - 0.6 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	C-T-ZST	Working Temperture	68,79,95degree
Trademark	CEQU	Transport Package	Carton
Specification	DN15 DN20	Origin	China

Product Details

Materials: Brass/other
Model Number: C-T-ZST
Nominal Diameter:15mm/20mm
Rated Working Pressure: 1.2Mpa
Type: pendant, upright, sidewall
Package: 200PCS/CARTON
Production: 100000PCS/month

The sprinkle head is the most important part in automatic water spraying system, used to detect, control and extinguish the fire. It is a main part of the automatic water spraying system.

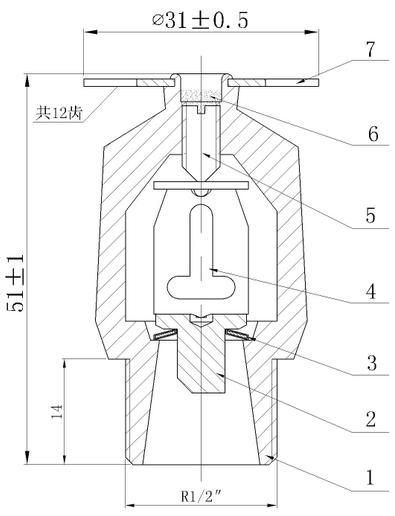

Part List of Structure Chart

NO.	Part Name	Material	Quantity
1	frame	zinc alloy	1
2	sealing seat	brass	1
3	sealing washer	lined Teflon	1
4	glass sphere	T3	1
5	fixed bolt	brass	1
6	padding	epoxy resin	1
7	splash box	stainless steel	1
