| Warranty | OTHER | Place of Origin | Guangxi, China |
| Brand Name | JIUYI POWER | Model Number | 50GF |
| Rated Voltage | 230/400V | Rated Current | 90A |
| Speed | 1500RPM | Frequency | 50HZ |

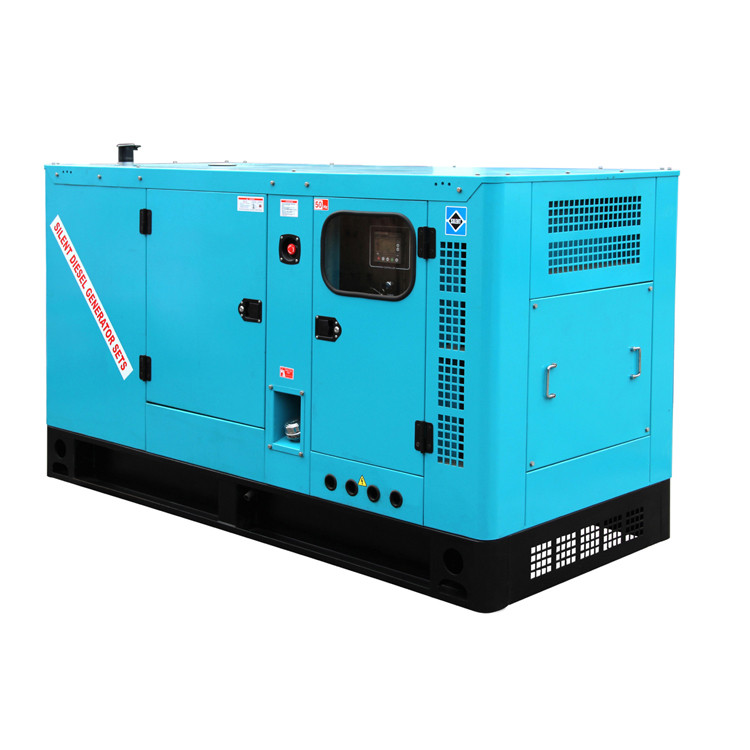

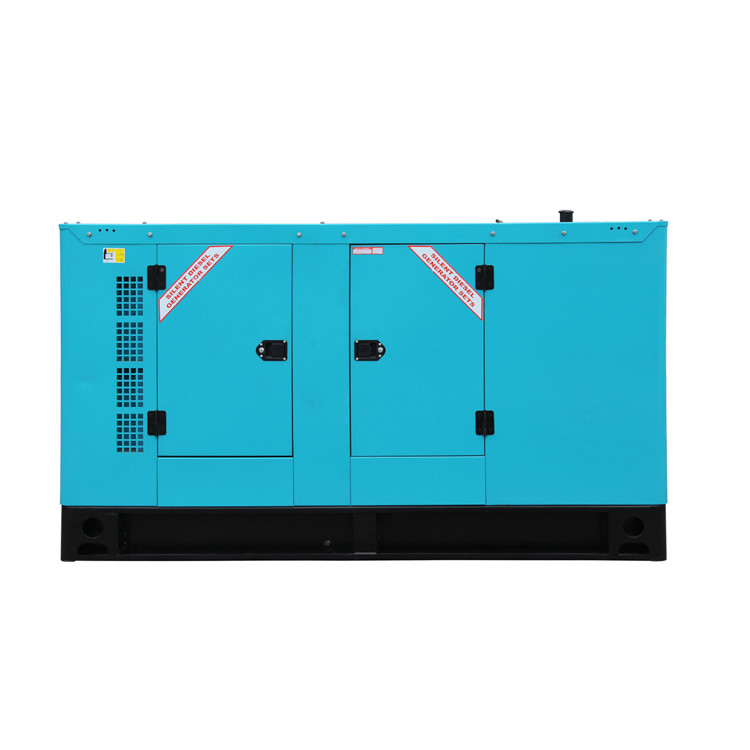

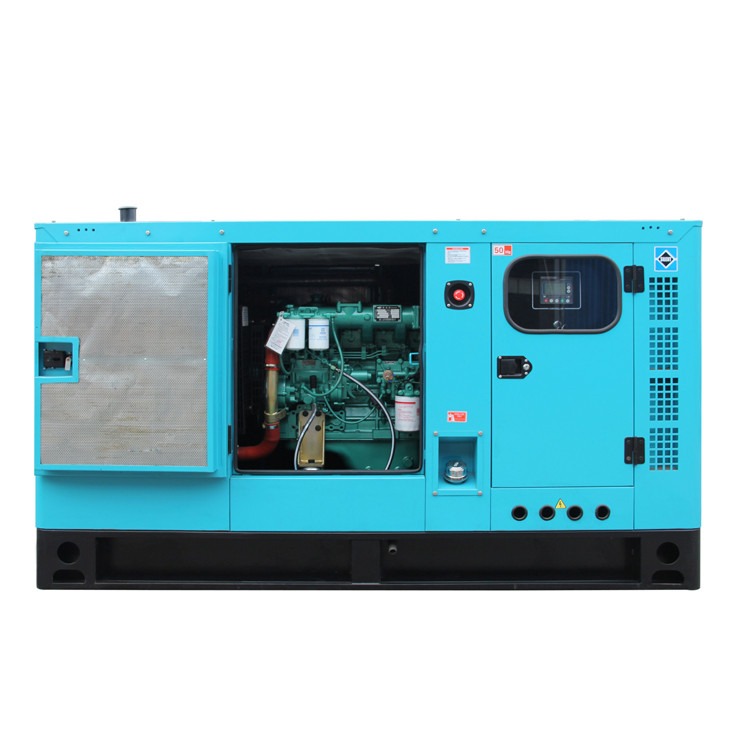

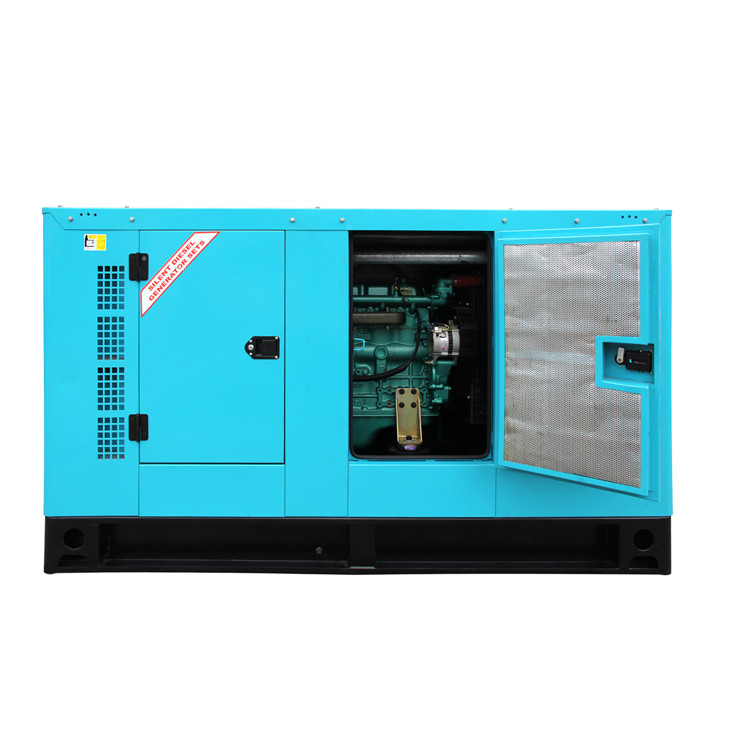

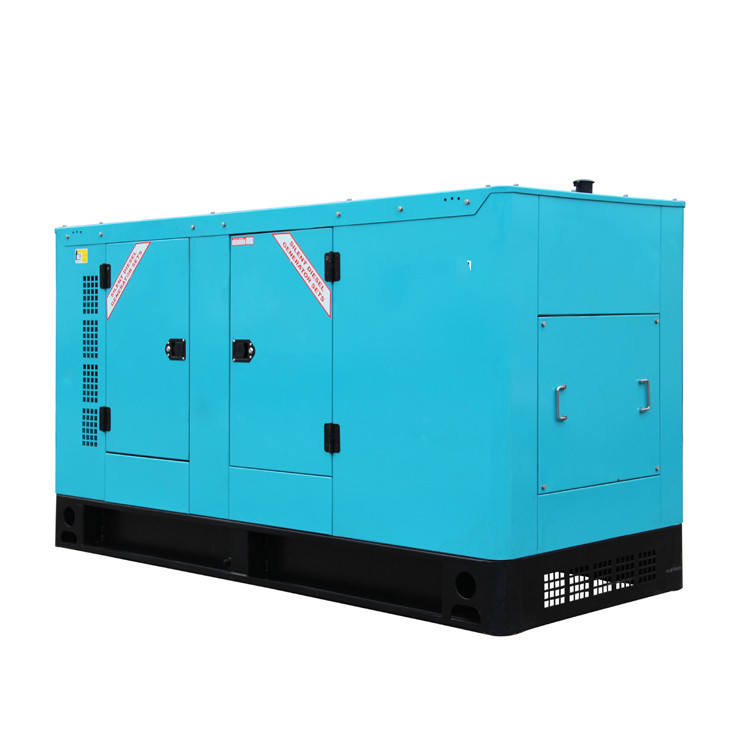

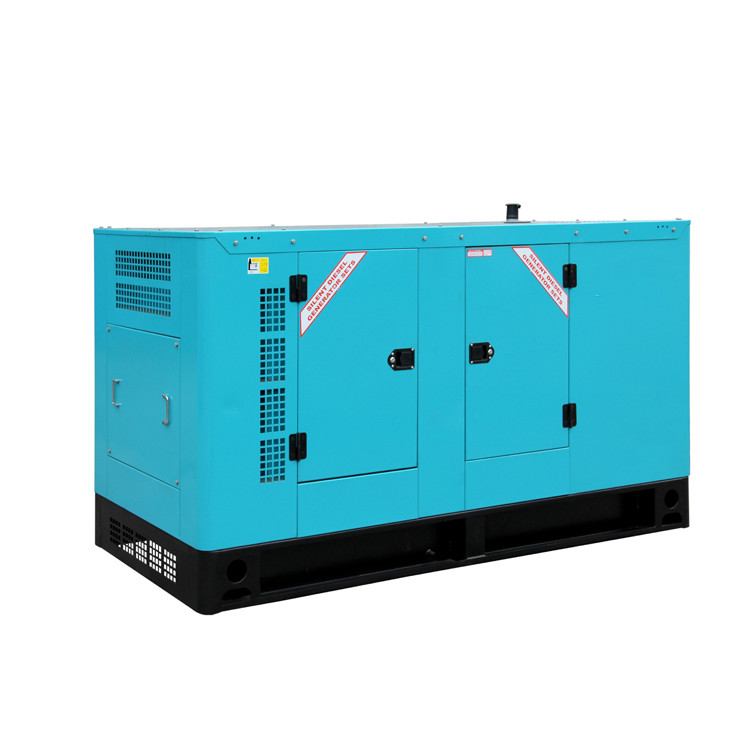

| Weight | 500KGS | Product Name | silent diesel generator |
| Certification | ISO |
|
Technical parameter
|
||
|
Diesel generator set
|
Mode |
50GF
|
|
(KW/KVA)
Prime power |
50KW/62.5KVA
|
|
|
(KW/KVA)
Standby power |
55KW/68.7KVA
|
|
|
(mm)
Open type Dimension(L*W*H） |
1900*660*960
|
|
|
(KGS)
Open type Dry weight of gen-set |
850
|
|
|
(mm)

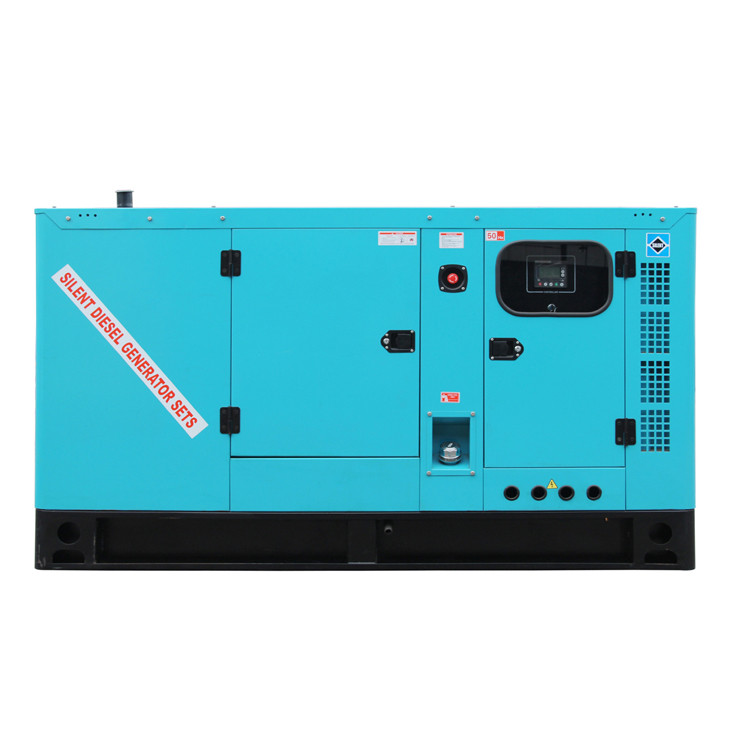

Silent type Dimension(L*W*H） |
2318*1000*1327
|
|
|
(KGS)
Silent type Dry weight of gen-set |
1450
|
|
|
Diesel engine
|
Brand
|
YUCHAI
|
|
Mode |
YC4D90Z-D21
|
|
|
Type
|
Vertical, in line, water-cooled and 4-stroke
|
|
|
Air intake mode |
Turbocharged
|
|
|
(mm)
Cylinder quantity-bore * stroke |
4-108*115
|
|
|
(L) Displacement
|
4.21
|
|
|
(kW/r/min)
Prime power/speed |
60/1500
|
|
|
(kW/r/min)
Standby power/speed |
66/1500
|
|
|
(kW.h)
Minimum fuel consumption |
≤205
|
|
|
(L) Engine oil capacity
|
13
|
|
|
Start mode
|
24V electric
|
|
|
(mm)
Dimension(L*W*H） |
1298*732*999
|
|
|
(KGS)
Dry weight of diesel engine |
370
|
|
|
A.C Alternator
|
Brand
|
Nanchang Kangfu （SANBO)
|
|
Mode |
SB-W4T.D-50
|
|
|
(KW)
Prime power |
50
|
|
|
(KW)
Standby power |
55
|
|
|
(V) Voltage
|
230/400
|
|
|
(Hz) Frequency
|
50
|
|
|
Excitation
|
Brushless
|
|
|
IP class
|
IP21
|
|
|
(mm)
Dimension(L*W*H） |
635*575*665
|
|
|
(KGS)
Dry weight of alternator |
288
|
|
|
Control system
|
Brand
|
Smartgen |
|
Mode |
HGM420
|
