| Warranty | 1 year | Place of Origin | Guangdong, China |
| Brand Name | JMC | Model Number | iHS |
| Phase | 2 | Type | Hybrid |

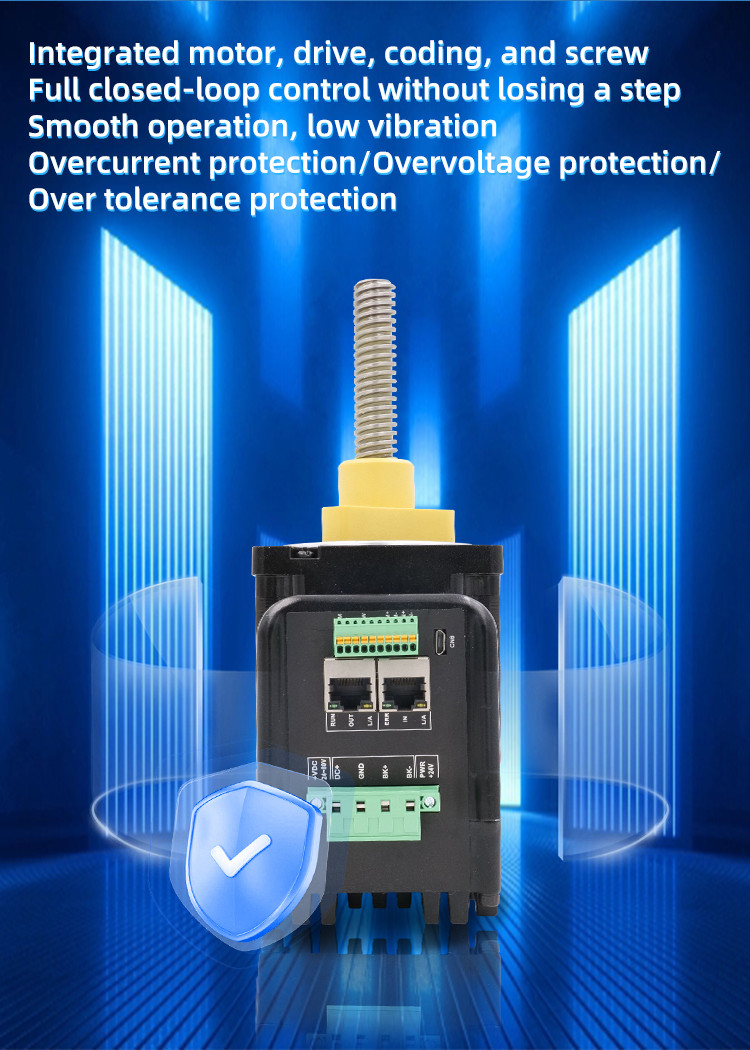

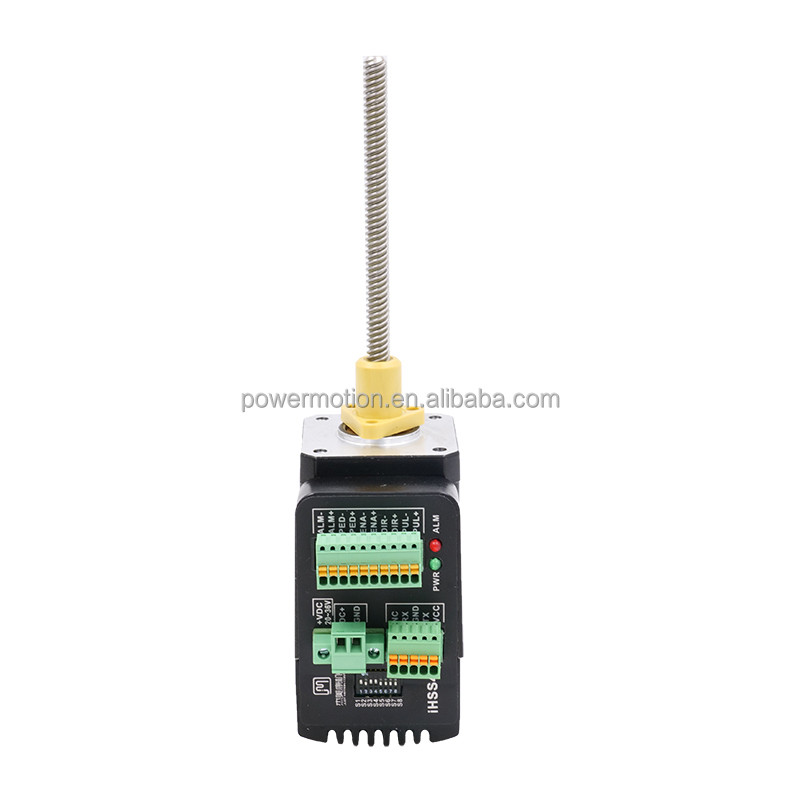

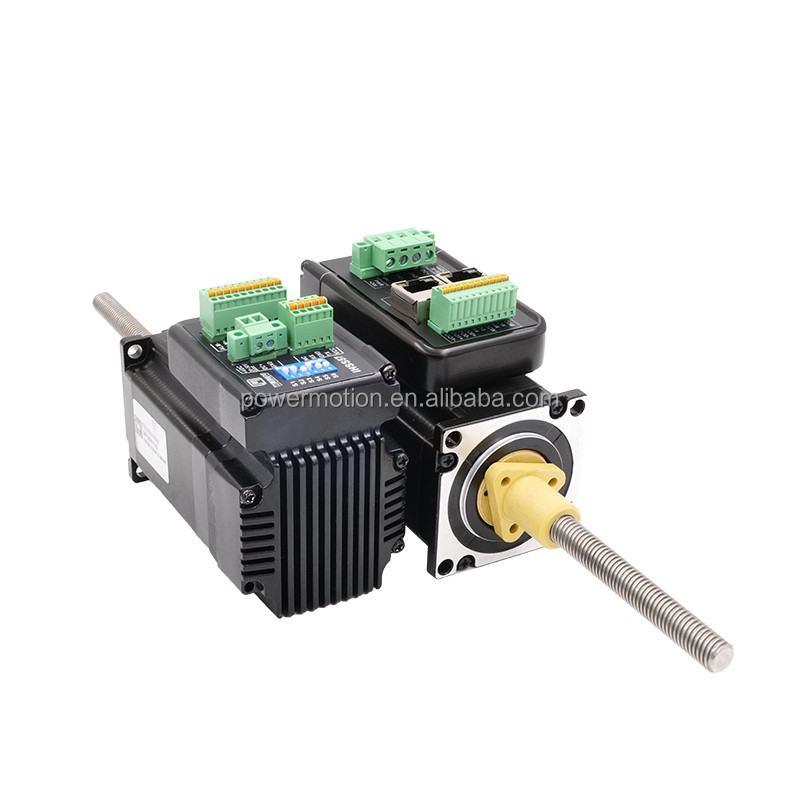

| Current / Phase | 1.2~6A | Product name | Screw motor with integrated drive |

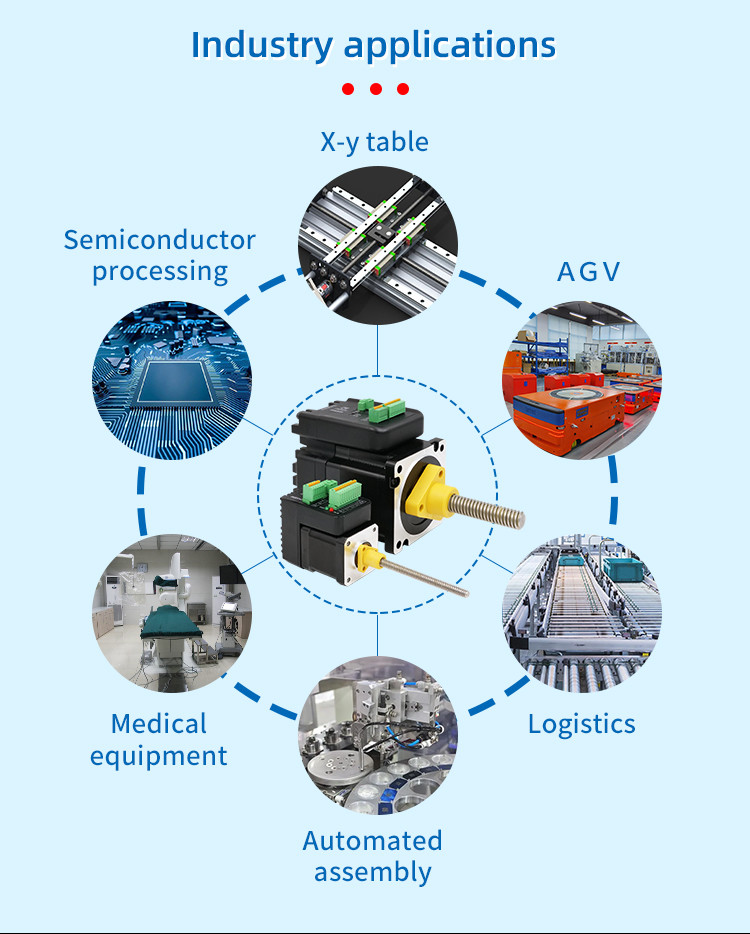

| Key words | Screw motor | Application | Medical Devices/Semiconductor |
| Frame Size | Nema17/Nema23/Nema34 | Motor type | Closed-loop stepper motor |
| Rated Voltage | DC20V-80V | Control mode | Step/dir/CANopen/EtherCAT |
| Screw type | Trapezoidal screw/ball screw | Screw diameter | 6.35-16mm |
| Screw lead | 1-32mm |
|

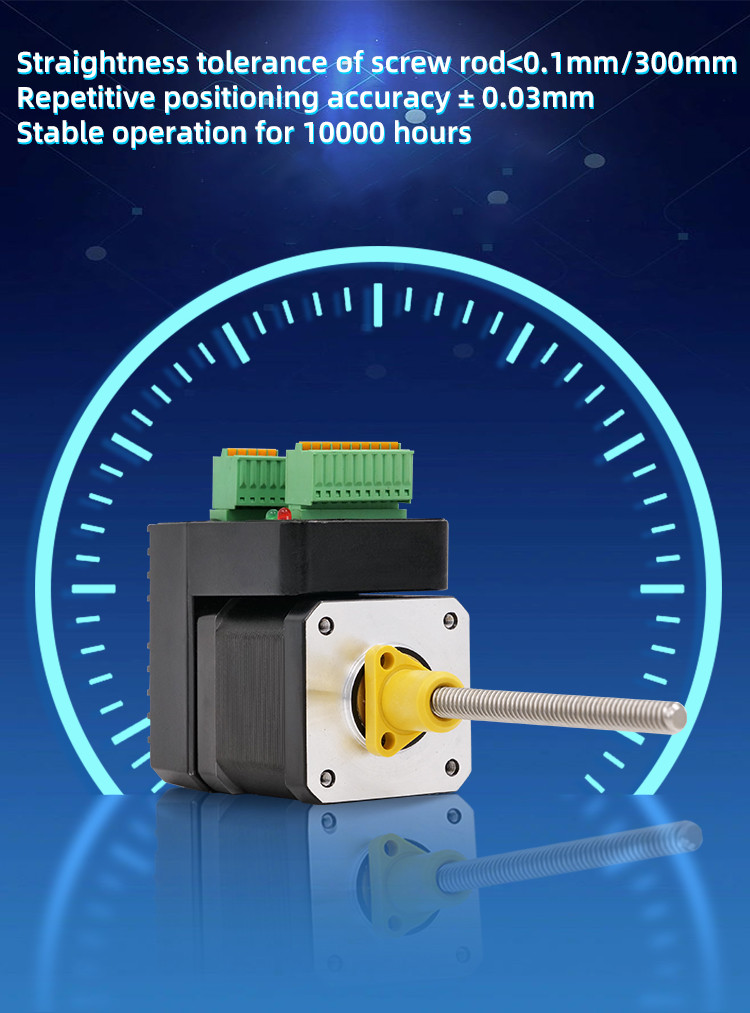

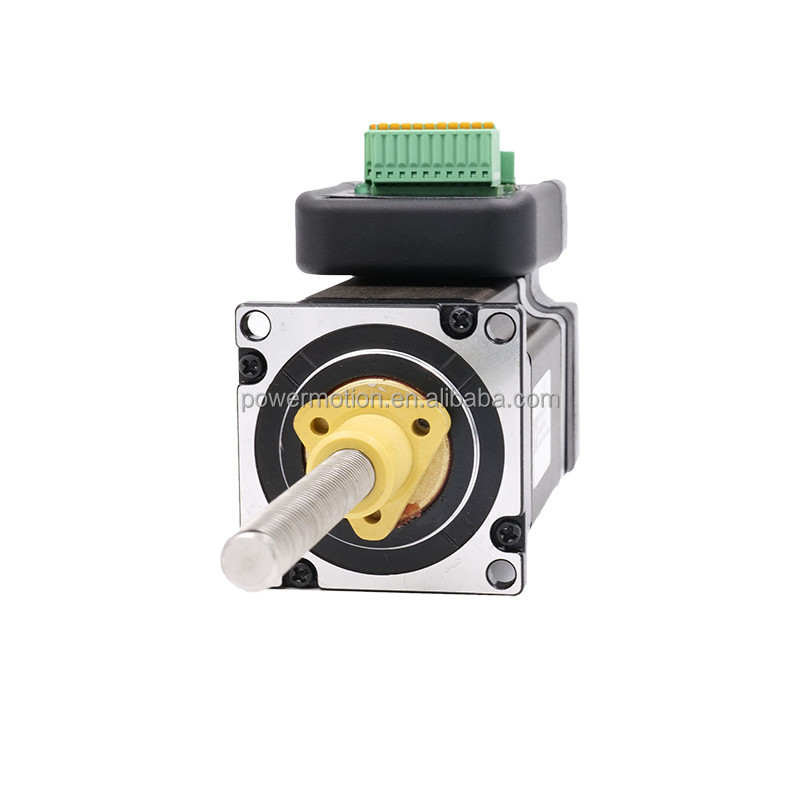

Parameter list for trapezoidal screw integrated
closed loop motor
|
||||||||
|
Motor base
|
42 (Nema17)
|
57 (Nema23)
|
86 (Nema34)
|
|||||
|
Motor Length
→Holding Torque
|
48mm→0.5Nm
60mm→0.7Nm
|
55mm→1Nm
75mm→2Nm
|
76mm→4.5Nm
114mm→8Nm
|
|||||
|
Input Voltage
|
24-48V
|
24-48V
|
24-80V
|
|||||
|
Current
|
2.5A
|
3A
|
6A
|
|||||
|
Screw diameter
|
6.35
|
8
|
9.525
|
15.875
|
||||
|
Lead
|
1.27/ 2.54/ 3.175/
5.08/ 6.35
|
12.7/ 2/
4/ 8/10
|
0.635/ 1.27/ 1.5875/ 2.116/ 2.54/ 3.175/ 4.232/
5.08/ 10.16/ 25.4
|
2.54/ 3.175/ 5.08/
6.35/ 12.7/ 25.4
|
||||
|
Step length
|
0.00635/ 0.0127/ 0.015875/ 0.0254/ 0.03175/
0.0635
|
0.01/ 0.02/
0.04/ 0.1
|
0.003175/ 0.00635/ 0.007938/ 0.01058/ 0.0127/
0.015875/ 0.2116/ 0.0254/ 0.0508/ 0.127
|
0.0127/ 0.015875/ 0.0254/ 0.03175/ 0.0635/ 0.127
|
||||
|
Control mode
|

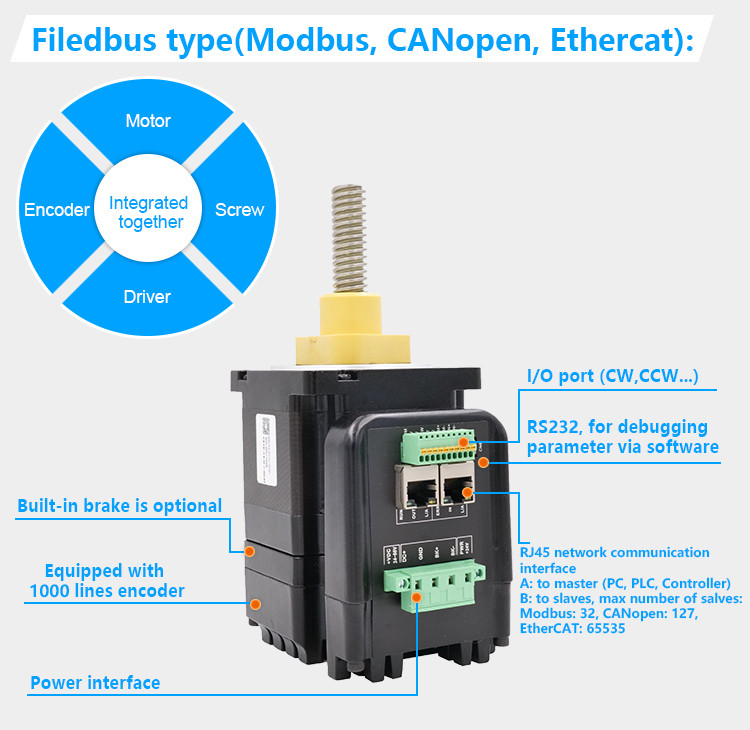

step/dir or bus type(RS485/Canopen/Ethercat)
|
|||||||
|
We have CE Certificate/ RoHS Certificate
/Utility Model Patent Certificate/ Computer
software copyright Registration Certificate and
so on
|
||||||||
