Model NO. | MAH Slurry Pump | Influent Type of Impeller | Single Suction Pump |
Position of Pump Shaft | Horizontal Pump | Pump Casing Combined | Horizontal Split Pumps |
Mounting Height | Suction Centrifugal | Impeller | Closed |
Usage | Pump, Pumps, Condensate Pump, Ash Pumps, Circulating Pump, Slurry Pump | Voltage | 220V/380V/410V/460V/High Voltage |
Drive | Electric Motor/ Diesel Engine | Color | as Customer Required |
Frequeccy | 50Hz/60Hz | Seal | Mechanical Seal/Packing Seal/Packing+Expeller Seal |
Lubrication | Grease and Oil | Bearing | NSK, Timken |
Material | A05, A07, A49, Rubber, Polyurethane | Transport Package | Plywood Cases/ as Customer Required |
Specification | CE, SGS | Trademark | Depon |
Origin | China | HS Code | 8413810090 |
Production Capacity | 500set/Month |

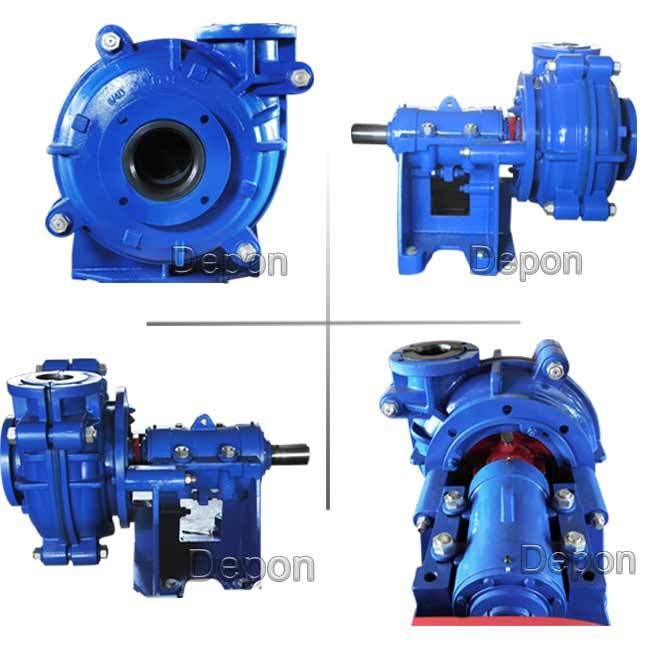

Depon MAH series pumps
are heavy duty horizontal slurry pumps designed to handle
the transfer of abraisive and high density slurries in
minging and heavy industry.
All Depon MAH slurry pumps are designed to be
interchangeable with the most common slurry pump
footprints used by the mining industry.
MAH pumps are manufactured using the highest quality
materials to ensure reliability and extended service life
in heavy duty applications.
Technical
Data
Usage | Slurry, sewage and water |
Capacity | 0- 3600m³/h |
Head | 0-112m |
Speed | up to 3200r/min |
Inlet/ouetlet Size | DN25mm-DN350mm |
Max Temperature | 110ºC |
Drive | Electric or diesel |
Selection Chart and
Performance
TYPE |
Allowable Mating Max. power(KW) |
Material | Clear Water Performance | Impeller | |||||||
Liner | Impeller | Capacity | Head(H) | Speed(n) | Max.Eff | NPSH | No.of Vanes |
Impeller Dia. |
|||
(m³/h) | (L/s) | (m) | (r/min) | (%) | (m) | (mm) | |||||
1.5/1B-MAH | 15 | M | M | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 |
RU | RU | 10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | 3 | ||||
1.5/1C-MHH | 30 | M | M | 16.2-34.2 | 4.5-9.5 | 25-92 | 1400-2200 | 20 | 2-5.5 | 5 | 330 |
2/1.5B-MAH | 15 | M | M | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 |
RU | RU | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | 5 | 178 | ||
3/2C-MAH | 30 | M | M | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 |
RU | RU | 36-75.6 | 10-21 | 13-46 | 1300-2300 | 60 | 2-4 | 5 | 213 | ||
3/2D-MHH | 60 | M | M | 68.4-136.8 | 19-38 | 25-87 | 850-1400 | 47 | 3-7.5 | 5 | 457 |
4/3C-MAH | 30 | M | M | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 |
RU | RU | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 | |||
4/3E-MHH | 120 | M | M | 126-252 | 35-70 | 12-97 | 600-1400 | 50 | 2-5 | 5 | 508 |
6/4D-MAH | 60 | M | M | 162-360 | 40-100 | 12-56 | 800-1500 | 65 | 5-8 | 5 | 365 |
RU | RU | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | 5 | 365 | ||
6/4S-MHH | 560 | M | M | 324-720 | 90-200 | 30-118 | 600-1000 | 64 | 3-8 | 5 | 711 |
6S-MHH | 560 | M | M | 468-1008 | 130-280 | 20-94 | 500-1000 | 65 | 4-12 | 5 | 711 |
8/6E-MAH | 300 | M | M | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 |
RU | RU | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | 5 | 510 | ||
10/8E-MM | 120 | M | M | 666-1440 | 185-400 | 10-60 | 600-1100 | 73 | 4-10 | 5 | 549 |
10/8ST-MAH | 560 | M | M | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 |
RU | RU | 540-1188 | 150-330 | 12-50 | 400-750 | 75 | 4-12 | 5 | |||
12-10ST-MAH | 560 | M | M | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 5 | 762 |
RU | RU | 720-1620 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | 5 | |||
14/12ST-MAH | 560 | M | M | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 |
RU | RU | 1152-2520 | 320-700 | 13-44 | 300-500 | 79 | 3-8 | 5 | |||
16/14TU-MAH | 1200 | M | M | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 |
20/18TU-MAH | 1200 | M | M | 2520-5400 | 700-1500 | 13-57 | 200-400 | 85 | 5-10 | 5 | 1370 |

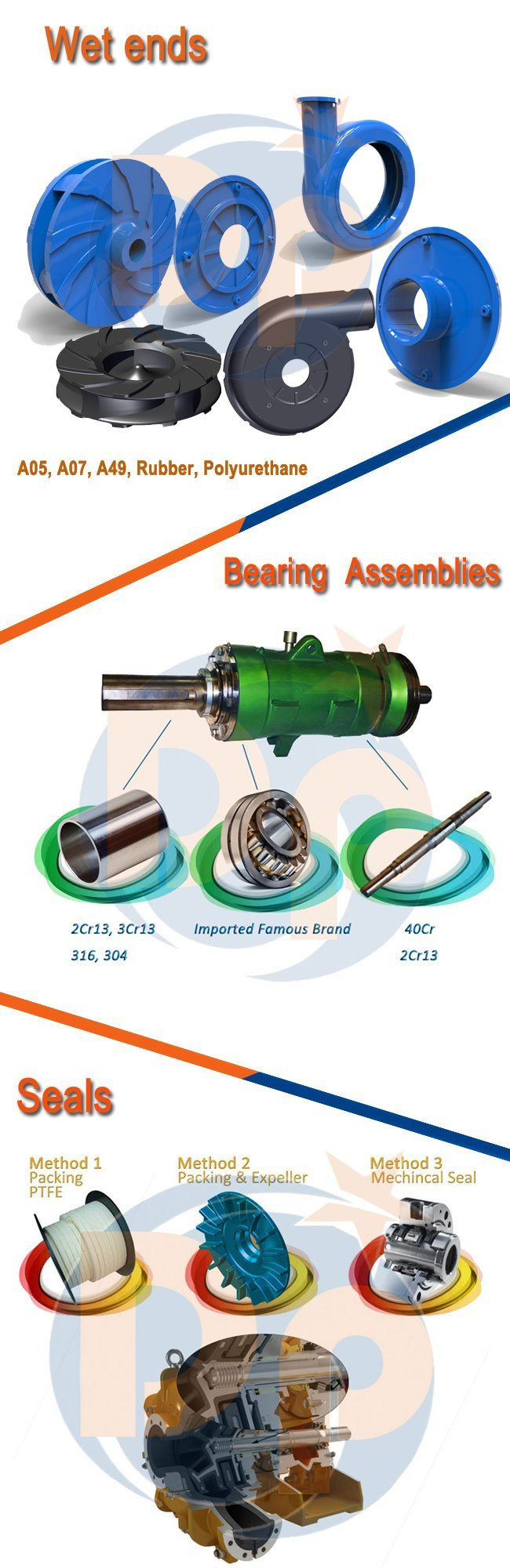

Pump Parts
Material
Metal Lined Pumps | Rubber Lined Pumps | ||
Part Description | Material Specification | Part Description | Material Specification |
Base | Cast Iron | Base | Cast Iron |
Shaft | 4140 High Tensile Steel | Shaft | 4140 High Tensile Steel |
Bearing Assembly | Timken(Cast Iron Body) | Bearing Assembly | Timken(Cast Iron Body) |
Shaft Sleeve | 420 Stainless Steel | Shaft Sleeve | 420 Stainless Steel |
pump Casing | Cast Iron | pump Casing | Cast Iron |
Frame Plate Liner | 27% Chrome White Iron | Frame Plate Liner Insert | Rubber |
Volute Liner | 27% Chrome White Iron | Cover Plate Liner | Rubber |
Impeller | 27% Chrome White Iron | Impeller | Rubber Coated High Tensile Steel |
Throat Bush | 27% Chrome White Iron | Throat Bush | Rubber |
Joint Ring | Rubber | Cover Plate | Cast Iron |
Cover Plate | Cast Iron | Stuffing Box | Cast Iron |
Stuffing Box | Cast Iron | Expeller | 27% Chrome White Iron |
Expeller | 27% Chrome White Iron | Expeller Ring | Natural Rubber |
Expeller Ring | Natural Rubber | Bolts | Zinc Plated Steel |
Bolts | Zinc Plated Steel | O-rings | Nitrile Rubber |
O-rings | Nitrile Rubber | Seals | Rubber |
Seals | Rubber |
