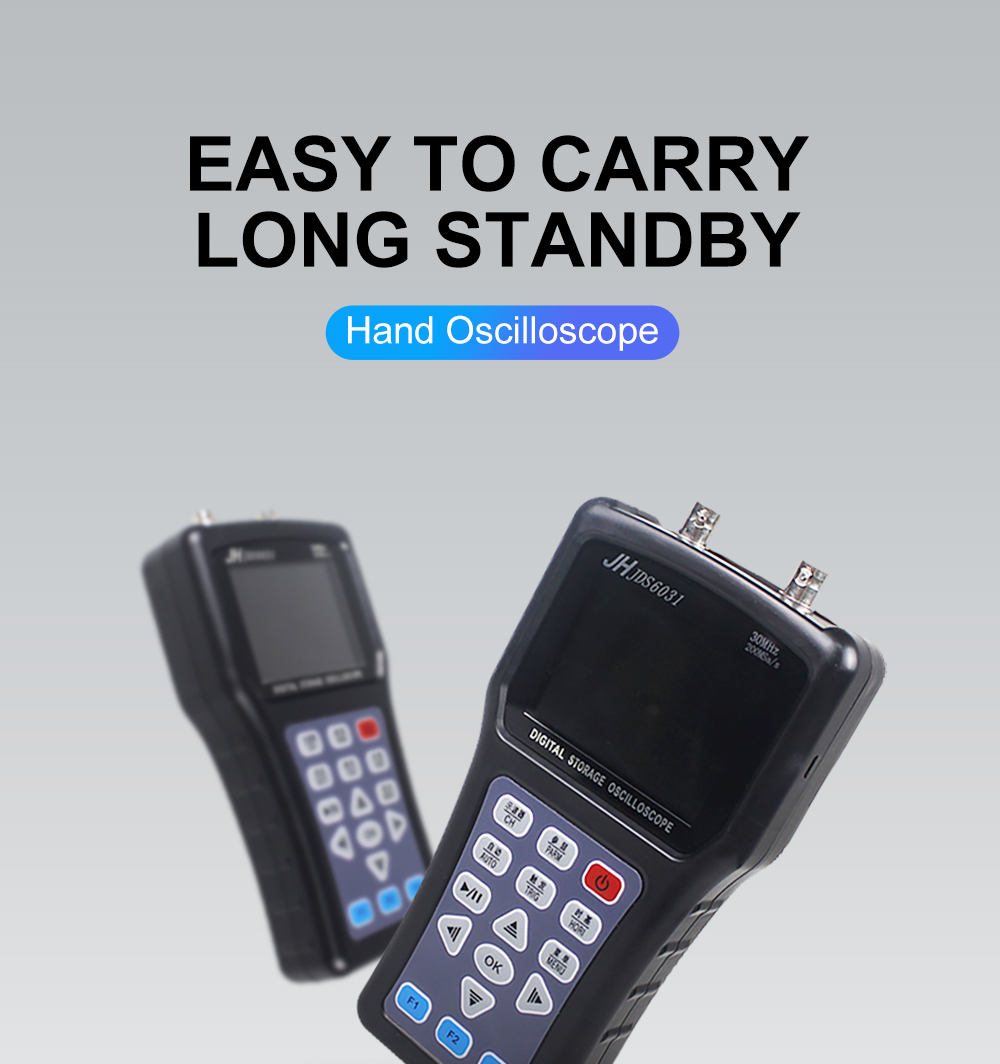

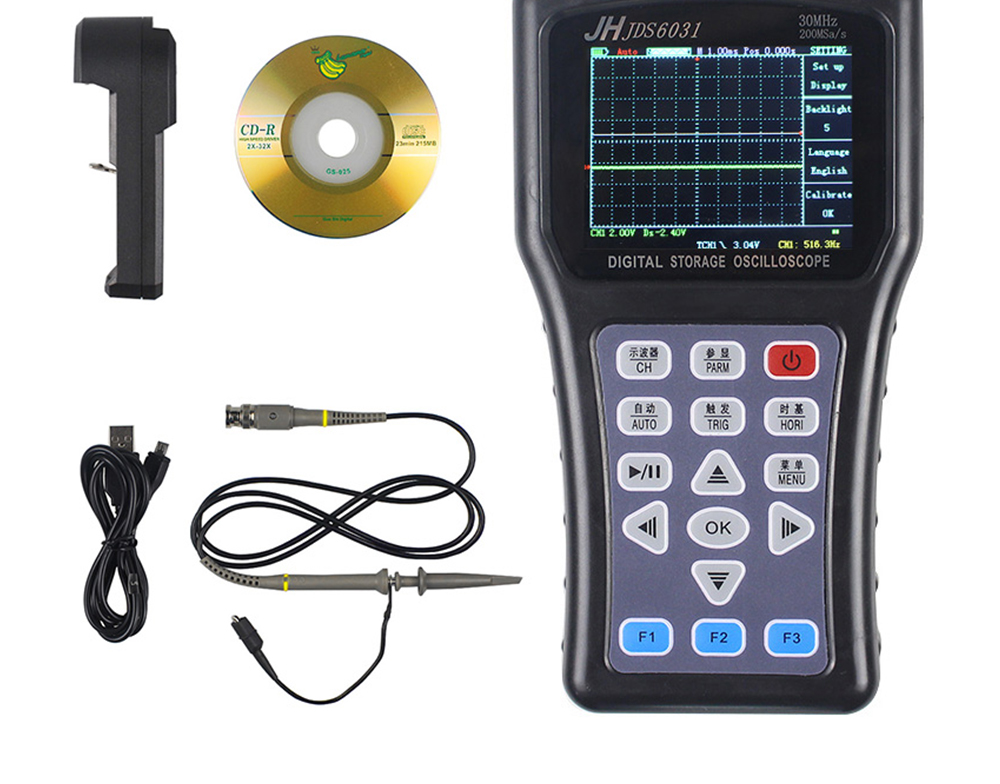

Hand-held Oscilloscope Digital Oscilloscope 1CH 30M 200MSa/S with Portable USB Charger Probe Cable JDS6031

FOB Price 72 - 72 USD / Piece

MOQ	200 Pieces

Quick Details (View All)

Place of Origin	China	Brand Name	Jinhanic
Model Number	6032	version	handheld oscilloscope
channel	1	Bandwidth	31MHz
real-time sampling rate	201MSa/s	The storage depth	2Kpts

Product Details

Jinhan JDS6031 Hand-Held Oscilloscope With 1CH 30M 200MSa/S Digital Strorage Oscilloscope

Channel: 1
Bandwidth: 30MHz
real-time sampling rate:200MSa/s
The storage depth: 2Kpts
Input coupling : AC,DC
Input impedance : 1MΩ 25pF
The maximum input voltage: 40V (probe X1); 400V (probe X10) can be measured 220V
voltage; (probe X100) 2000V voltage can be measured
Probe attenuation : 1X,10X
Set the probe attenuation factor: 1X,10X,100X
Sampling Method: Real-time sampling(10ns-50ms)/Scan sampling(100ms-5s)
Vertical Sensitivity: 10mV-5V (Probe 1X) 100mV-50V (probe 10X) (1,2.5,5 step)
Vertical accuracy :+/-3%
Vertical resolution: 8bit
Horizontal scan range: 10nS/div-5S/div(1,2.5,5 step)
Trigger Mode :Auto, Normal and Single
Trigger Type: Rising edge trigger, falling edge trigger
Automatic detection: Support (50Hz-40MHz)
Cursor measurements: Support time and voltage cursors

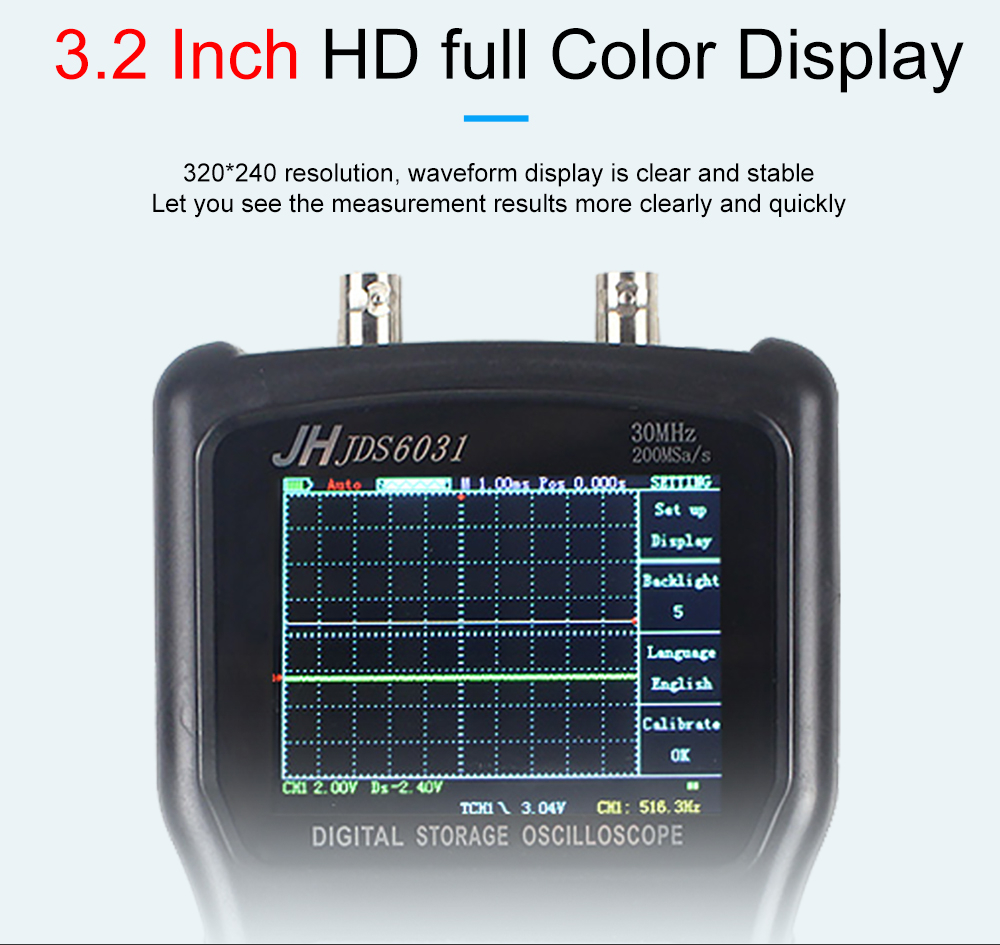

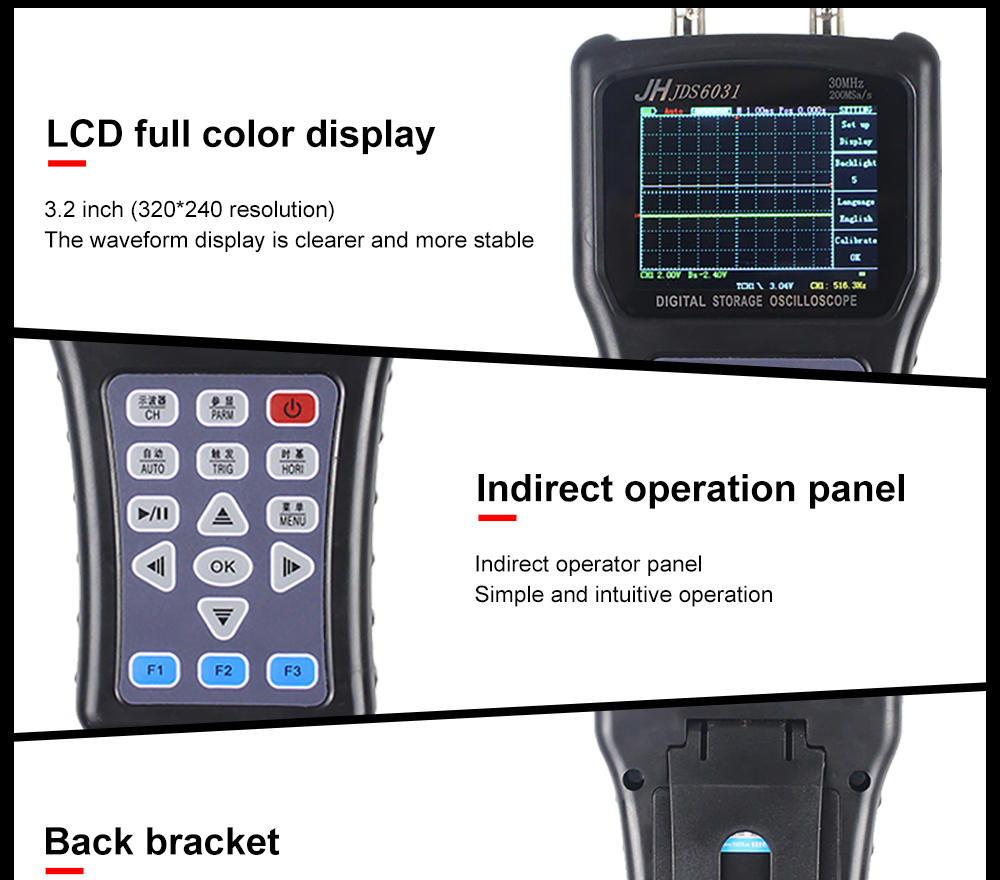

Screen :3.2-inch, 16-bit true color, TFT, 320 * 240

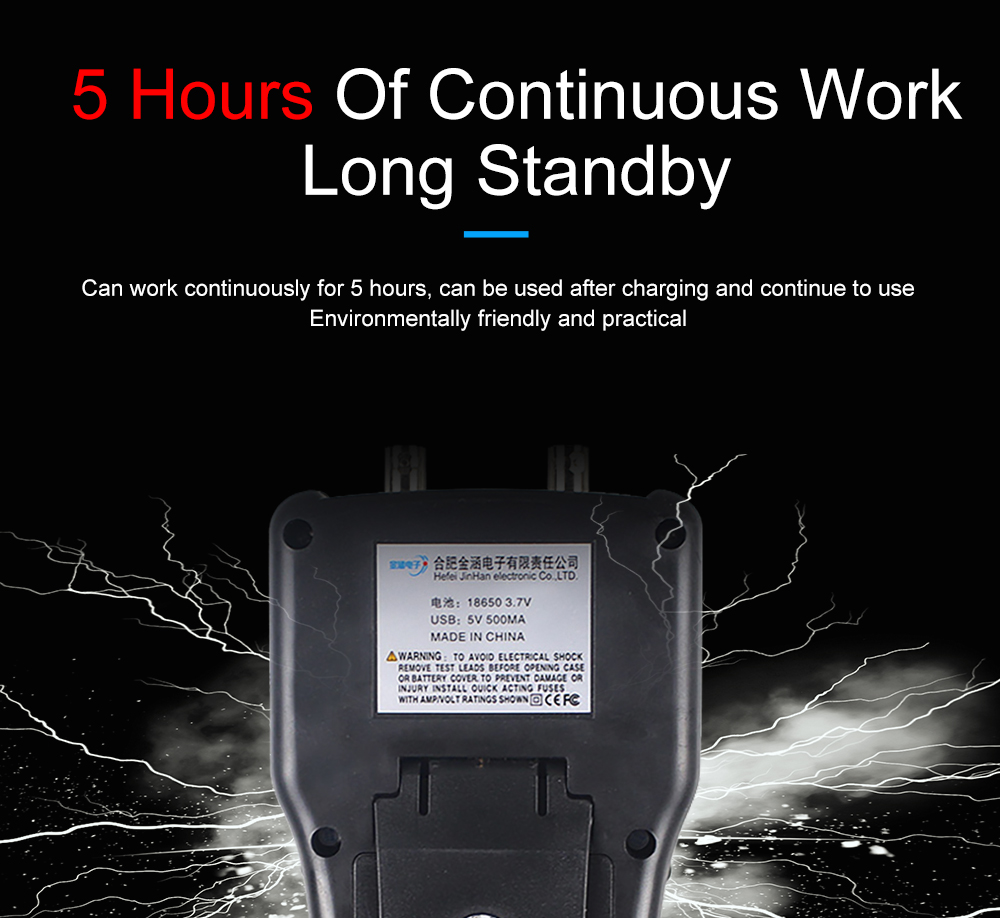

Battery :2800 + mA lithium battery (single cell about four Six of continuous work)
Size :195 * 99* 39(mm)
