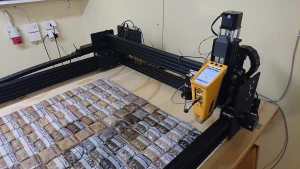

GERDA Automated Sampling System for Portable XRF/NIR

Product Details

GERDA – Geochemical Research and Documentation Assistant – is an automated sampler for portable and handheld analytical instruments such as pXRF, NIR spectrometers, magnetometers, etc.

The GERDA can be used for:

assaying drill core right in core boxes;

assaying stream sediment/soil samples in field bags;

assaying RAB, RC drilling chip samples;

determination of gold mineralization in crushed rock/drill core samples utilizing NEFFA method;

assaying any 2D flat objects like paintings and etc..

The GERDA includes:

CNC 1500×1000 mm table WorkBee;

high-resolution USB camera Baumer VCXU 65C.R (optional);

Control Unit based on Raspberry Pi3;

Browser-based software – you can test it in a simulator following the link – Control Panel;

can be mounted on Palsatech or CoreLift tables

can be remotely controlled via VPN

The GERDA can be equipped with:

XRF analyzers Olympus Vanta or Bruker S1 Titan/Tracer or SciAps X505/X555 or Elvathech ProspectOre 3 (sold separately as agreed with the Customer);

NIR spectrometer Spectral Evolution oreXpress (sold separately as agreed with the Customer);

LIBS analalyser SciAps Z903

GERDA by MEFFA Lab — engineered with expert feedback for reliable, precise sampling you can trust. We're happy to answer any questions.!
