Geekvape AQ Pod System 2ml Q Cartridge 20W Max Output Portable Atomizer Device Wholesale

FOB Price 5 - 6 USD / 100 Pieces

MOQ	10 Pieces
Port	Shenzhen,China
Packaging	1pcs/1box
Lead Time	7-15 days

Contact Now

Quick Details (View All)

Battery Capacity	1000 mAh	Weight	51 grams
Power Output	5W – 20W	Pod Capacity	2.0 mL
Charging	Type-C USB	Activation	Dual mode

Product Details

1. Product Overview

The Geekvape AQ (Aegis Q) is a compact, refillable open-system pod device designed for wholesale B2B distribution.

The product serves as a dual-activation electronic cigarette accommodating both Mouth-to-Lung (MTL) and Restricted Direct-to-Lung (RDL) vaping configurations.

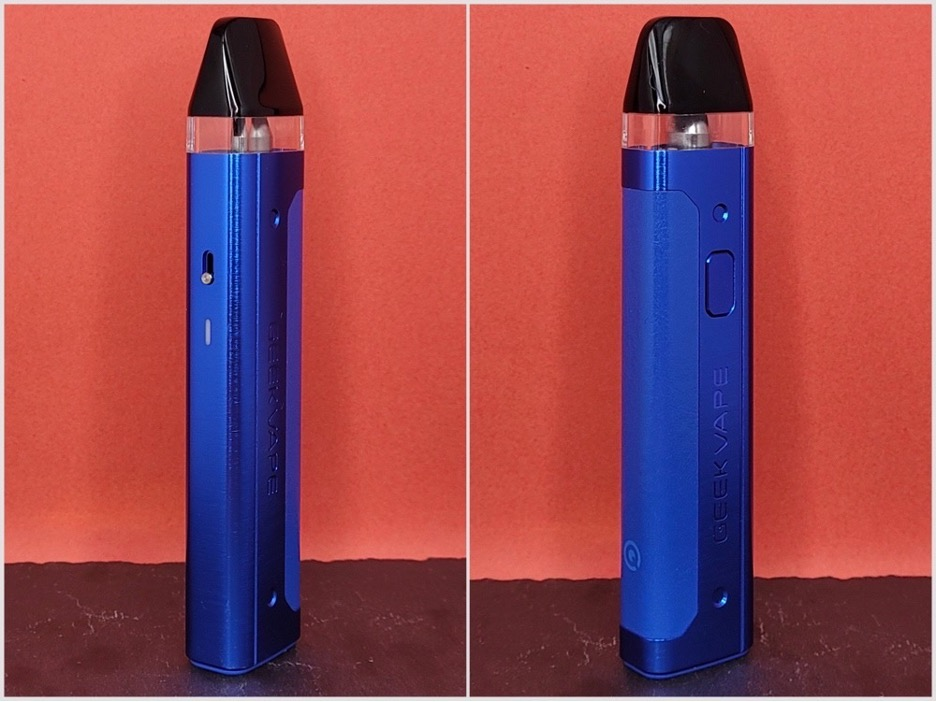

Structurally, it features a slim rectangular chassis fabricated from aluminum alloy integrated with a leather grip inlay and an adjustable physical side-airflow toggle.

2. Complete Technical Specifications

Parameter	Specifications & Measurement Data
Dimensions	112.00 mm × 23.70 mm × 13.70 mm
Net Weight	51.0 g
Chassis Material	Aluminum Alloy, PU Leather, PCTG
Battery Type	Integrated Rechargeable Lithium-ion
Battery Capacity	1000 mAh
Maximum Output Power	20W
Output Voltage Range	3.2V – 4.2V
Resistance Range	0.6Ω – 1.2Ω
Pod E-liquid Capacity	2.0 mL
Filling Method	Top-fill via removable mouthpiece cap
Charging Interface	USB Type-C
Charging Current	5V / 1A
Firing Mechanism	Draw-activated sensor or manual firing button

3. Atomization & Core Component Configuration

Coil Technology: Built-in mesh coil structure using Geekvape VPU (Vapor Processing Unit) non-woven alloy heating technology.
Cartridge System: Natively compatible with the standard Geekvape Q Cartridge series.
Available Resistances:
- 0.6Ω Mesh Coil (Recommended wattage: 18W–25W)
- 0.8Ω Mesh Coil (Recommended wattage: 12W–18W)
- 1.2Ω Mesh Coil (Recommended wattage: 8W–12W)
Airflow Management: Step-less slide airflow valve located on the lateral edge of the device body.

4. Battery & Charging Specifications

Power Source: 1000mAh high-density cell supporting constant voltage output.
Variable Output: 3-level voltage adjustment toggled via continuous triple clicks of the main button.
Status Indicators: Single multi-color LED indicator mapping real-time battery status:
- Green Light: Battery Level > 70%
- Blue Light: Battery Level 30% – 70%
- Red Light: Battery Level < 30%
Protection Matrix: Circuit protection including Overtime Protection (10s cut-off), Short Circuit Protection, Over-discharge Protection, and Low Power Prompt.

5. Manufacturing Craftsmanship & Structural Advantages

Tri-Proof Structure: Reinforced internal sealing rings and shock-absorbing structural layers provide engineered dust-proof, splash-resistant, and drop-resistant capabilities.
Surface Treatment: Matte anodized aluminum surface preventing scratching combined with high-grade synthetic leather stitching for ergonomic grip friction.
Safety Lock Mechanism: Single physical button provides a 5-click complete device lockout to eliminate accidental dry-firing during transport.

6. Regulatory & Hardware Compliance

Certifications: CE, RoHS, and FCC compliant.
TPD Compliance: Manufactured to meet European Tobacco Products Directive (TPD) requirements with a fixed 2.0mL maximum reservoir capacity.
Material Standards: The pod utilizes food-grade PCTG plastic, meeting strict global consumer safety standards for e-liquid contact components.

7. OEM / ODM Customization Services

We offer flexible bulk manufacturing options for global importers, distributors, and private labels:

Custom Branding: Logo engraving or screen-printing on the aluminum alloy body (MOQ applies).
Packaging Customization: Full-color retail box redesigns, user manual translation, and regional outer carton batch printing.
Colorways & Aesthetics: Custom PU leather texture choices and alternative alloy anodization finishes based on minimum factory production run requirements.

8. Order Fulfillment & Logistics Expectations

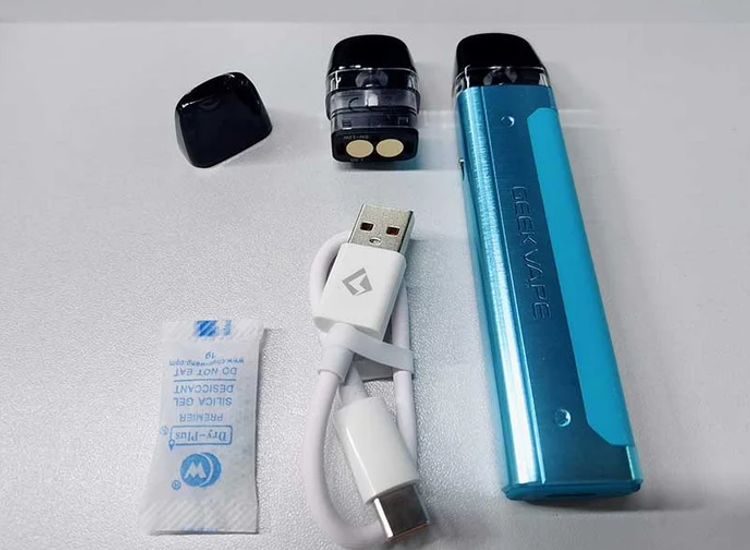

Standard Packaging Configuration: 1 × Geekvape AQ Device, 1 × 0.8Ω Q Cartridge, 1 × 1.2Ω Q Cartridge, 1 × Type-C Cable, 1 × User Manual.
Wholesale Logistics: Master cartons are securely packed with anti-static and shockproof layers suitable for maritime or air freight.
Lead Times: Variable based on stock availability and customization tier. Standard unbranded wholesale orders dispatch within negotiated factory timelines.

9. FAQ (Frequently Asked Questions)

Q1: How do I change the power output on the Geekvape AQ?

A1: Press the firing button rapidly three consecutive times. The LED light will flash to indicate the active power profile (Red for Low, Blue for Medium, Green for High).

Q2: Is the device fully waterproof?

A2: No. The device is rated for splash-proof and dust-resistant daily durability. It should not be fully submerged in liquids.

Q3: Can the pods be used with nicotine salts?

A3: Yes. The 0.8Ω and 1.2Ω Q-cartridges are specifically designed to optimize performance with nicotine salt formulations and high-PG e-liquids.
