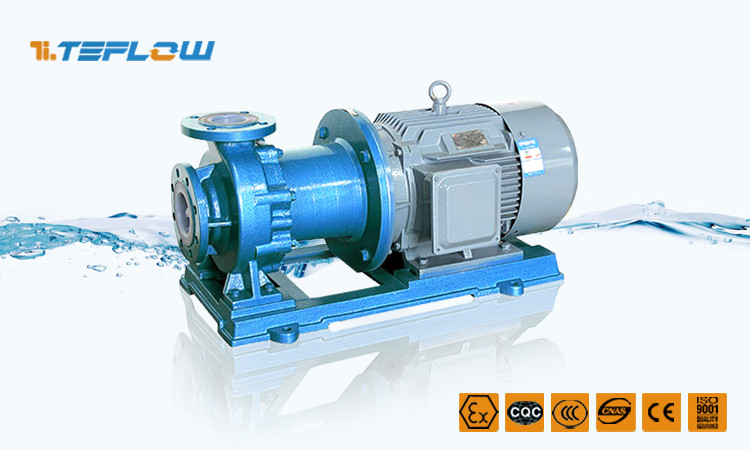

Fluoroplastic magnetic pump manufacturer PFA PTEF FEP material can provide

Name: Fluoroplastic magnetic pump manufacturer PFA PTEF FEP material can provide
Brand: Anhui Tenglong Valve Manufacturing Co.,Ltd.
SKU: Tradewheel_2682997
Price: 480 USD
Availability: InStock

FOB Price 480 - 500 USD / sets

Contact Now

Quick Details (View All)

Customized support	OEM, ODM	Brand Name	TEFLOW PUMP
Model Number	TMF	Place of Origin	Anhui, China
Application	Biofuel Industry, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Metal and Equipment Manufacturers, Pharmaceutical industry	Horsepower	2.2-55kw(29-73hp)
Power Source	Electric	Pressure	Low Pressure
Structure	Single-stage Pump	Outlet Size	25-80mm
Voltage	200v-600v,or customized, 200v-600v, 50Hz-60Hz or as customer required	Power	2.2-55kw(29-73hp)
Product name	1 Inch 3 Inch Chemical SS304 Magnetic Coupled Pump For Alcohol	Material	stainless steel(304,316,316L)
Type	TMF	Certificate	CE,COC,ISO9001
Warranty	12 months from date of use (except wearing parts)	Inlet*Outlet	(32-100mm)-(25-80mm)
Flow rate	3.2-200m3/h(53-3333l/min)	Head	20-80m(66-266feet)
Speed	2900r/min, 1450r/min,3600r/min or as customer requried

Product Details

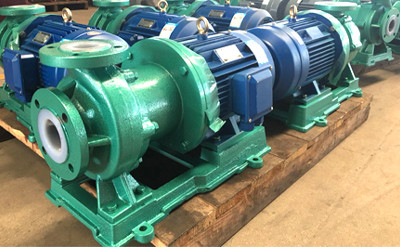

MAGNET PUMP

Anhui Tenglong pump valve Co., Ltd. is an enterprise specializing in the production of chemical fluorine lined magnetic pump for 37 years. All products of the company support customized drawings and OEM.

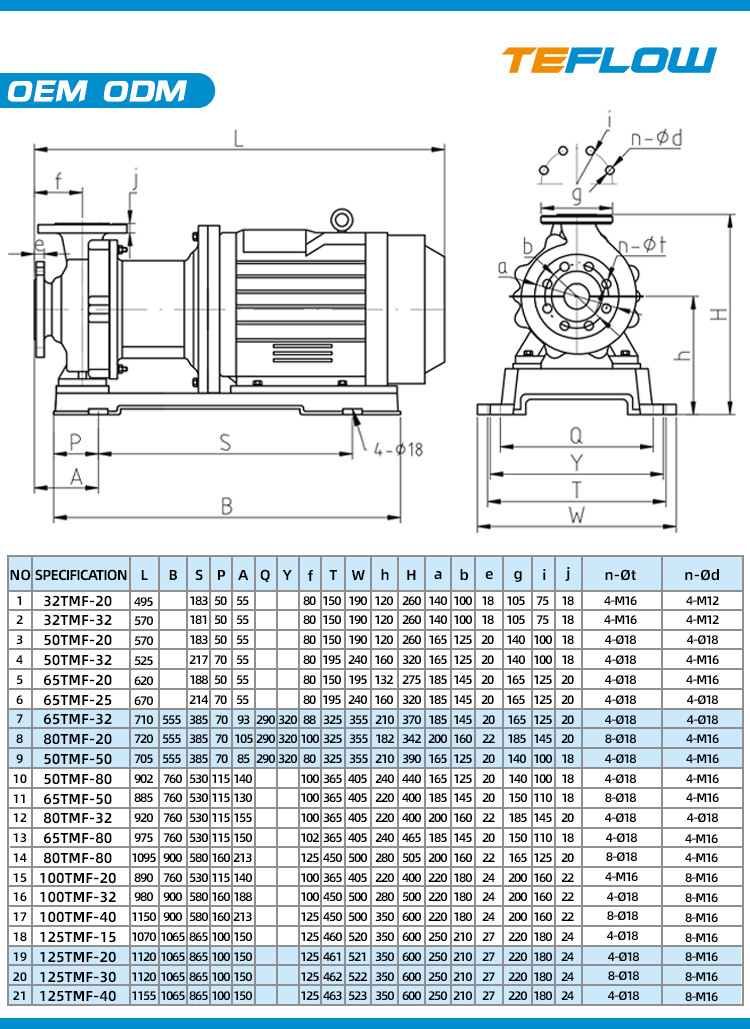

THE FOLLOWING“ TMF” IS THE PRODUCT MODEL SET BY OUR COMPANY

Type	Flow （m³/h）	Head m	Eff %	NPSHr m	Aperture mm	Speed r/min	Power kW
32TMF-20	3.6	20	18	3	32x20	2900	1.1
32TMF-32	3.6	32	20	3	32x20	2900	2.2
40TMF-20	6.3	20	28	3	40x25	2900	1.5
40TMF-32	6.3	32	26	3	40x25	2900	3
40TMF-50	6.3	50	30	3	40x25	2900	5.5
40TMF-80	6.3	80	35	3	40x32	2900	11
50TMF-20	12.5	20	56	3.2	50x32	2900	1.5
50TMF-32	12.5	32	46	3.2	50x32	2900	4
50TMF-50	12.5	50	43	3.2	50x32	2900	7.5
50TMF-80	12.5	80	36	3.2	50x32	2900	11
65TMF-20	25	20	55	3.5	65x50	2900	3
65TMF-25	18	25	57	3.5	65x50	2900	4
65TMF-32	25	32	52	3.5	65x50	2900	5.5
65TMF-50	25	50	46	3.5	65x40	2900	11
65TMF-80	25	80	47	3.5	65x40	2900	18.5
80TMF-20	50	20	45	4.5	80x65	2900	5.5
80TMF-32	50	32	48	4.5	80x65	2900	11
80TMF-50	50	50	56	4.5	80x50	2900	15
80TMF-80	50	80	53	4.5	80x50	2900	30
100TMF-20	100	20	54	5	100x80	2900	15
100TMF-32	100	32	56	5	100x80	2900	18.5
100TMF-40	100	40	51	5	100x80	2900	30
125TMF-15	170	15	37	5.5	125x100	2900	22
125TMF-20	170	20	38	5.5	125x100	2900	30
125TMF-30	190	30	45	5.5	125x100	2900	37
125TMF-40	200	40	57	5.5	125x100	2900	45
125TMF-50	200	50	60	5.5	125x100	2900	55

The TMF series can be customized into various products suitable for the working conditions according to the requirements of the working conditions.

TMF series can become ODM and OEM according to customer needs

1. High temperature type—G, the highest temperature resistance is 180℃.

2. Lye type—J, can transport alkaline liquid.

3. Granular type-K, can transport 10% suspended particles, uniformly dispersed suspension or emulsion.

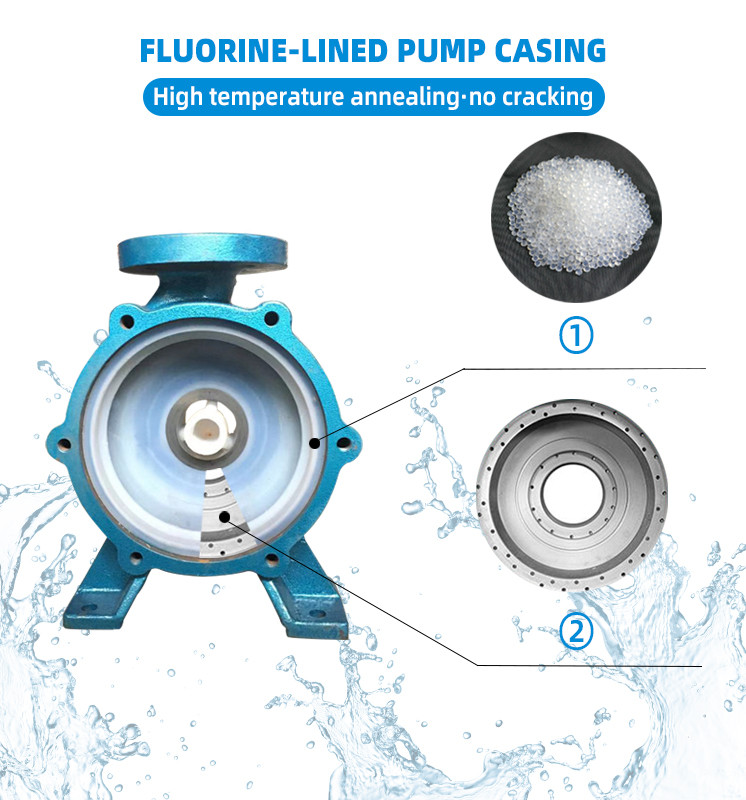

① Pigment-free and pure raw materials, materials can be selected from PFA/PVDF/ ETFE/ FEP, according to your needs.

②The "dovetail groove" is designed with dense casting points, the lining does not fall off, and it is naturally aged and indestructible.

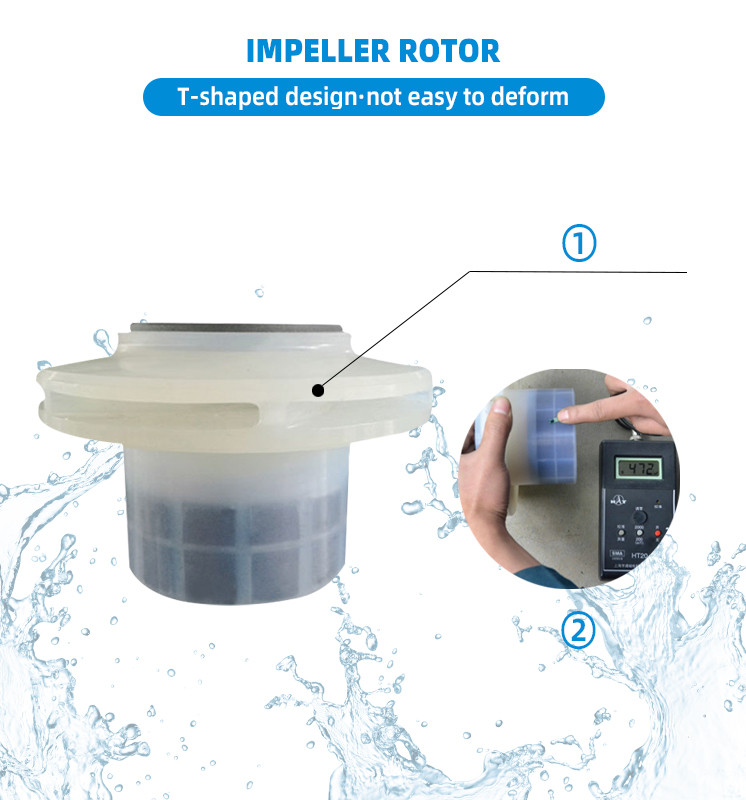

①The thickness is increased by 20%, and the mechanical strength is maintained at high temperature without deformation.

② Upgraded NdFeB magnetic double, up to 472mT.

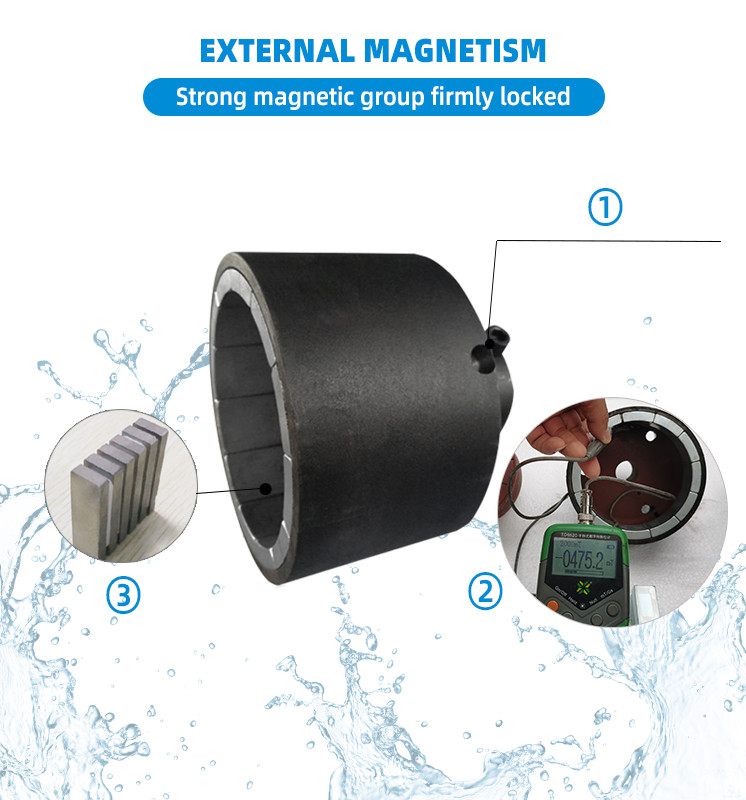

①The external magnet is used for dynamic balance correction to keep the operation lasting and stable and prolong the service life.

② The surface magnetic induction intensity is 475mT, and it is not stuck or demagnetized.

③ High grade NdFeB magnets

Material optional 38EH, temperature resistance 180℃

Material optional 38AH, temperature resistance 260℃

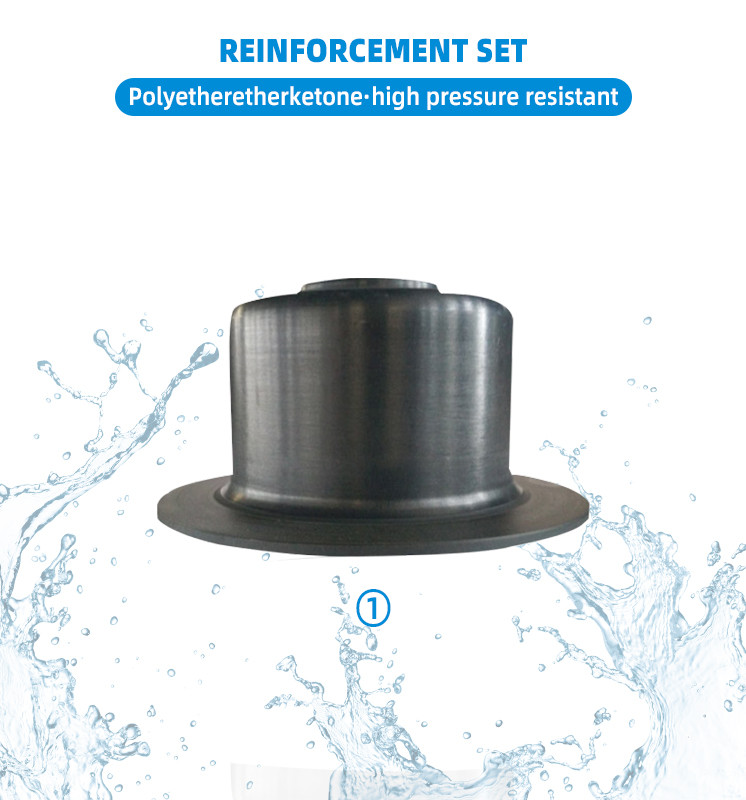

①Even if the temperature reaches 150 ℃, the reinforcement sleeve can withstand the pressure of 1.6Mpa.

BASED IN CHINA, FACING THE WORLD

We can provide you with various customized services

A powerful source factory to solve your series of worries

All sizes can be customized

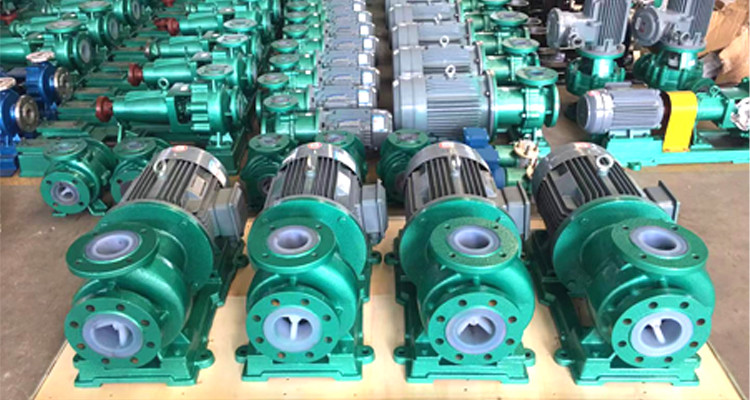

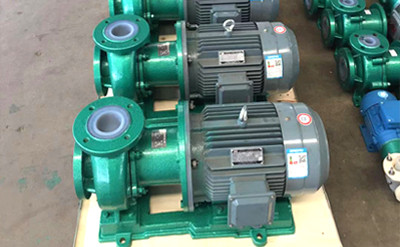

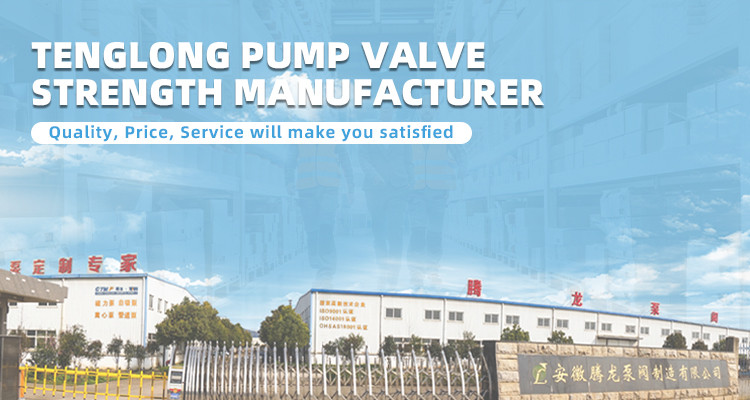

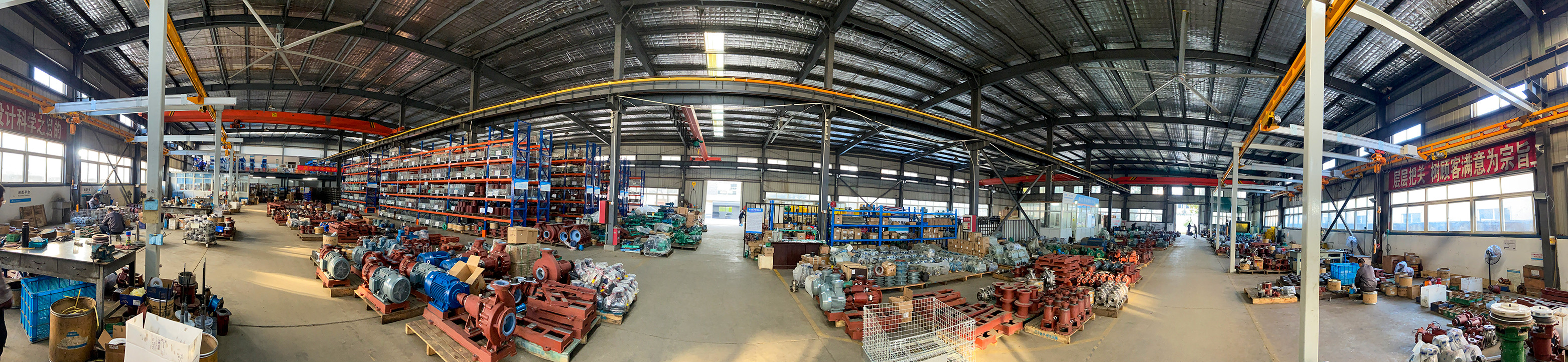

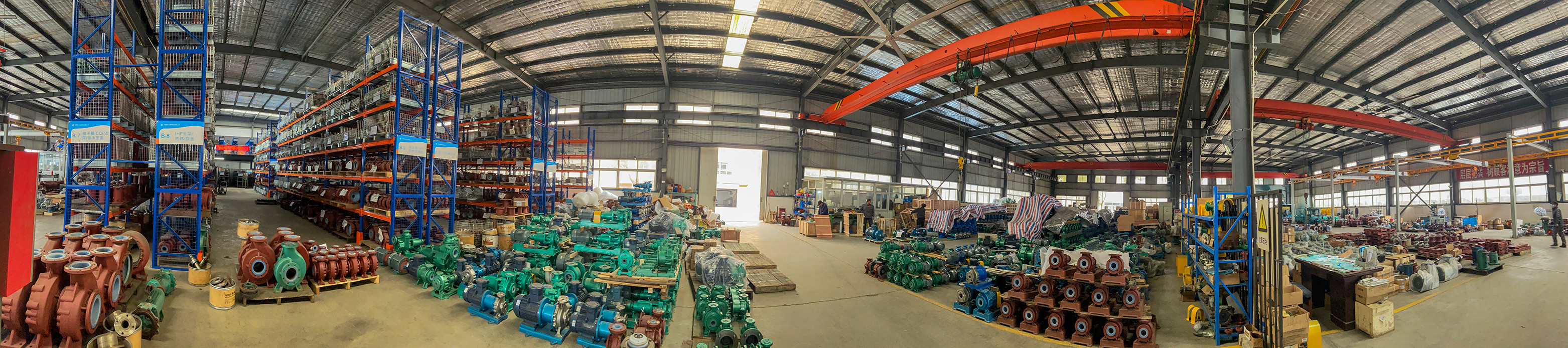

TENGLONG FACTORY PRODUCTION SCENE

37years of manufacturing experience manufacturers to solve your worries

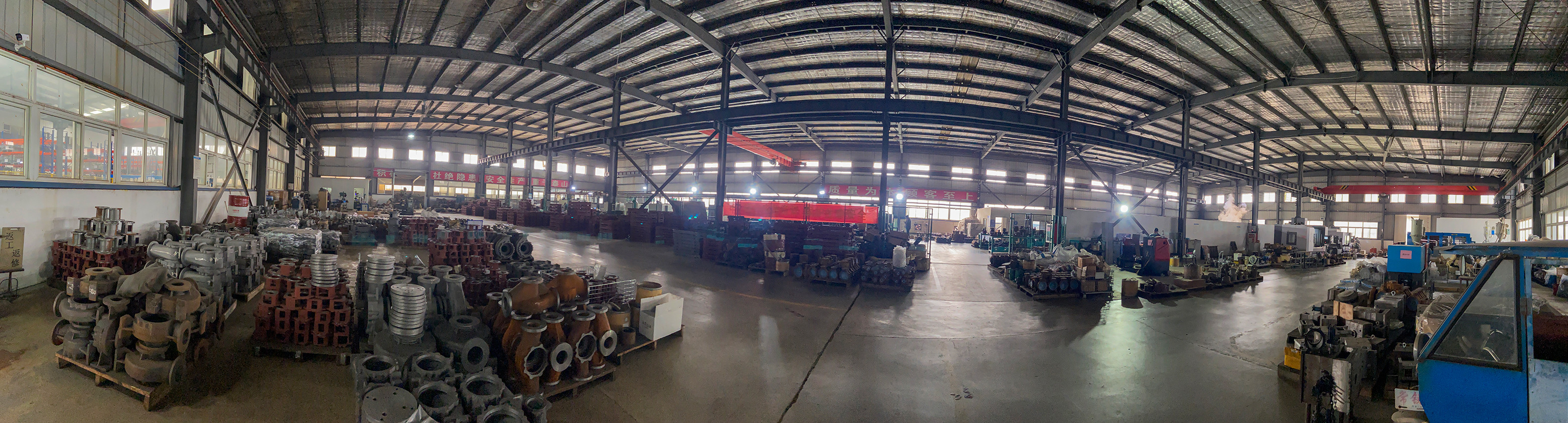

PROCESSING WORKSHOP

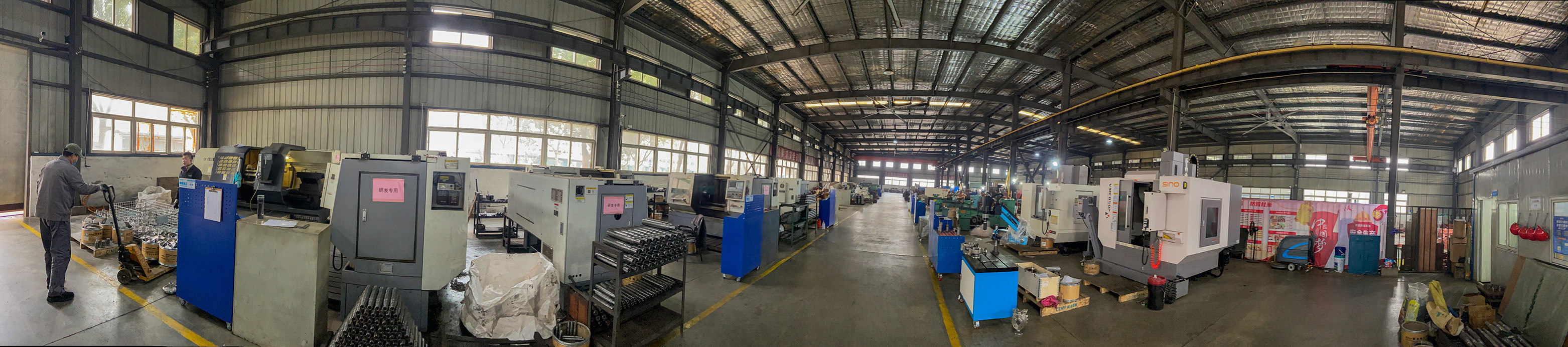

SEIKO WORKSHOP

ASSEMBLY WORKSHOP

DELIVERY WORKSHOP

STRONG PRODUCTION AND MANUFACTURING CAPABILITIES

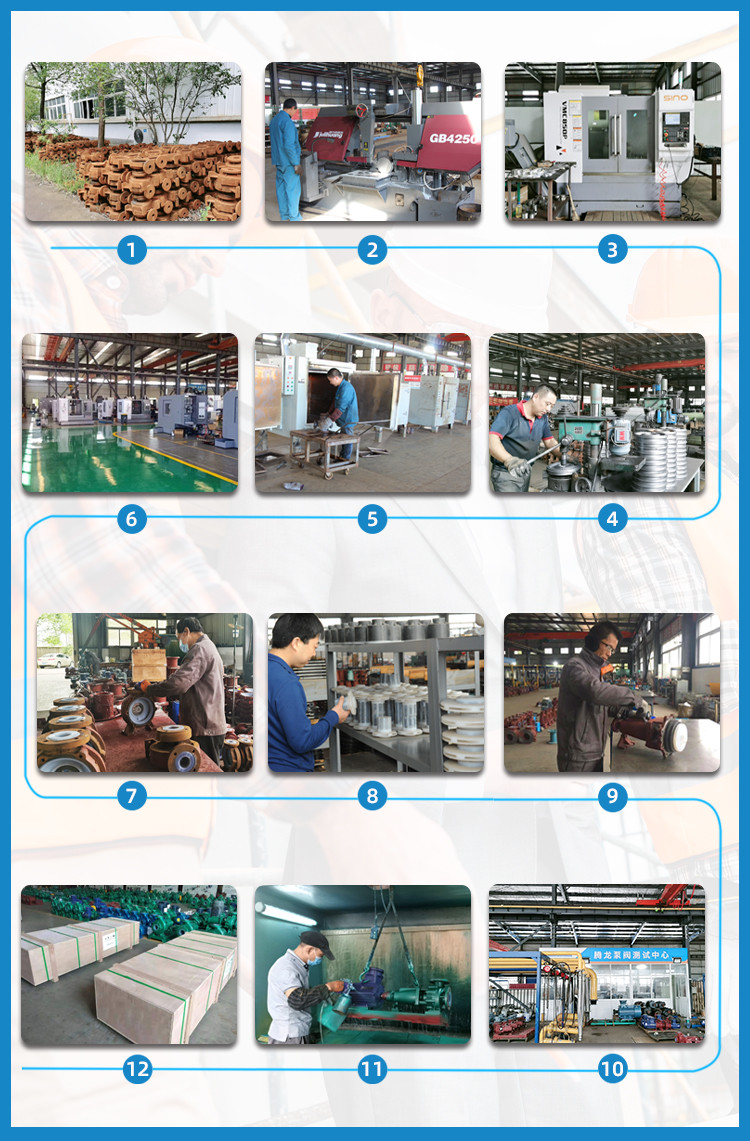

Outdoor aging treatment → raw material sawing machine cutting → CNC machining center processing → fitter drilling → fluorine-lined firing → CNC lathe precision → grinding and anti-rust paint → inspection and storage classification → product assembly → test center inspection → inspection through painting → Warehousing, packaging and delivery

PRACTICAL CASE

We serve more than 2,000 chemical companies around the world. We insist on paying attention to customer needs, inviting customers to participate, sharing value with customers, and growing together with customers.

We are your better choice

TENGLONG SERVICE

Standard and standardized service process

A number of utility model invention patents, national certificates, various qualification certificates

TENGLONGs OEM ODM is your best choice

Service Process

①Online inquiry ②Provide you with solutions ③Online order ④Production for you

⑤Logistics to your designated domestic port ⑥After-sales service ⑦Regular return visit

International logistics

different type of transportation for your choice

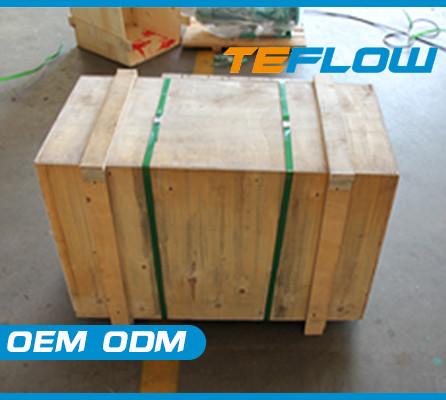

To ensure that you receive the goods safe and sound To provide you with customized packaging services.
①	Packaging method can be customized
②	Packing material can be customized
③	Packaging LOGO can be customized

EXPRESS FOR SAMPLE OR URGENTIY ORDERS

FAQ

1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer professional in magnetic pump with high quality for more than 37 years.

2. Q: How to customize pumps and mechanical seals ?
A: Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.

3. Q: How can I pay for my items? Which kind of payment can you provide? A: Usually by T/T, 30% payment after PI confirmed, the balance should be paid after inspection,before shipment. L/C at sight.

4. Q: What information should I offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______
Medium transmission temperature: _________
Capacity/Flow: ________m3/h
Head: _________m
Voltage: ____________V
Frequency: _________Hz
Power:_____________KW

5. Q: What is your minimum quantity?
A: One set is also welcomed to us.

6.Q:How long is warranty?
A:1 year for main construction warranty.

7.Q:What is your lead time? A:Normally 10 days. If client is in urgent, we have plenty of spare parts, we could finish assembling and testing in 3-5 days.

8.Q:What about shipment or delivery? A:Depnends on customers requirements, We can do EXW, FOB, CIF,etc.

9.Q:Who is in charge of after-sales? A:Teflow has several professional after-sales service teams, we will follow up the clients comments and suggest them good solutions. Solve clients problems ASAP.

TEFLOW Focus on Pumps
♥ If you need this kind of pump, please tell me more information about your need.
♥ If you havent found what you want, please tell me whats you need, TEFLOW have many kinds of pump, we can help you.
