Filter Press Belt for Juice Squeezing and Filtration

Contact Now

Quick Details (View All)

Model NO.	PP6868	Type	Woven Filter
Manufacturing Method	Manufacturing Cloth	Application	Dewatering, Filtration, Solid Liquid separation
Filter Fabric	Fruit Juice Squeezing	Filter Machine	Belt Filter Press
Width	1.5 Meter-4 Meter	Connection	Stainless Steel Clipper
Length	3 Meter - 80 Meter	Transport Package	in Roll
Specification	200cm x 30meters	Trademark	ECOGRACE
Origin	China	HS Code	59114000
Production Capacity	5, 000, 000PCS/Month

Product Details

Product Description

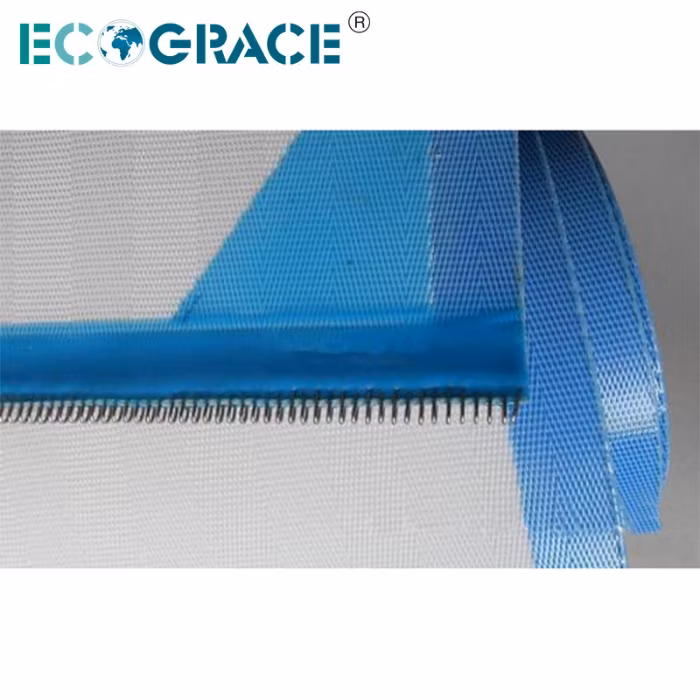

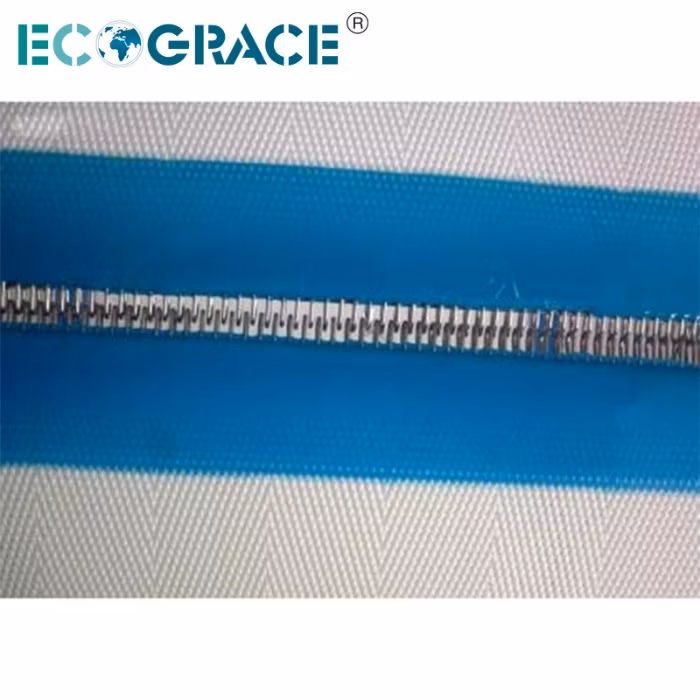

PE Spiral Screen Industrial Fabric Filter Press Belt , ECOGRACE Sludge Dewatering belt.
Dewatering process is the removal of water. This process is widely applied in different industries, most regularlly referred to construction and wastewater treatment plant when water is separated from solids through a variety of different pumping or filtering processes. During wastewater treatment, dewatering is the part of the process whereby sludges are reduced in volume and converted from a liquid to a solid product.

ECOGRACE Sludge Dewatering belts :
ECOGRACE Sludge Dewatering Filter Belt Products are widely applied in urban sewage plants, Paper Mills, Printing and Dyeing plants, Chemical plants, Electroplating plants, Pharmaceutical plants, Food industry , Ceramic factories, Mining and other industries.

Advantages:
1. Filter Belt surface is smooth that makes mud cake easily to peel while belt is easy to flush.
2 .Filter belt lengthwise are not easy to cause deformation, no arch, no fold.

3. High tensile strength, crease resistant , uniform mesh monofilament, strong flexibility.

ECOGRACE Sludge Dewatering Filter Belt obtains Long service life, with acid and alkali resistance, abrasion resistance, high
temperature (180 DEG C in the environment for a long time operation, etc.).

Packing and delivery

1. Bubble Film and waste thick fabric wrapping while protecting inside fabric.

2. Wrapped special fabric package outside. (Air shipping )

3. Composite wooden box(seashipping )

Our service

1. Samples: free samples with detail specification for you to choose.

2. We will make the exact specifications as customers requirements

3. Felt and fabric design solution will be provided within 24 hours By Technician Department.

4. There is a Strict quality control process during each production step. Ensuring the quality.

5. Regular customers visiting each year.

Application of ECOGRACE Dewatering Fabrics :

Products	Application	Feature
Sludge Dewatering Fabrics	1.Sludge dewatering system, squeeze juice 2. Iron and steel industry sludge dewatering 3. Living water dewatering 4. Chemical sludge dewatering 5. Paper drying,paper sludge dewatering 6. Pulp Washing 7. Industrial sludge dewatering 8. Building materials industry	Smooth surface Good stripping High stability, not easy deformation Network with herringbone design High filtration efficiency, not easy jam Durable,has a long service life. Heat resistance Strong steel clip seam

Model No.	Filament diameter(mm)		Density(root/cm)		Tensile strength(N/cm)		Weight	Thickness	Air permeability	Water permeability
Model No.	Warp	Weft	Warp	Weft	Surface	Joint	kg/m2	mm	m 3 /m 2 h	S/5L
2570	0.5	0.7	24	9	2000	900	1.23	1.9	6130	56.4
26808	0.5	0.8	27	8.5	2100	900	1.54	2.2	5120	60.3
29708	0.5	0.7	28	8.5	2200	900	1.53	2.1	4120	63
24903	0.5	0.9	23	5.5	2000	900	1.4	1.9	6800	48
18803	0.7	0.8	16.3	5.9	3200	1200	1.45	1.976	5500	70
16908	0.7	0.9	17	4.5	2200	900	1.7	2	7920	38.6
16905-1	0.7	0.9	16.3	5.5	3200	1200	1.52	2.263	6500	50
122103	0.9	1.1	12.5	3.8	3600	900	1.6	2.6	8610	32.4
141105	0.9	1.1	16	6.3	4500	1200	2.45	2.843	3800	90
