Type | whiteboard | Whiteboard Type | Interactive Whiteboard |
Folded | no | Brand Name | YCL TOUCH |
Model Number | YCL-Z102-B | Place of Origin | China |
Product name | Touch Screen | Application | School Teaching |

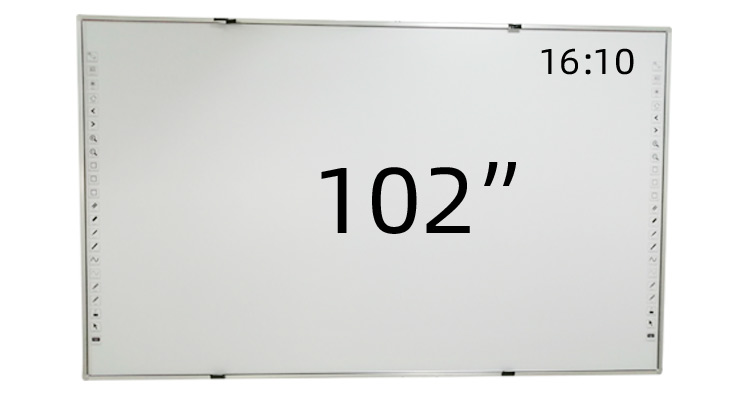

Size | 102 Inch | Material | Aluminum Alloy Frame |
Color | White | Usage | School Supplies |
Certificates | ROHS | Name | Aluminum Frame Magnetic Whiteboard |

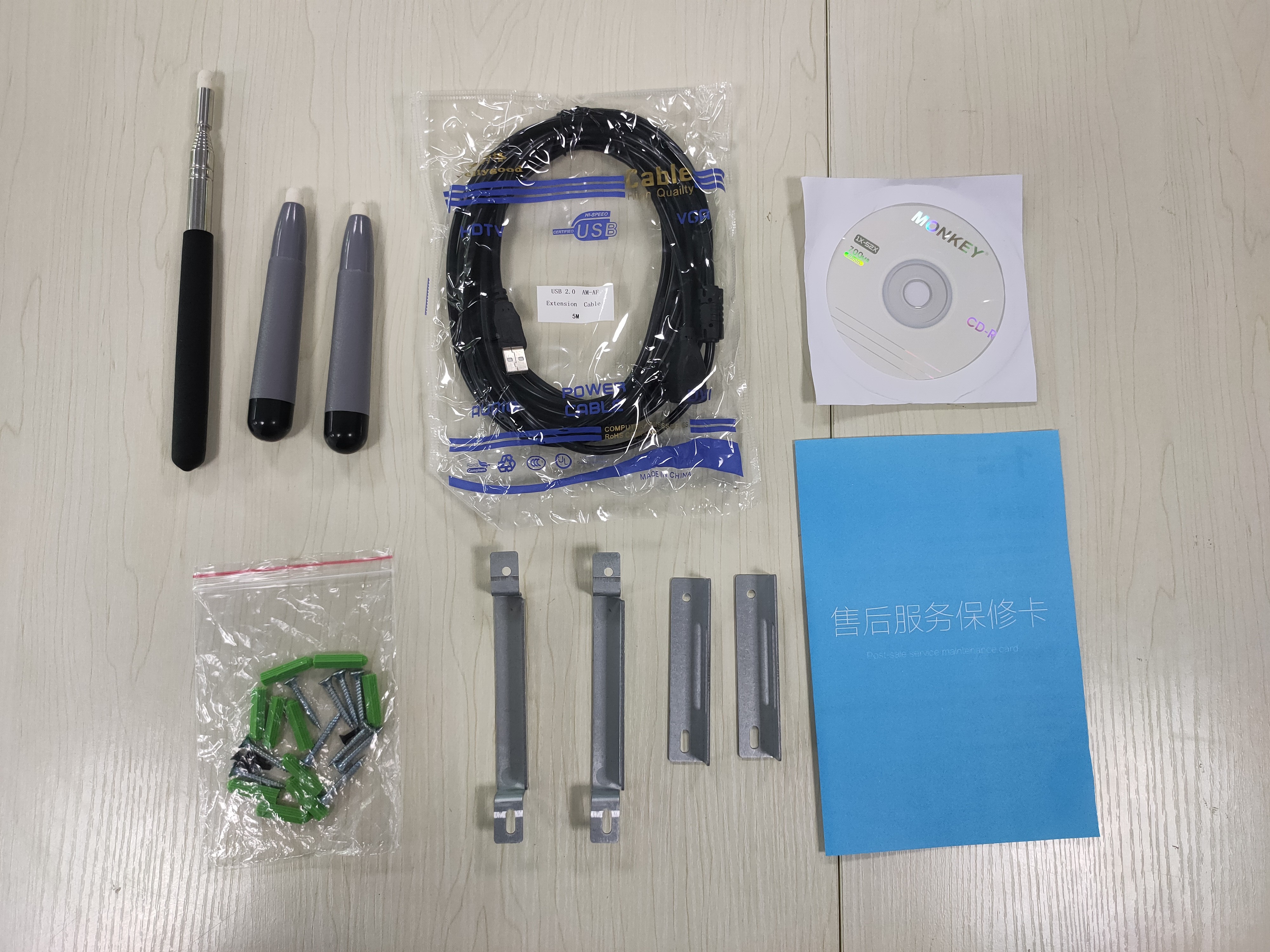

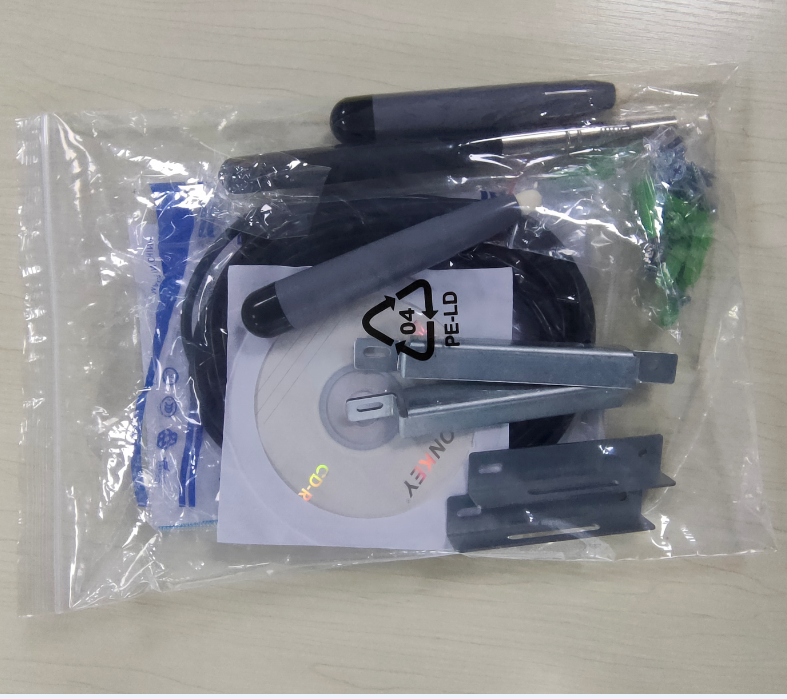

Technology | Infrared Technology | Accessory | Eraser+pen+magnets |
Model
|
Z102-B
|
|

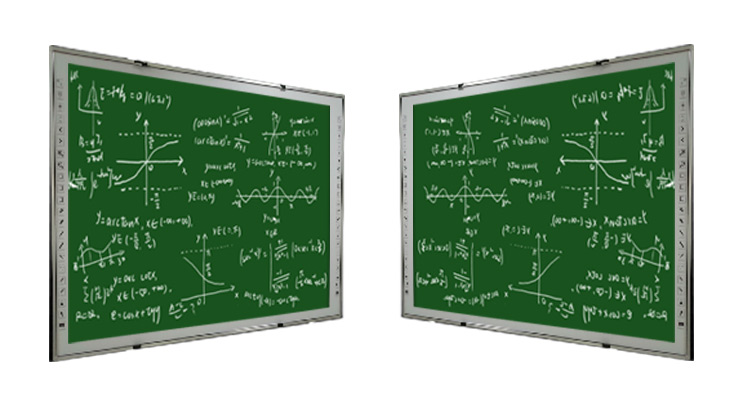

Appearance
|
Frame size
|
(2213±2.0)mm*(1355±2.0)mm
|
Touch size
|
(2169.4±2.0)mm*(1311.4±2.0)mm
|
|
Projection size
|
(2086.6±2.0)mm*(1311.4±2.0)mm
|
|
Screen percentage
|
95%
|
|
Proportion
|
16:10
|
|
Shortcut keys
|
Double-sided 22 shortcut keys
|
|
Overall material
|
Aluminum Alloy
|
|
Color Craft
|
Silver, sandblast oxidation
|
|
Panel
|
Extruded board
|
|
Interface
|
Type A usb
|
|
Touch features
|
Support Points
|
Drive-free 16 points
|
Touch Mode
|
Support any non-transparent object touch, including
fingers, stylus, plate eraser, etc.
|
|
Support resolution
|
Drive free mode: 32768x32768
|
|
Response speed
|
≤10ms
|
|
Minimum identification point
|
4mm*4mm
|
|
Scan frame rate
|
≥100HZ
|
|
Touch feature
|
Support touch object size recognition
Sensor discontinuous damage can work normally within 10% |
|
Support System
|
Support Win7, Win 8, Win10, Windows XP, Mac OS
|
|
Machine
|
Net Weight
|
(19.5±2)kg
|
Gross weight
|
(24.5±2)kg
|
|
Package dimensions
|
(2280±4.0)mm*(1415±4.0)mm *(90±4.0)mm
|
|
Humidity limit
|
Work Storage humidity: 90% RH at 40 ° C without
condensation
|
|
Temperature limit
|
Working temperature: -10 ° C ~ 50 ° C Storage
temperature: -20 ° C ~ 60 ° C
|
|
Light resistance
|
10000Lux
|
|

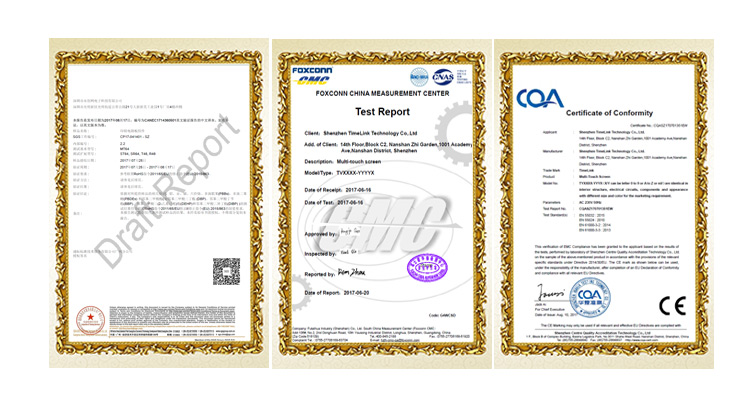

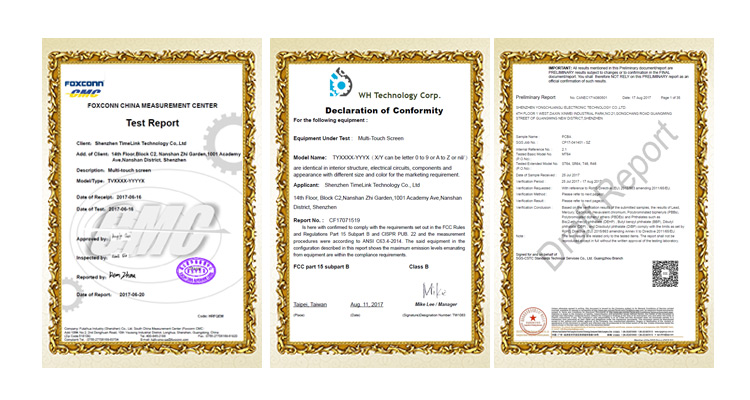

Certification
|
C-Tick;CE;FCC;ROHS
|
