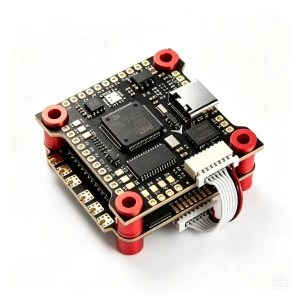

F405 Flight Controller FPV Drone Flight Control Board for Long Range Quadcopter

F405 Flight Controller FPV Drone Flight Control Board for Long Range Quadcopter

PortShenZhen
PackagingDimension:3636*7mm
Lead Time7
Contact Now

Product Details

MCU:STM32F405

Input:3-8S LiPo Battery

Mounting Dimension:30.530.5mm (Hole Diameter 4mm)

IMU:ICM42688p

Dimension:3636*7mm

Firmware:STM32F405

Black Box:16MB

Built-in Barometer & Buzzer Port

I2C Interface Reserved

OSD Chip:AT7456E

DJI Air Unit Interface Reserved

USB Port:Type-C

UART Channels:UART1-UART5 (5 Groups)

BEC Output:5V/3A & 12V/2.5A

LED Interface Reserved

ESC Signal Channels:M1-M8

Weight:7g
