Deep Cycle 12V 24V 48V 100ah 200ah 250ah 300ah Lithium Battery for Golf Cart

Quantity	1 - 49	50 - 99	100+ - 100+
Price	US $370.00	US $326.00	US $300.00

Contact Now

Quick Details (View All)

Certificate	Un38.3/MSDS/CE/RoHS	Warranty	3 Years
Protection	PCB/PCM/BMS	BMS	Build-in Smart BMS
Lifecycle	More Than 2500 Deep Cycles at 1c	Case	Blue Film or Metal Case
Company Type	Reputed Factory	Charger	Available
Discharge Rate	Medium Discharge Rate	Shape	Flat Battery
Electrolyte	Li-ion	Installation	Packaged
Transport Package	Packed by Foam and Case and Carton	Specification	lifepo4 and NMC flat pouch cell
Trademark	OEM	Origin	Hunan, China
HS Code	8507802000	Production Capacity	10000packs/Day

Product Details

Product Description

deep cycle 12V 24v 48v 100ah 200Ah 250ah 300ah lithium battery for golf cart

CTS is a professional manufacturer engaging in research,development,production,marketing and service of lithium ion pouch battery cell, battery pack and battery management system.

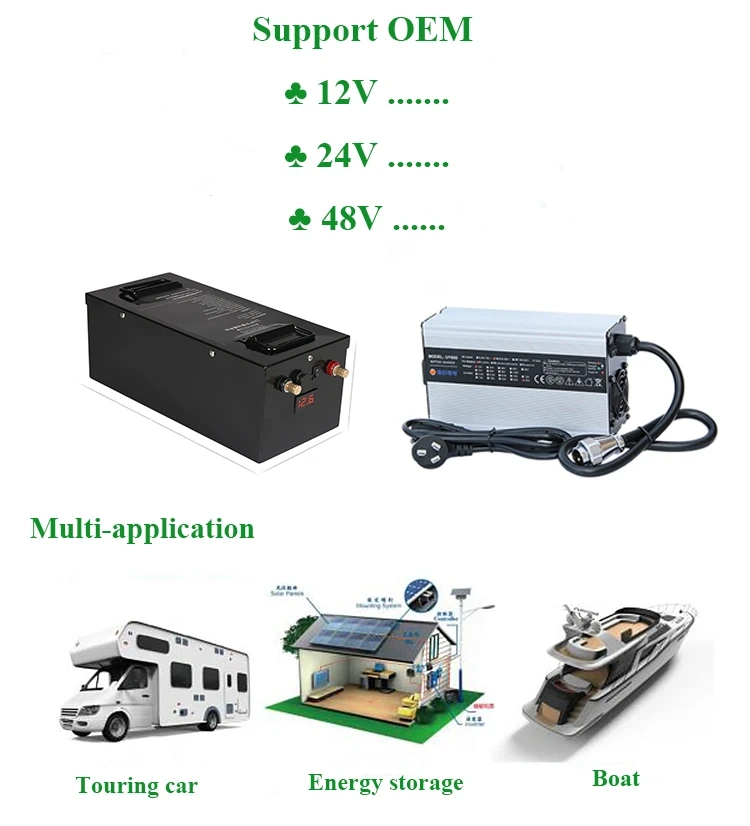

LiFePo4 and NMC(Li(NiCoMn)O2) are the major material. We have more 30 types of cells, and could make OEM battery pack from 12v-400v, 10-500ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.

1. Battery Parameter. 24V 48V 100Ah 200Ah lithium ion LiFePO4 battery pack
We have battery packs from 12v to 400v with 12ah to 500ah, here taking 48v 100ah LIFEPO4 battery as an example.

More battery packs are available, please check details via our website ctsbattery.

51.2V 100Ah lithium LiFePO4 battery pack
Mechanical	Cell & Method	LiFePO4, 16S4P
	Dimension(LWH)	370mm x 290mm x 248mm
	Weight	40KG
Electrical Characteristics	Rated Capacity	100Ah
	Min Capacity	100Ah
	High Rate Discharge Capacity	> 90% Rated Capacity
	Discharge Capacity @ -20ºC(-4ºF)	> 70% Rated Capacity
	Norminal Voltage	51.2V
	Energy	5.12 kWh
	Internal Impedance(@ 1000Hz.)	≤20 mΩ
	Cycle Life	>5000 Cycles @ 1C 85% DOD
	Months Self Discharge	≤ 5% @ 25ºC(77ºF)
	Efficiency of Charge	100% @ 1/3C
	Efficiency of Disharge	95% @1C
Standard Charge	Max Charge Voltage	58.4V
	Charge Current	1/2C, 50A
	Max Charge Current	100A
Standard Discharge	Standard discharge Current	1C, 100A
	Max Discharge Current	3C, 300A
	Discharge Cut-off Voltage	40V
Environmental	Charge Temperature	0 ºC to 45ºC(32ºF to 113ºF) @ 65±20%Relative Humidity
	Discharge Temperature	-20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity
	Storage Temperature	≤ 1 Month, -20ºC to 60ºC(-4ºF to 140ºF) @ 65±20%Relative Humidity
	Storage Temperature	≤ 6 Month, -20ºC to 30ºC(-4ºF to 80ºF) @ 65±20%Relative Humidity

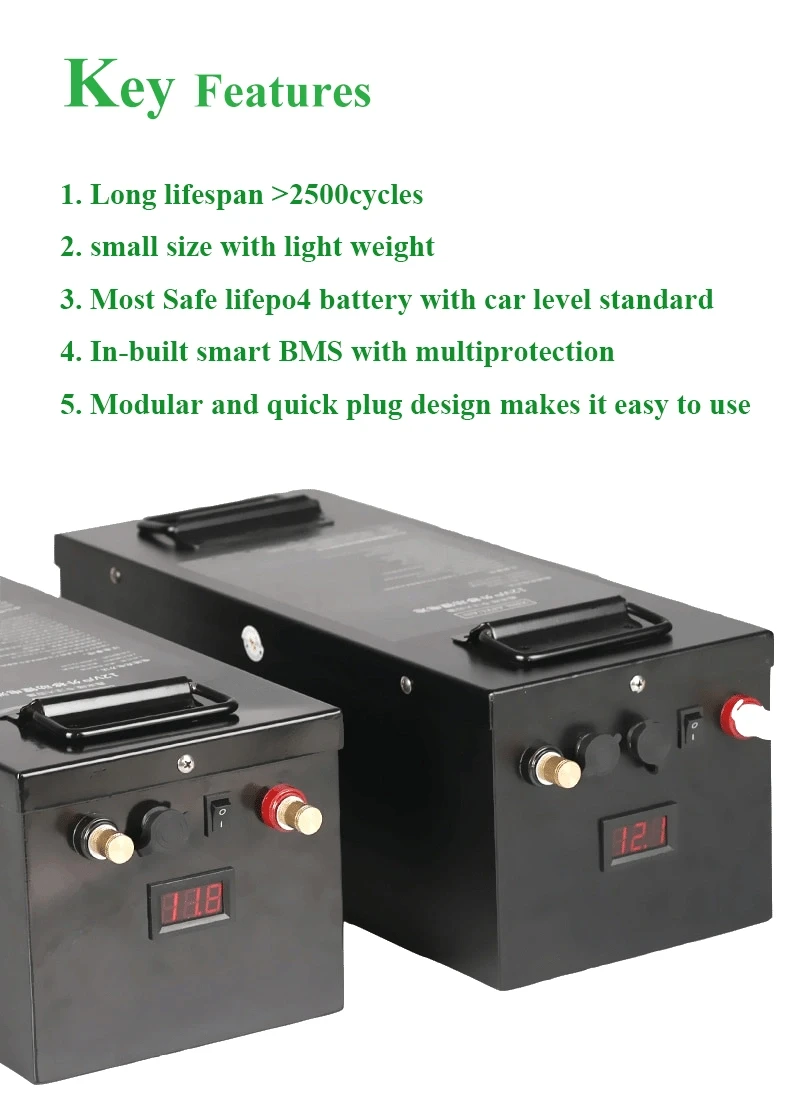

2. Main Features of Our EV Battery Cells. 24V 48V 100Ah 200Ah lithium ion LiFePO4 battery pack

1. High energy density

	lifepo4 battery cell	LiNiCoMn battery cell (ab.NCM battery)
weight energy density	150wh/kg	200wh/kg
volume energy density	280wh/L	334wh/L

2. Low internal resistance

Methods of reducing the internal resistance:
**Using carbon coated aluminum foil
**Multiple electrode tab design
**Increasing the width of electrode tab
**Coating PVDF on battery separator
**Pore-creating artificially

3.Long lifespan
Usable for more than 2,000 charge-discharge cycles
> 4 times than lead acid battery
> 2 times than li ion battery

4.Excellent performance in high and low temprature
Usable in extremely cold and hot environments (-20 to 60 ºC)

3. Some Related Application Case. 24V 48V 100Ah 200Ah lithium ion LiFePO4 battery pack

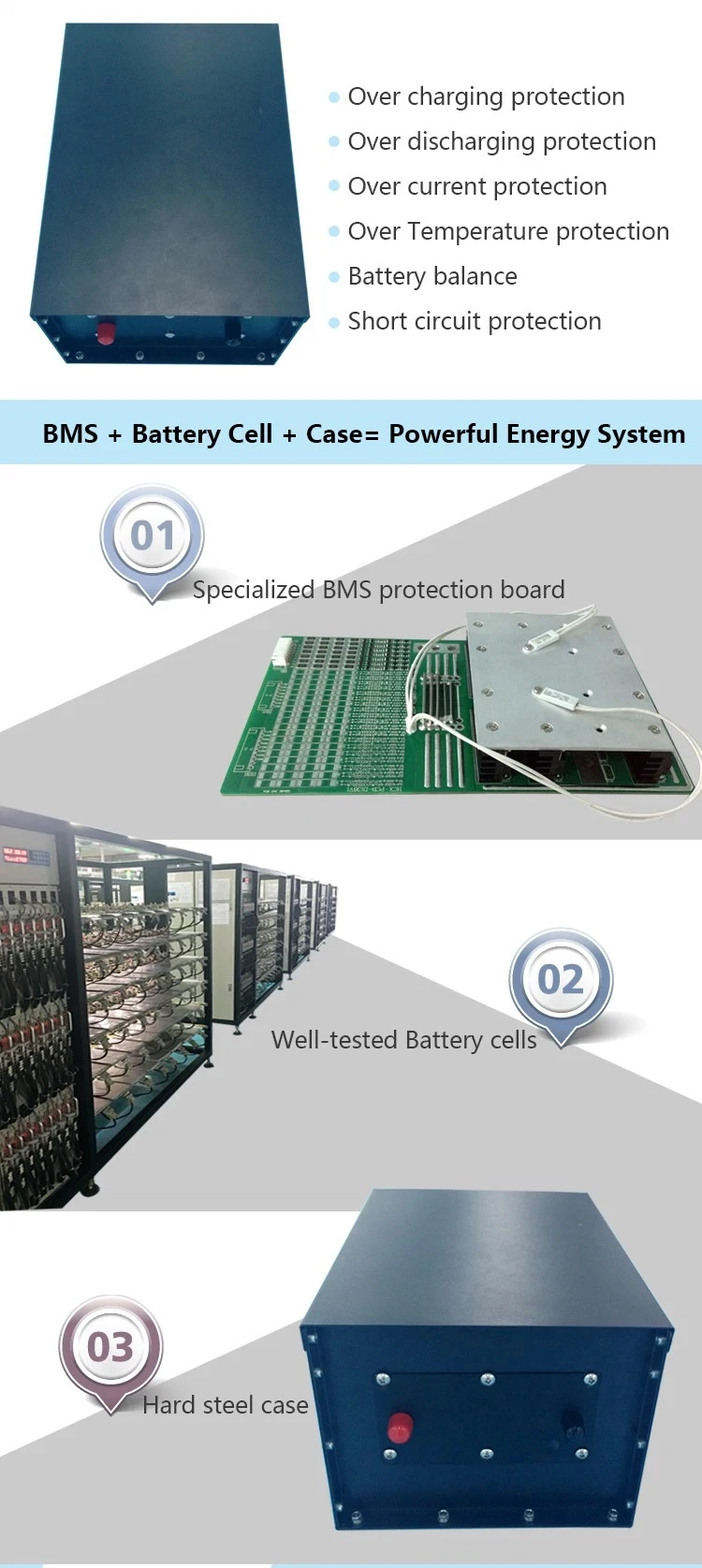

Each battery module in parallel is fixed with steel parts,then put them together by pull rob.After this,there are covers to protect battery with case and BMS.

4. More other battery packs for motor cycle, e-scooter (36V, 60V, 72V)

5. Our factory

6. Our battery cells catalog

CTS uses Lithium Iron Phosphate (LiFeP) batteries for electric vehicle conversions. The battery cells utilize the latest advancements in nanotechnology.

All of our battery packs(12v-400v,12ah-500ah) are made of those following lithium ion pouch cells. These cells are very safe in normal operation, DO NOT cause fires as the early Lithium Phospate batteries.

The selected batteries solve the Safety concerns of being in an Electric Vehicle (EV) / Electric Car Conversion Kit, every cell has a built-in safety device if punctured or damaged, will vent to the atmosphere making the cell much safer.

Compared to lead acid battery, it is 4 time lighter in weight , and 4 time longer in lifespan.
Compared to li ion battery, it is 2 time lighter in weight , and 2 time longer in lifespan.
Compared to lithium ion square battery, it is 0.5 time lighter in weight , but much safer when using.

Type of battery

Application area

Item

Capacity(Ah)

Nominal Vltage(V)

Max charge current(A)

Max discharge current(A)

Weight(g)≤

Demension D*W*L (mm)≤

Working Voltage range(V)

Lifespan @ 1C discharge 100%DOD ≥

Note

LiFePO4

Electric car
E-bike
E-scooter
E-tool
Solar storage

F65160227

20AH

3.2

465g

6.5*160*227

2.5~3.65

2500

F83142240

20AH

3.2

490

8.3*142*240

2.5~3.65

2500

HOT SALE!!

F85137232

25AH

3.2

560

8.5*137*232

2.5~3.65

2500

F90133200

25AH

3.2

580g

9.0*133*200

2.5~3.65

2500

F90160222

30AH

3.2

650

9.0*160*222

2.5~3.65

2500

F10160222

38AH

3.2

770

10*160*222

2.5~3.65

2500

NMC

N1365132

10AH

3.7

210

13*65*132

2.8~4.2

2000

N8865190

10AH

3.7

205

88*65*190

2.8~4.2

2000

N7688190

12.5AH

3.7

270

7.6*88*190

2.8~4.2

2000

N8688190

17.5AH

3.7

238

8.6*88*190

2.8~4.2

2000

N90133200

20AH

3.7

496

9.0*133*200

2.8~4.2

2000

N92133200

25AH

3.7

480

9.2*133*200

2.8~4.2

2000

N95133200

30AH

3.7

540

9.5*133*200

2.8~4.2

2000

N80156241

32AH

3.7

600

8.0*156*241

2.8~4.2

2000

HOT SALE!!

N84156241

37AH

3.7

630

8.4*156*241

2.8~4.2

2000

N11100310

50AH

3.7

740

11*100*310

2.8~4.2

2000

N80188236

40AH

3.7

745

8.0*188*236

2.8~4.2

2000

7. CTS Customer Feeback

We are happy with your battery quality. Ive also been very happy with your good support,
lets continue discussions and work on more,tks.----Michael (from Berlin,Germany)

8. Order Information

Sample is avaliable and welcome.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 10 working days for sample order, 30 working days for mass order.

9. FQA

Do the batteries have a warranty?

§ Yes, currently 2 years; extended warranties are also available.

How long do the batteries last?

§ 10 years / 200,000 KM (124,275 miles) [calculated based on 100km battery pack]

§ 2000 charges & discharges at 100%.

§ This means approximately 10 years of normal use 200,000 KM. (124,275 miles)
§ Normal use is defined as 20,000km/year. (12,500 miles/year)

Do you use Lead Acid Batteries?

NO WE DO NOT! Our reasons:
§ Lead Acid Batteries do not allow as many charge & discharge cycles as advanced lithium batteries
§ Lead Acid batteries degrade after 300 charge cycles in an electric car until they expire, approximately 1.5 -2 years of driving
§ Not cost effective to change your battery pack every two years
§ Lead Acid is HEAVY, and reduces your range, doesnt supply continuous power
