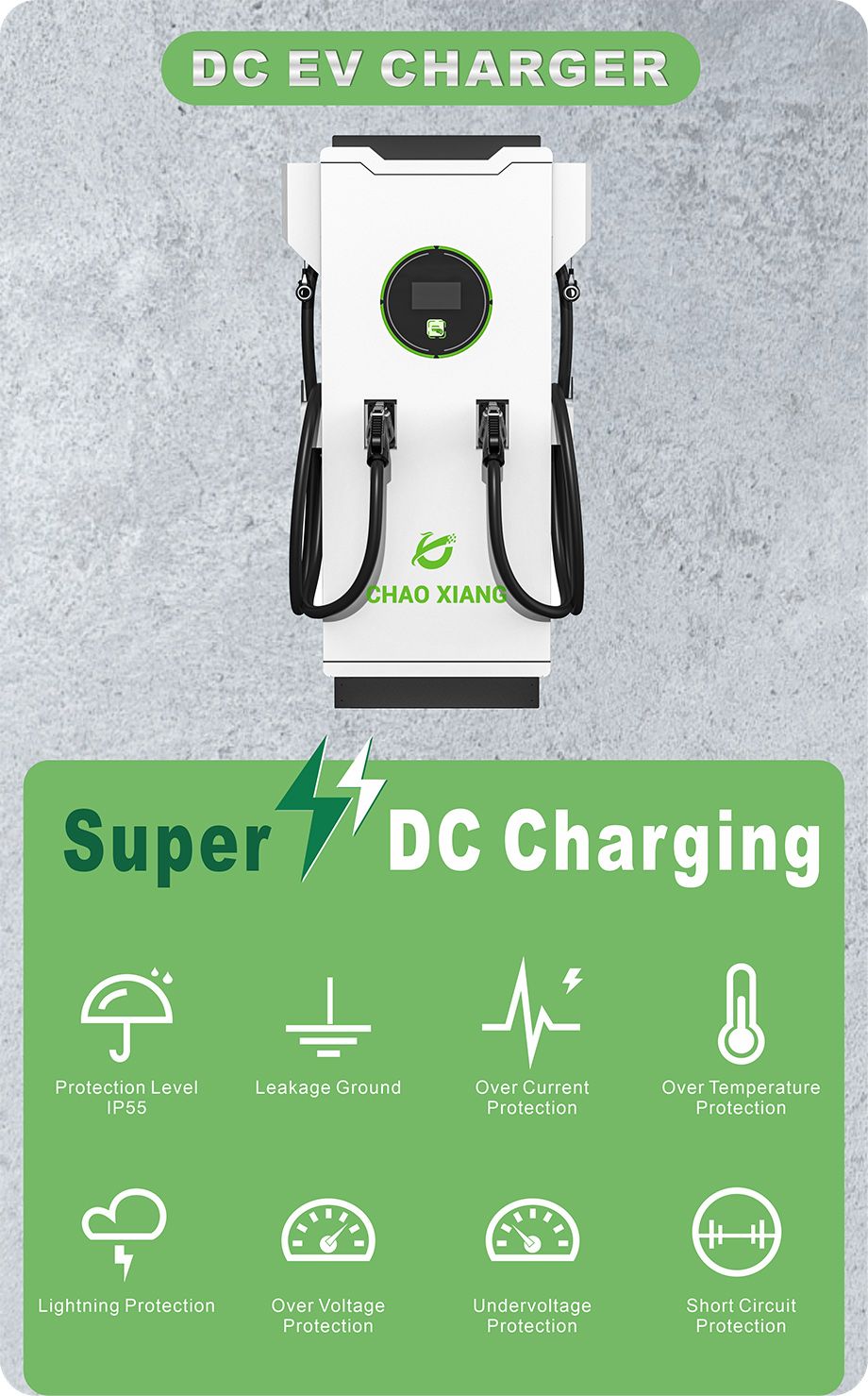

DC Fast EV Charging Station 120kW TUV Certified PEA Listed EV Charger

FOB Price 4700 - 13000 USD / 1 piece

Port	SHANGHAI
Packaging	Wooden Box
Lead Time	15-30 Days

Contact Now

Quick Details (View All)

Place of Origin

Huzhou, Zhejiang

Color

White

Product Details

Product Specification

Model	CXE-D60K	CXE-D120K	CXE-D160K	CXE-D180K	CXE-D240K
Output Power	60kW	120kW	160kW	180kW	240kW
Current Range	0～200A	0～250A
Input Voltage	AC400V±20%
Input Frequency	50/60Hz
Output Voltage	200-1000VDC
Constant Power Range	300-1000VDC
Charging Gun	Dual Guns with 5m charging cable (length customized available)
Communication Method	4G/LAN/WiFi
Stable Voltage Accuracy	≤0.5%
Stable Current Accuracy	≤1%
Human Machine Interface	7-inch color touchscreen
Efficiency	≥96%
Power Factor	≥0.99
Current Sharing Coefficient	≤5%
Harmonic Current	≤5%
Noise	≤65db
Metering Accuracy	Level 1
IP Grade	IP55
Standby Power	≤N*50W
Cooling	Fan cooling
Electrostatic discharge immunity	Class 4
Surge immunity	Class 4
Working Temperature	-30℃～50℃
Working Humidity	5%～95% no condensation
Altitude	≤2000M
Product Dimension W×D×H	950MM572MM1800MM

Product Description

Overseas Shipment Public Commercial DC Fast Steady Performance New Energy Electric Vehicle Charging Station OEM ODM Available

We support EV charging station / EV charger with different power according to customer requirements.

Can provide charge pile/car charger that meets the following standards

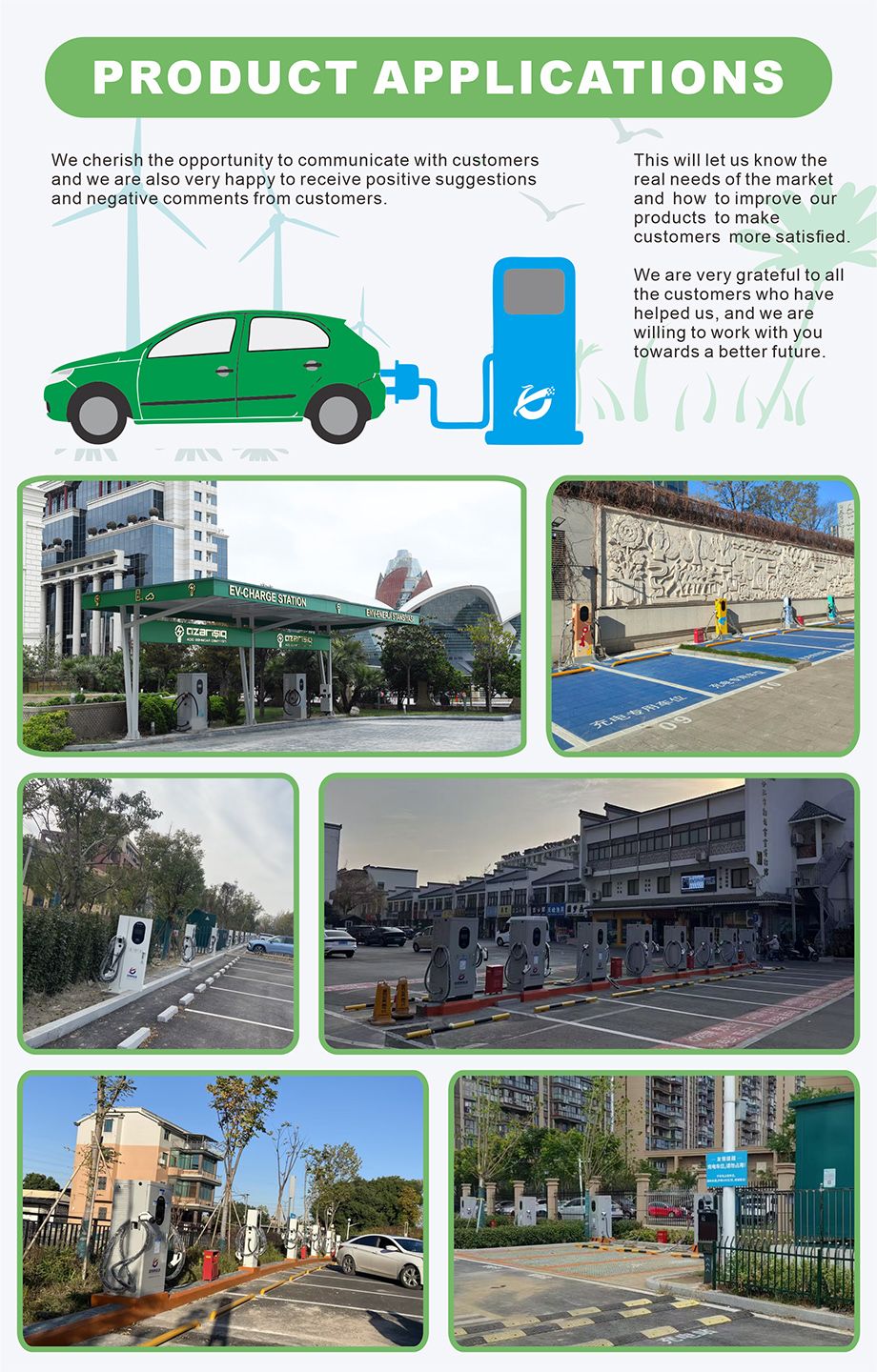

EV CHARGING STATION CASE APPLICATION

FAQ

Q1: Are you trading company or manufacturer?

A: We are source factory of EV chargers and has been recognized by national high-tech enterprises and has more than 100 patented technologies.

Q2: How can we guarantee quality?

A: Always a pre-production sample before mass production; All mainbord are tested before assembly and each charger is fully tested before shipped.

Q3: How long is the lead time?

A: The lead time is 5-30 working days, it depends on the quantity, storage status and production scheduling.

Q4: What kinds of payment do you accept?

A: We have T/T and L/C etc. If you need the detailed terms of payment, pls contact us.

Q5: How long to fully charge a car?

A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.

Q6: What is your warranty for EV charger?

Generally 1-2 years.If you have special requirements please contact our customer service.
Q7: Can you print our logo on the products?

A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard. But there will be a MOQ for custom design.
