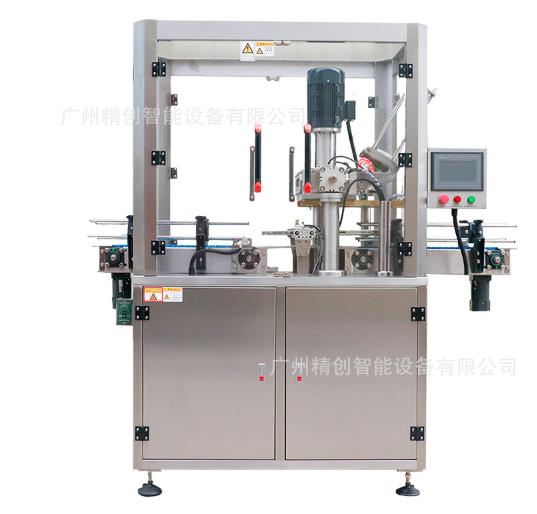

Automatic vacuum nitrogen filling can sealing machine

Product Details

Specifications of automatic vacuum nitrogen filling can sealing machine

Production capacity 6～7 cans/min

Residual oxygen ＜3%

Sealing station 1

Applicable tank type Tank diameter mm Φ73～Φ127 (300～502)

Applicable tank type Tank height mm 100-190

Compressed gas consumption m3/min 0.3

Compressed gas requirement 0.6～0.8MPa; Φ8 trachea

Host power 4 (including vacuum pump) Kw

Power requirements: three-phase five-wire system 380V/50HZ

Total weight 700kg

Host shape 1.9×0.85×1.7M

Performance characteristics

(1) The appearance and main parts of this machine are made of 304 stainless steel;

(2) The sealing parts of the vacuum system adopt vacuum special fluorine rubber sealing rings, which are resistant to high temperature and leak-proof;

(3) Man-machine interface operation, PLC control system, simple operation and orderly action flow;

(4) Touch screen Xinjie, programmable controller Siemens;

(5) The position detection photoelectricity all adopts the "Omron" brand;

(6) Pneumatic actuators, solenoid valves and cylinder position detection sensors all use Yadeke brand;

(7) The vacuum pump adopts the domestic vacuum pump;

(8) Double-roll seal structure is adopted, and the sealing quality is good;

(9) The roller adopts the latest materials and heat treatment methods, the service life is greatly improved, the curling is smooth and even, there is no yellowing or scratching, and the leap of sealing quality is achieved;

(10) According to the requirements of sealing quality and residual oxygen, it can be easily changed and set on the man-machine interface;

(11) A large number of oil-free and maintenance-free bearings are used to make the equipment cleaner and ensure the clean working environment of the production workshop;

(12) All actuators are driven by cylinders and motors, without oil seals;

(13) The human-machine interface provides failure alarm functions such as no cover, missing cover, blocking, no falling, servo, cylinder, etc., which makes the failure clear at a glance, greatly reducing the troubleshooting time and improving production efficiency;

(14) Equipped with automatic timing dust suction function to prevent the accumulation of dust inside the vacuum hood.

(15) Specially in the vacuum and nitrogen filling method, effectively avoid dust flying again.
