| MOQ | 1 Set |
| Port | SHANGHAI |
| Packaging | Wooden carton |
| Lead Time | 15 workdays |

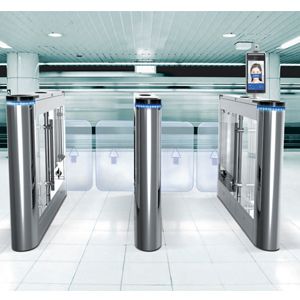

Automatic Face Recognition High Security Optical Swing Turnstile Barrier Gate BS-BZ08
Technical Data:
|
Power supply: |
220VAC 50Hz/ 110V 60Hz |
|
Motor power: |
24VDC 40W |
|
Working temperature: |
-20℃~+70℃ |
|
Open time: |
0.3s-1s(Adjustable) |
|
Access rate: |
25-35 person/minute |
|
Material: |
304 stainless Steel, thickness 1.5mm |
|
Working sound: |
≦65dB |
|
Access width: |
600-900mm |
|
Communicate terminal: |
RS485 |
|
Open signal: |
Passive signal( Relay dry contact) |
|
Working environment: |
Indoor |
|
Sensor Pairs: |
6 |
Features:
1. Size: 1200*180*980mm;
2. Material: stainless steel 304 thickness: 1.5mm;
3. Operating temperature:-20℃-+70℃;
4. Sensor pairs: 6
5. Open signal：Passive signal (Relay dry contact)
6. Communicate terminal：RS485
7. Pass rate: ≤35 persons/min
8. Open time: 0.3s～1s（Adjustable）
9. Pass width: 600-800mm;
10. Motor: 24VDC brushless 40W

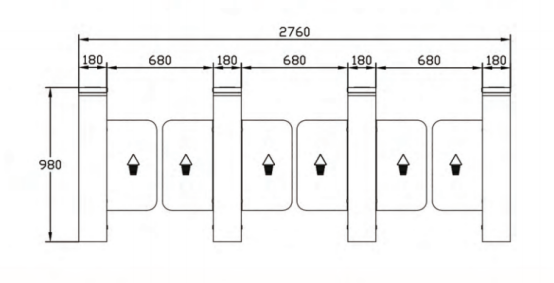

Dimensions:
