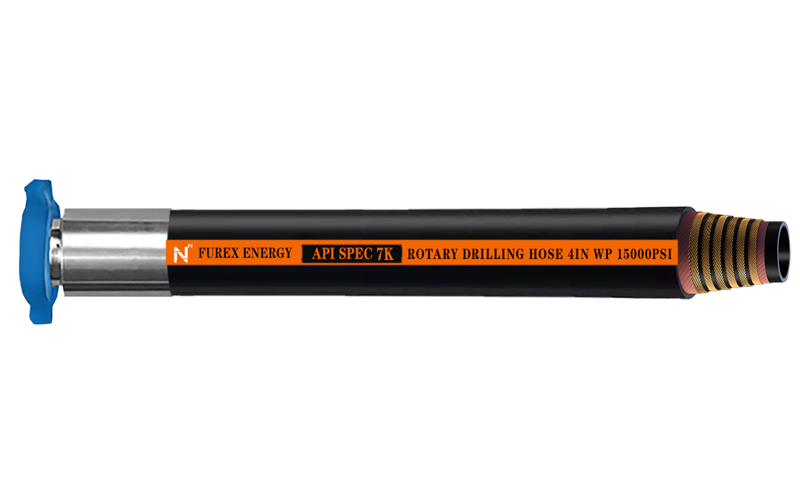

API 7K Rotary Drilling Hoses & Vibrator Hoses

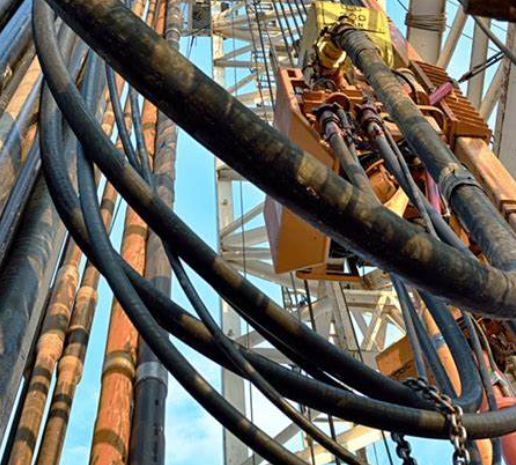

API 7K hoses are essential components in the oil and gas drilling industry, fabricated strictly following the API 7K standard. Their inner layer, commonly made of NR&SBR/HNBR/UPE materials, exhibits remarkable chemical stability and wear resistance, effectively withstanding the abrasion and chemical reactions during the transportation of drilling muds. The reinforcement layer, consisting of 2 - 6 layers of helical steel wires, provides robust strength to endure high pressures. The outer layer, crafted from synthetic rubber, offers excellent weather resistance. These hoses are mainly used for flexible connections between the upper end of the standpipe and the top drive/rotary device, as well as between the pump and the lower end of the standpipe in drilling and workover operations. They are responsible for pumping drilling mud at high pressures in oil drilling and exploration activities.

Structure

Inner layer: NR/SBR/NBR/HNBR

Reinforced layer: multi-layer high-tensile steel wire or steel wire rope

Outer layer: abrasion-resistant and weather-resistant synthetic rubber

Features and benefits

Conveying mediaum: water-based mud,oil-based mud,etc.

Working temperature: -20° C to +121° C (Customized)

Max. available length: 60m(200ft)

Connector: hammer union/ flange(crimping)

Standards: API Spec.7K

Application

1. Oil and gas cementing operations
2. Drilling and well repair assistance
3. Operations under special well conditions
4. Offshore oil development

Why Choose us?

FUREX leads in high-pressure hose technology, delivering precision-engineered API 7K rotary drilling hoses for global oil and gas extraction. Our fully automated production line, powered by German engineering and smart control systems, ensures wall thickness uniformity within 0.1mm and unmatched reliability.

Key Advantages:

✔ Elite R&D Team: 15+ PhD experts in materials science & fluid mechanics.

✔ Superior Strength: Honeycomb steel wire reinforcement boosts torsional strength by 60%, resisting leaks even under 360° twisting.

✔ Rigorous Testing: Each hose undergoes 78MPa burst tests and 15% sand-content abrasion tests for API 7K compliance.

✔ Custom Solutions: Tailored hose diameters (1/2"–6"), 10+ joint types, and lengths up to 60 meters for any drilling scenario.

Choose FUREX for reliability in extreme conditions—from directional drilling to high-displacement wells.
