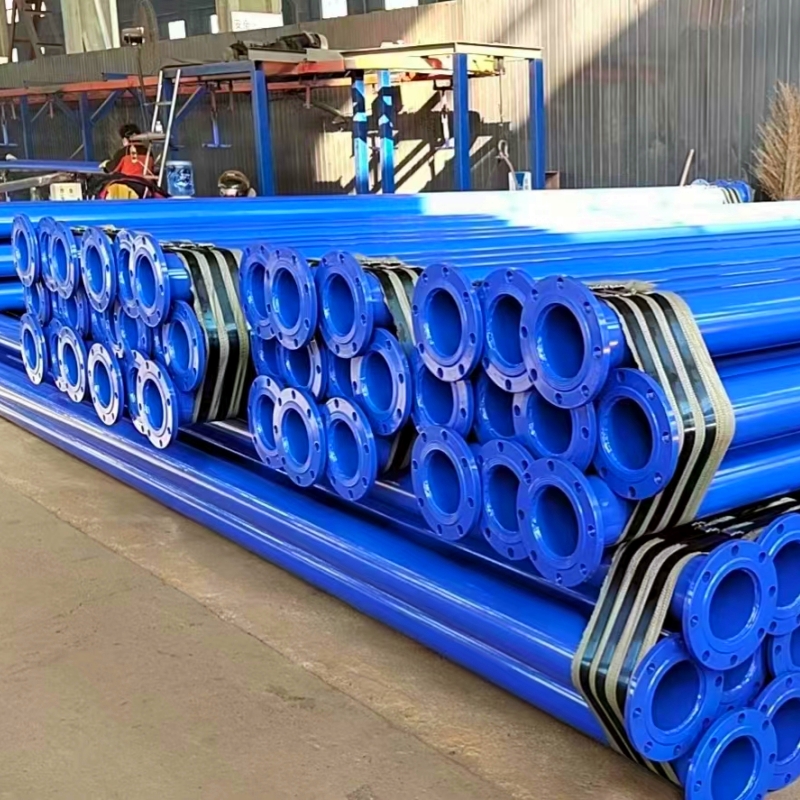

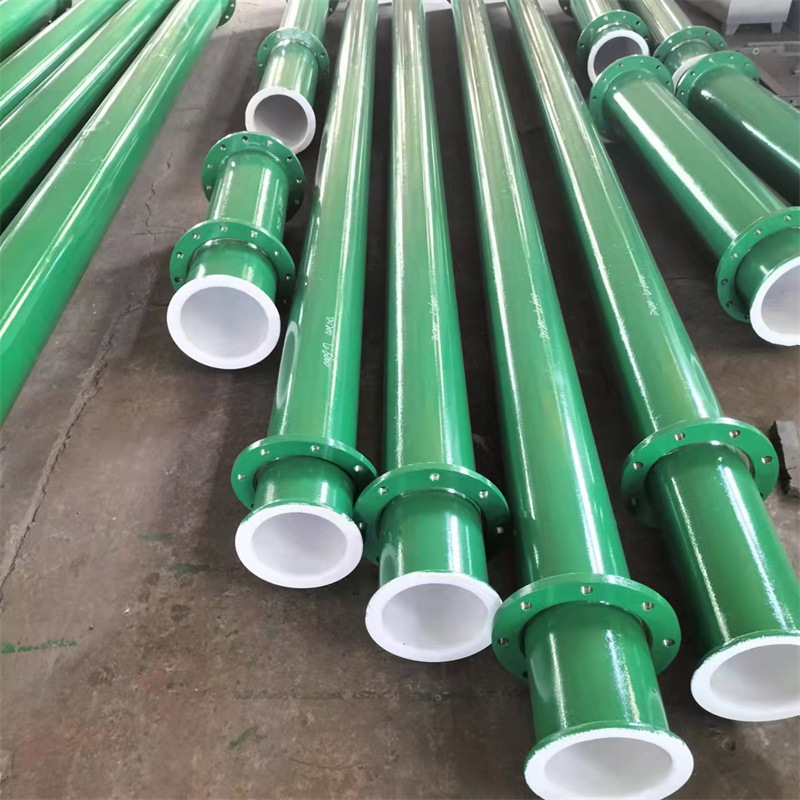

aging resistance High Hardness and Corrosion-Resistant Wear-Resistant Alumina Ceramic Lined Pipe

Name: aging resistance High Hardness and Corrosion-Resistant Wear-Resistant Alumina Ceramic Lined Pipe
Brand: Henan Ruixuan Environmental Protection Technology Co., Ltd.
SKU: Tradewheel_2714833
Price: 23.99 USD
Availability: InStock

FOB Price 23.99 - 23.99 USD / pieces

Contact Now

Quick Details (View All)

Warranty	1 year	Customized support	OEM, ODM
Place of Origin	Henan, China	Brand Name	Ruixuan
Model Number	DN300	Technics	Casting
Connection	Flange	Shape	Equal
Head Code	Round	Product name	RUBBER LINED PIPE
Material	Steel	Application	Industry
Color	Customized Color	Standard	Customized Service

Product Details

Products Description

Rubber Lined Pipes is a kind of pipe with steel or hard structure as the pipe skeleton, with wear-resistant, anticorrosive and high temperature resistant rubber as the lining layer. Through the physical and chemical properties of rubber itself, the effect of pipeline transport media on the external structure such as impact force, corrosion, etc. Due to the cushioning effect of rubber, the pipe is lined pipes. Greatly extend the service life of the pipeline and reduce the cost of the user.

Product Paramenters

1	Standard:	ISO2531, EN545, EN598, etc
2	Size:	DN80~2600mm
3	Material:	Ductile Cast Iron GGG50
4	Pressure:	PN10, PN16, PN25,PN40
5	Class:	K9, K8, K7, C25, C30, C40
6	Length:	6m, cut to 5.7m
7	Application:	Water supply project, drainage, sewage, irrigation, water pipeline.
8	Certificate:	ISO9001, CE, WRAS, BSI
9	Internal Coating:	a). Portland cement mortar lining
			b). Sulphate Resistant cement mortar lining
			c). High-Aluminum cement mortar lining
			d). Fusion bonded epoxy coating
			e). Liquid epoxy painting
			f). Black bitumen painting
10	External Coating:	a). zinc+bitumen(70microns) painting
			b). Fusion bonded epoxy coating
			c). Zinc-aluminum alloy+liquid epoxy painting
11	Packing:	Bundles, in bulk

Use advantage

1 Have good structure.

The reinforced skeleton steel pipe and rubber layer use high-performance adhesive composite as a whole, to overcome the steel pipe pressure and wear resistance, plastic, rubber wear resistance and pressure resistance and brittle impact resistance of FRP poor shortcomings, while with the common advantages of steel pipe and wear-resistant rubber, comprehensive cost-effective excellent.

2. High strength, high impact resistance

The rubber elastomer has low density, light weight, good vibration absorption and excellent mechanical impact resistance, high strength, good rigidity, no creep, impact resistance, earthquake resistance, water hammer resistance, easy to transport, installation and maintenance.

3. Wide range of temperature adaptationDesulfurization rubber lining pipe can be used in the range of -50°C~+150° C for a long time, and the rubber lining layer will not be separated from the steel frame due to temperature changes.

4. Energy savingGood lubricity, small loss of running resistance, save running costs. The reinforced skeleton steel pipe and rubber layer use high-performance adhesive composite as a whole, to overcome the steel pipe pressure and wear resistance, plastic, rubber wear resistance and pressure resistance and brittle impact resistance of FRP poor shortcomings, while with the common advantages of steel pipe and wear-resistant rubber, comprehensive cost-effective excellent.

5. Anti-aging performance is superior, and the general service life reaches more than 15 years (theoretical value) under normal use pressure and temperature. The pipeline is nearly 90 years after 6-8 years of use. Rotation once, the service life will be longer, the rubber lined pipe can be used repeatedly for 4 times, reducing the cost, the production cycle is short, can ensure the construction period.

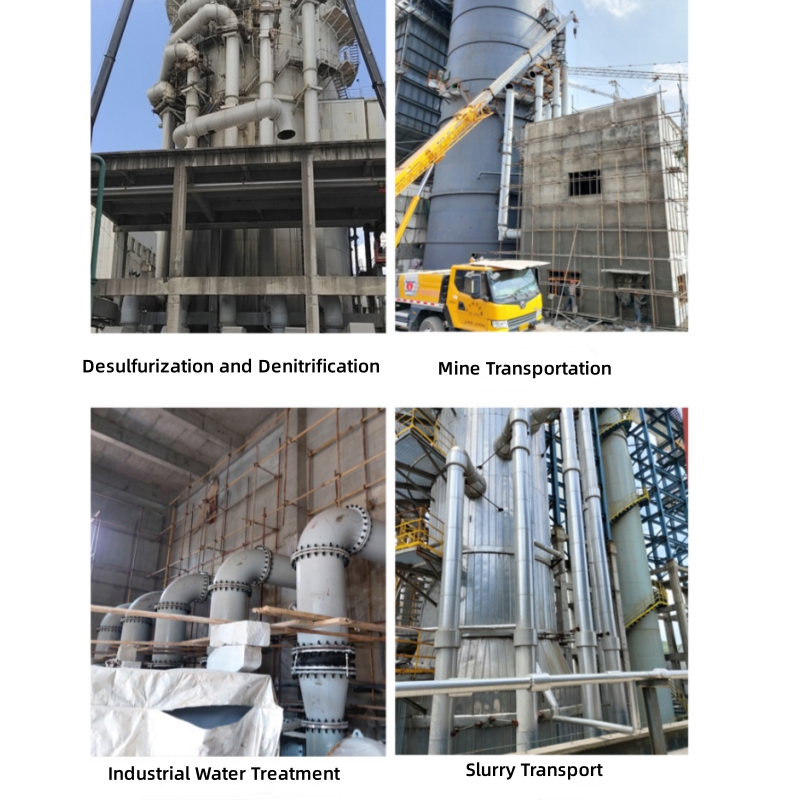

Application

With the superior performance of the rubber lined pipe is familiar to more businesses, its application fields are factories, power plants, industrial water treatment equipment, mineral treatment, paper industry, petrochemical industry, food industry, fertilizer factory, medicine and environmental protection industry and other industries.

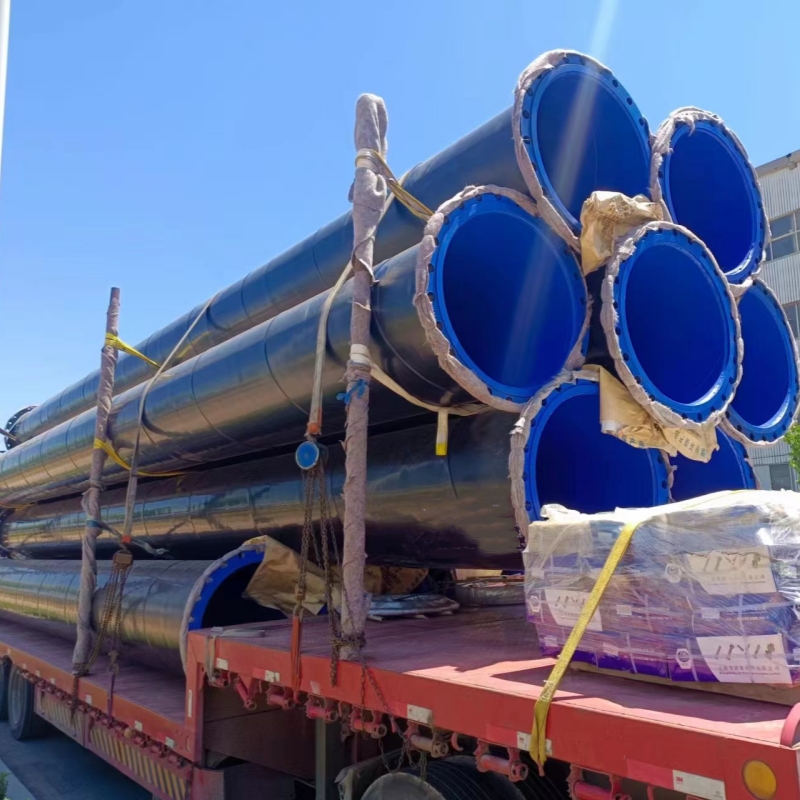

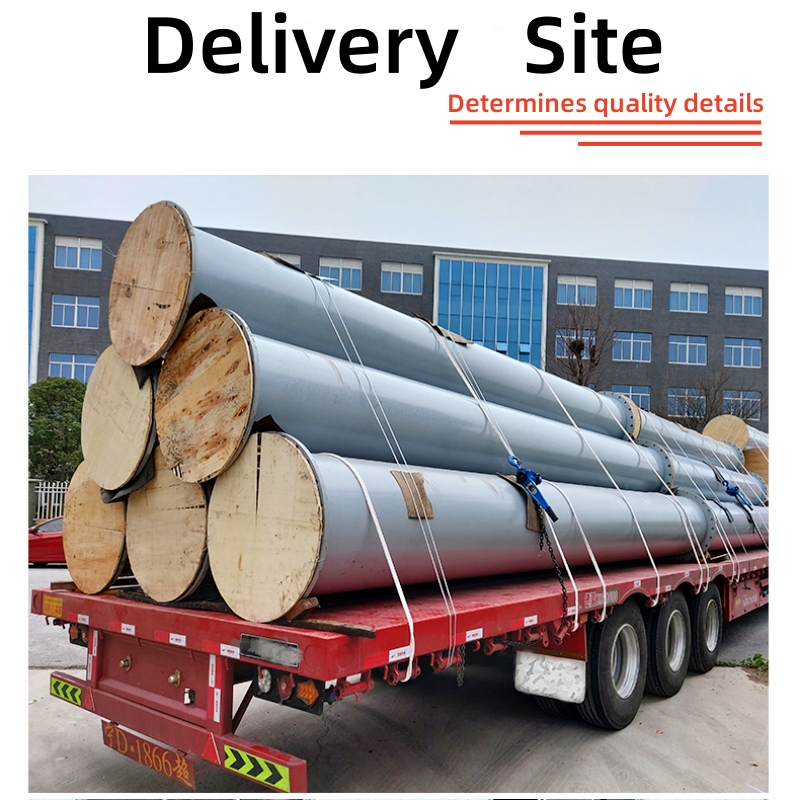

Product packaging

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Exhibition

Certifications

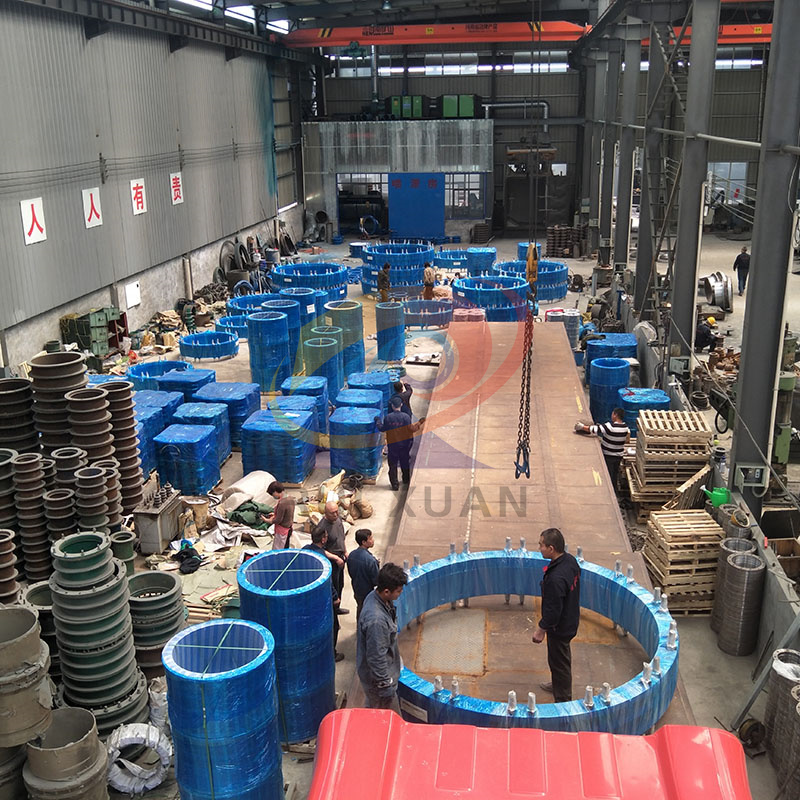

Company Profile

Gongyi Ruixuan pipeline equipment factory was founded in 1996.It is an excellent enterprise specializing in manufacturing and selling pipe fittings.Its located in Xicun village ,Gongyi city,Henan province ,the concentrated area of pipeline equipment industry in China.The company factory is located in Xicun town pipeline equipment industrial park.It covered an area of 20000 square meters.

At present, the company has the production capacity of pipeline equipment with a maximum diameter of 4000mm, and its main products are: Steel expansion joint, flexible waterproof sleeve, large diameter flange, double flange force transfer expansion joint, large deflection loose sleeve compensation joint, spherical compensation joint, sleeve compensator, bellows compensator, non-metallic compensator, rubber expansion joint, DC medium no thrust sleeve compensator, flexible expansion pipe and other pipeline equipment. The annual production capacity is 30 million sets.

The flexible telescopic pipe equipment is mainly used in the pipeline crossing different geological structures under different conditions and the application of pipe installation drop, reduce or avoid the impact of geological settlement and crustal activity on the pipeline, so that the construction unit can save more than 50% of the cost when purchasing the equipment. The rubber expansion joint series products of the company, the maximum production diameter of 3600mm, have been applied in millions of units of thermal power projects in China for many times, and have been praised by the users.

The company passed ISO 9001:2008 quality management system certification in 2009 and ISO 14000:2004 environmental management system certification in 2009. The company has a strict quality control system, standard production process, standard factory inspection hand section, to ensure that every product meets the national standards and customer requirements.

Business philosophy: responsible production of products, return the trust of customers; To build a community with a sense of belonging and appreciate employees contributions; Make a contribution to the society of enterprises, give back to the good times. Gongyi Ruixuan pipeline equipment factory is willing to work with friends from all walks of life hand in hand, mutual support, create a better future!

FAQ

Q : Are you a trading company or manufacturer?
A: We are manufacturer of rubber expansion joint,bellow, dismantling joint, dresser coupling, flange adapter and flange with more than 20-year experience.

Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant message, we will send our catalog.

Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.

Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be made by customers requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visiting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Gongyi city,Henan province,China mainland
