78kw Hot Water High Temperature Heat Pump 80degrees Water Output

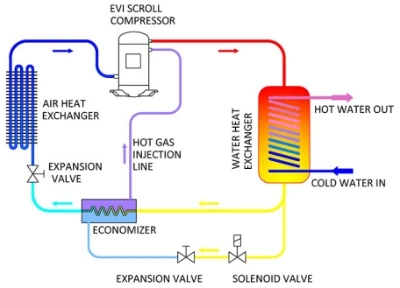

Blueway High Temperature Hoat Pump dopts EVI (Enhanced Vapor Injection) scroll compressor and the unit is capable of producing hot water with a maximum temperature up to 80ºC, which is ideal for both commercial and industrial applications to kill legionella and some other bacteria. High Temperature Heat Pump Water Heater uses R134A refrigerant, which is not only eco- friendly but reliable and stable especially for the system producing high temperature hot water.

Water Heat Exchanger

1) High efficiency tube-in-shell heat exchanger for Circulating Heat Pumps

♦ High working pressure

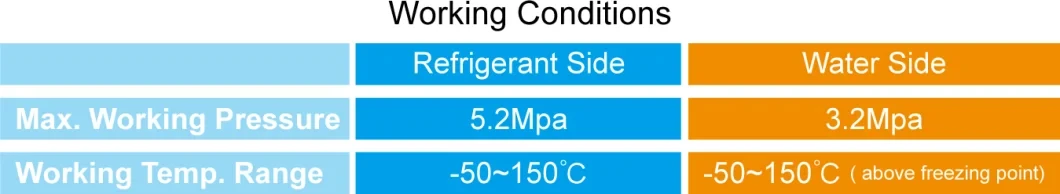

The copper pipe is of 0.8~1.2 mm thickness.no welding inside. With its extraordinary pressure resistance property, the copper pipe is without any leakage under 5Mpa pressure test.

♦ The internal spiral surface of the copper tube ensures effectiveness of heat exchange and prevents from lubricant accumulation.


♦ Grooved external surface of the copper tube increases also the heat transfer area which is 3.7 times of the smooth surface.

2) High efficiency tube-in-tube heat exchanger for Instant Heating Heat Pumps

♦ Spiral tube used to increase heat transfer area for high efficiency

♦ Specially designed to provide excellent efficiency, reliability, and reduce fouling.

Compressor

♦ Famous brand rotary compressor for Domestic Heat Pumps

♦ Bitzer, Copeland, Danfoss or Panasonic compressor for Commercial Heat Pumps

1) EVI Scroll compressor specially designed for high water temperature heat pump

2) Adjustable water temp. setting: 25ºC -80ºC

3) Intelligent control: micro processor based digital controller with LCD display

4) Automatic defrosting function included

5) Anti-legionella function on regular intervals

6) Adopt R134a eco-friendly refrigerant is reliable for system producing high water temperature

7) High efficiency tube-in-shell water heat exchanger

8) Inner grooved copper tube for higher efficiency

9) Blue hydrophilic aluminum fins to resist corrosion

10) Back-up heating element for emergency (optional)

Options: High Temperature Heat Pump (Cycle Heating, 50Hz & 60Hz)

1.Blueway has around 30 years of rich HVAC manufacturing experience.

2.Over 1000 original R&D products, Blueway is qualified to be OEM/OBM/ODM.

3.Over 10000 engineering solutions with great success provided by Blueway.

4.Online technical service is available twenty-four hours a day without break.

5.Blueway intelligent control system with precise timing, temperature control & remote monitoring function.

With advanced technology and R&D capacity, Blueway has obtained over more than 20 patents and become one of the leading HVAC manufacturers in China. Meanwhile, 70% of Blueway products have been exported to oversea markets, including Australia, Europe, North America, Middle East, South Africa, South America and obtained worldwide recognition. Additionally, it has over 20 representative offices located in different cities of China, and also has its authorized distributors in Europe, Middle East, North America and South America.

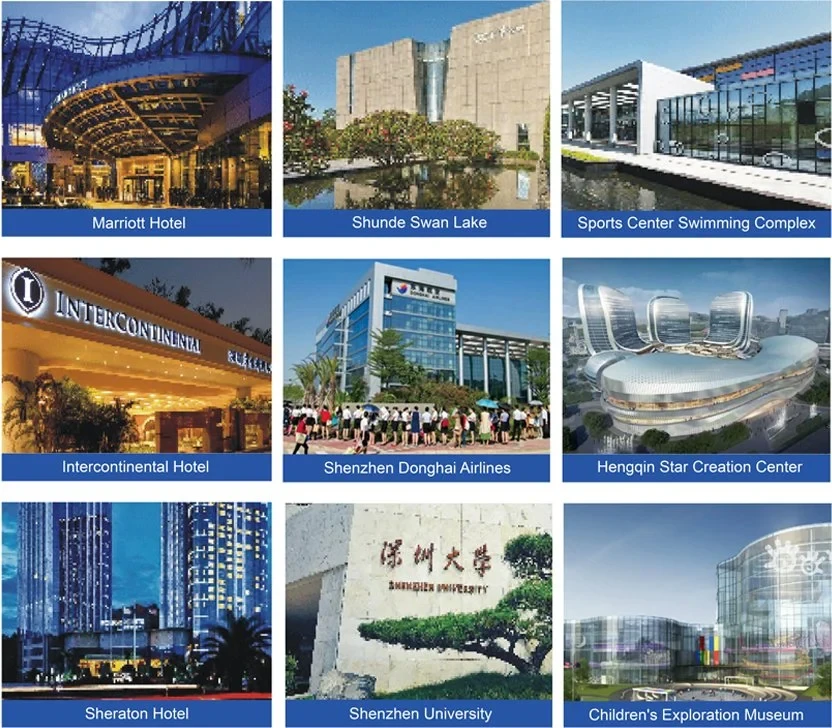

So far, Blueway has already provided over 10000 engineering solutions with great success. Whats more, Blueway is also the recommended brand by Hilton Hotel in Chinese market. Blueway will continue its endeavor and commitment to serve its worldwide partners by providing solutions and innovative products of high efficiency.

Q: Compressor type?

A: Enhanced Vapor Injection scroll compressor.

A: LCD wired controller with capacitive touching keys for higher operating sensitivity and unlimited key operations.

A: R134a for higher outlet water temperature.

A: 60ºCfor normal type, 90ºC for high temperature type. Please also refer to the "High Temperature Heat Pump" series.

A: 1 year for the whole unit, 3 years for the compressor.

A: Generally, T/T by bank.

A: EXW, FOB, CNF.
