48V 100ah 200ah Li-ion Battery 5kw Solar System LiFePO4 Battery Pack 12V 24V 48V Home Energy Storage Battery

Name: 48V 100ah 200ah Li-ion Battery 5kw Solar System LiFePO4 Battery Pack 12V 24V 48V Home Energy Storage Battery
Brand: DWYS New Energy Technology Co.,Ltd
SKU: Tradewheel_2436404
Availability: InStock

FOB Price 201 - 239 USD / pieces

Contact Now

Quick Details (View All)

Installation	Packaged	Rechargeable	Chargeable
Cycle Life	10000 Times @ 90% Dod	Weight	15kg
Warranty	5years	Standard Charge	50A
Standard Discharge Current	100A	Transport Package	Wooden Box/Carton
Specification	250200200	Trademark	Dwys
Origin	Hebei, China	HS Code	8506500000
Production Capacity	60000pieces/Years

Product Details

Overview
Product Description
Product Parameters
Our Advantages
FAQ

Product Description

BATTERY TECHNICAL SPECIFICATION
Battery model	DWYS-E1
Number of batteries	1	2	3	4
Battery Energy	5.12kWh	10.24kWh	15.36kWh	20.48kWh
Battery Capacity	100AH	200AH	300AH	400AH
Weight	80kg	130kg	190kg	250kg
Dimension L x D x H	1190x600x184	1800x600x184	1800x600x184	1800x600x184
Battery Type	LiFePO4
Battery Rated Voltage	51.2V
Battery Working Voltage Range	44.8 ~ 57.6V
Maximum Charging Current	100A
Maximum Discharging Current	100A
DOD	90%
Parallel Quantity	4
Designed Life-span	6000
PV CHARGE
Solar Charge Type	MPPT
Maximum Output Power	5000W
PV Charging Current Range	0~80A
PV Operating Voltage Range	120~500V
MPPT Voltage Range	120~450V
AC CHARGE
Maximum Charge Power	3150W
AC Charging Current Range	0~60A
Rated Input Voltage	220/230Vac
Input Voltage Range	90~280Vac
AC OUTPUT
Rated Output Power	5000W
Maximum Output Current	30A
Frequency	50Hz
Overload Current	35A
BATTERY INVERTER OUTPUT
Rated Output Power	5000W
Maximum Peak Power	10KVA
Power Factor	1
Rated Output Voltage (Vac)	230Vac
Frequency	50Hz
Auto Switch Period	<15ms
THD	<3%
Communication	RS485/CAN/WIF
Storage time / temperature	6 months @25C3;months @35C;1 months @45C
Charging temperature range	0~45°C
Discharging temperature range	-10~45°C
Operation Humidity	5%~ 85%
Nominal Operation Altitude	< 2000m
Cooling Mode	Force-Air Cooling
Noise	60dB(A)
Ingress Protection Rating	IP20
Recommended Operation Environment	Indoor
Installation Method	Vertical

Q1: Are you a manufacture factory?

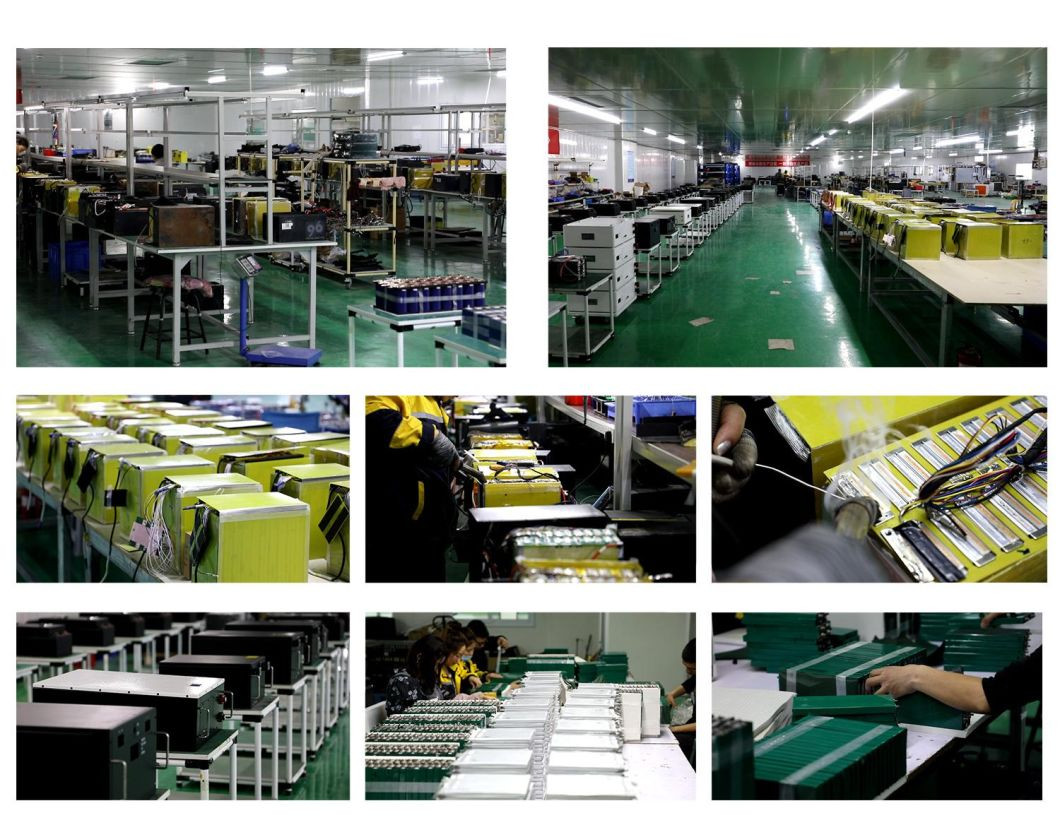

A1: Yes, we are lithium battery manufacturer from China. Welcome to visit our factory and production process. We accept OEM/ODM if the quantity is right.

Q2: Why choose us?
A2: Reliable -- Our certifications, such as ISO, TUV are our commitment to the quality and safety of lithium batteries.
Advantages - We provide complete battery protection: powerful BMS function, 10-fold protection system, solving high voltage or high current problems.
Professional -- The factory is located in Hebei, China, specializing in the production of lithium batteries (cells, battery packs, battery cabinets), and has professional experience in cooperating with many well-known companies.

Q3: How can we guarantee the quality?
A3: Always pre-production samples before mass production;
Always carry out final inspection before shipment;

Q4: Can I buy a sample of one or two units first?
A4: Yes. Support sample service. Please contact us to place an order.

Q5: What is the production time of your batteries?
A5: Sample delivery time is about 10-15 working days. Bulk order delivery time is about 15-20 working days, depending on the quantity.

Q6: Is it OK to print my logo on the product?
A6: Yes. We support custom logo/size/color/etc, free design is available.
