25kva 100KVA 350 kva 11KV 415V dry type power transformer

Quantity	1 - 3
Price	$5000

MOQ	2 1
Port	Shenzhen
Packaging	25kva 100KVA 350 kva 11KV 415V low loss power indoor dry type power transformer Packing Standard: Wooden case
Lead Time	20 Days

Contact Now

Quick Details (View All)

Model Number	25 100 350 kva dry type transformer	Material	Copper/Aluminium
Application	Industrial Power Supplies	Type	Dry-type
Rated capacity	25 100 350kva	Certification	ISO9001
Frequency	50/60Hz	Standard	IEC60076
Color	Red

Product Details

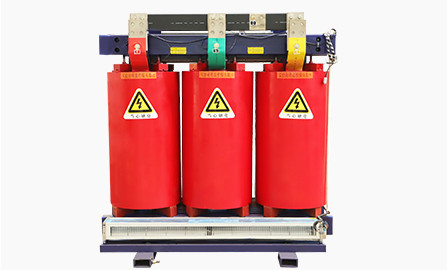

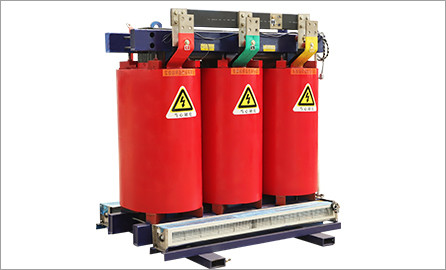

25kva 100KVA 350 kva 11KV 415V low loss power indoor dry type power transformer

Dry transformers with high and low voltage windings are coated by a thin layer of epoxy resin.Simply speaking, dry-type transformer refers to the transformer whose core and winding are not impregnated in insulating oil. Cooling methods are divided into natural air coolin g (AN) and forced air cooling (AF). During natural air cooling, the transformer can run continuously for a long time under rated capacity. When forced air cooling, the output capacity of transformer can be increased by 50%.

Regular Service Condition:

- The altitude does not exceed 1000m. Indoor type - Maximum ambient temperature +40°C - Maximum daily average temperature +30°C - Maximum annual average temperature +20°C - Minimum temperature -25°C - According to the requirements of the customer, the transformer can be provided for special operation conditions.

Techinical parameters of 25kva 100KVA 350 kva 11KV 415V low loss power indoor dry type power transformer

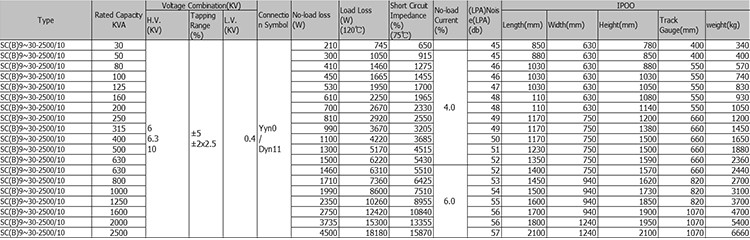

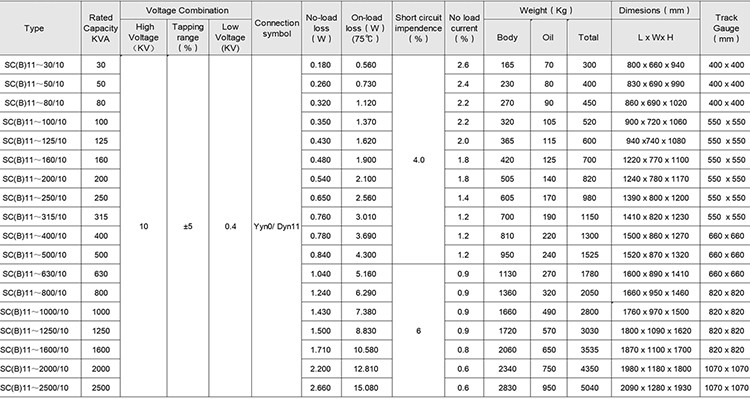

Technical parameters of SC(B)11-30-2500/10 series F class dry distribution transformer

As the companys products are constantly being developed and updated, this parameter is only for reference.

Iron Core

New silicon steel sheet iron core, less noise, stable operation, small local release, extend transformer life.

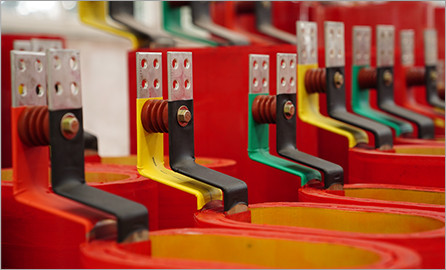

Copper coil

Pure copper coil to enhance overload

no oxygen copper wire,

more stability,

better conductivity

short circuit resistance

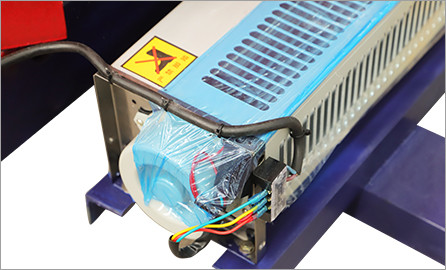

Cross flow air cooler

Reduce the temperature rise

increase the heat dissipation area increase the power used

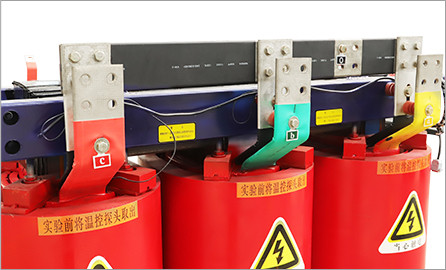

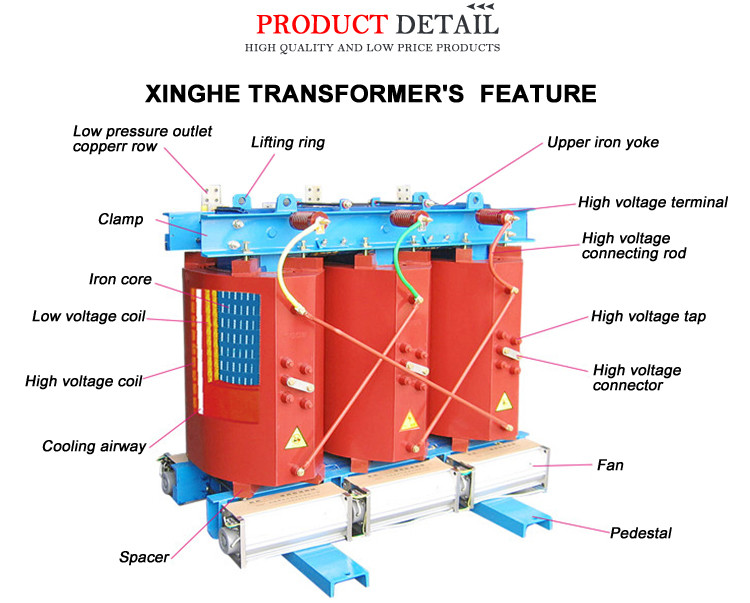

Winding

The material of clamp and steel chanle is from Baosteel Group. The clamps of core are subjected to corrosion-resistant treatment and it may run under high temperature or other serious environments.

Want to know more details to contact me!

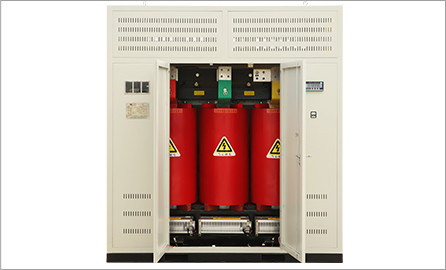

Protection Enclosure

The protection level of transformer protection case ranges from IP21 to IP54.

The companys products are mainly used for power transmission and transmission frequency of 50HZ, power network voltage of 10KV or 35KV, and the transmission and distribution of altitudes of 1000 meters and below. It can be used as power supply forrural and regional power supply and rural water drainage and drainage, outdoor installation, continuous use. With reliabletechnology, high-quality materials, good economic performance, good reputation and excellent service, our products have wonunanimous praise from new and old customers.
