MOQ | 1 Piece/Pieces |
Place of Origin | Zhejiang, China | Brand Name | XingTai |
Model Number | D1010F.20.3 | Output Power | 12-120KW |
Type | Synchronous Motor | Frequency | 50/60Hz |
Phase | Three-phase | Protect Feature | Waterproof |
AC Voltage | 380V | Efficiency | IE 2 |
Application | 200rpm AC Electric Servo Motor gearbox for injection machine | Input Voltage | 3Phase/380V -15%~+15% |
Power | 12-67Kw | Rated Frequency | 50-60HZ |
motor type | synchronization | Protection grade | IP20 |
Cooling | Forced cooling | Overall protective | IP54 |
Overheat protective | KTY84 |
380V 2000rpm AC Motor Electric Servo Motor
Features:
Voltage class: 3phase 380v
Temperature protect :KTY/PTC
180×180 motor base/ force-air cooling
S1 working system(IEC 60034-1)
Rated Speed: 1500rpm/1800rpm/2000rpm/3000rpm
Brief
Introduction of 380V 2000rpm AC Electric Servo Motor

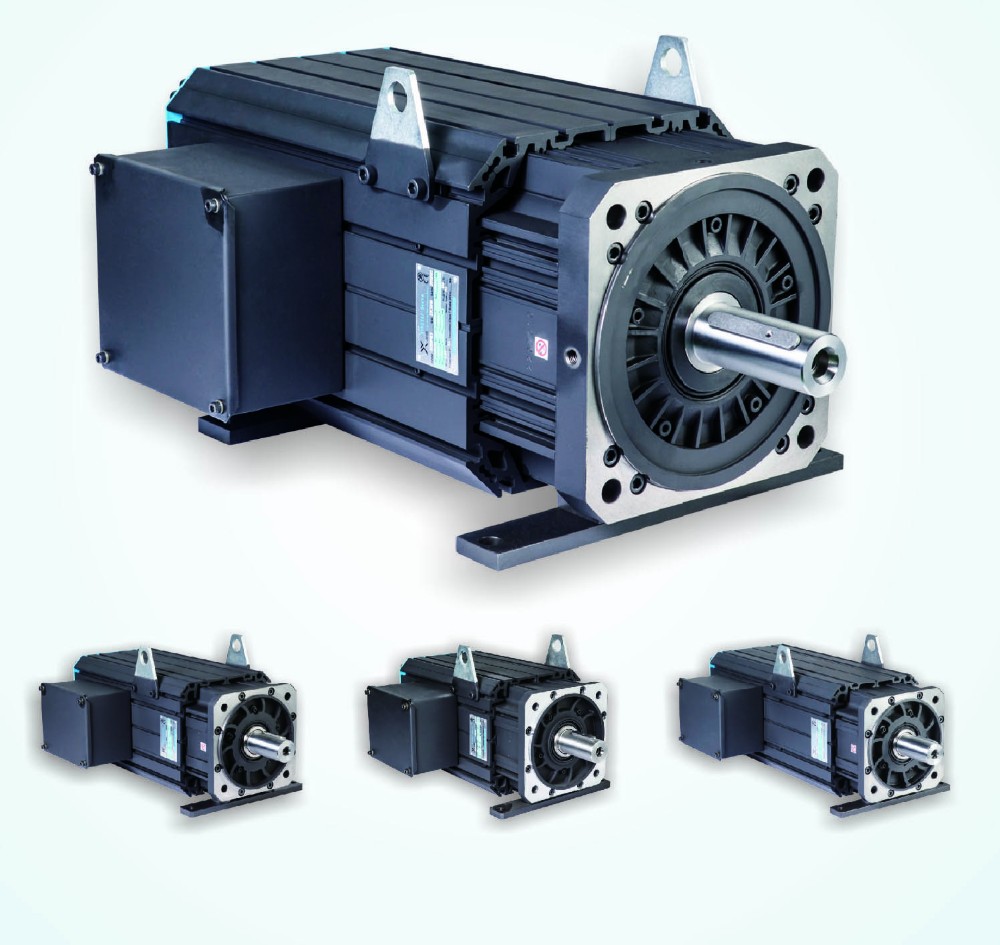

XingTai Servo Motor are
RE Permanent magnet synchronization servo
motor ,was conceived and designed as an advanced
and homogeneous range of high performance servo
actuators,in line with the evolving demands of the
automation industry ,and is particularly suited for direct
drive applications.
XingTai Servo Motor reach
the highest torque/size and power/size ratios in the
industry ,they are designed with Rotating transformer
encoder,as standard feedback devices,optional or inductive
encoders,custom designed for motor operation,which offer
absolute resolution up to 8 million points/rev thus
affording the best motion uniformity even at the lowest
speed,or multiturn absolute encodes,all with serial Endat
interface and electronic nameplate, with this features,the
limits of mechanical transmissions are overcome and a vast
range of applications can be transferred to direct drive
technology.
XingTai Servo Motor Designed
for process lines and apply in sustained operation at high
speed,forced cooling over frame with fan servo controlled
by the motor ,overall protection grade IP
54;
The advantage of
combination of permanent magnet and Magnetic reluctance
are:
1.10% higher efficiency than
induction motor;
2.wider speed
range compared to general permanent magnet
motor;
3.Slender structure make
motor faster dynamic response ,lower noise;
4.Special airduct design
make the motor more outstanding cooling effect.

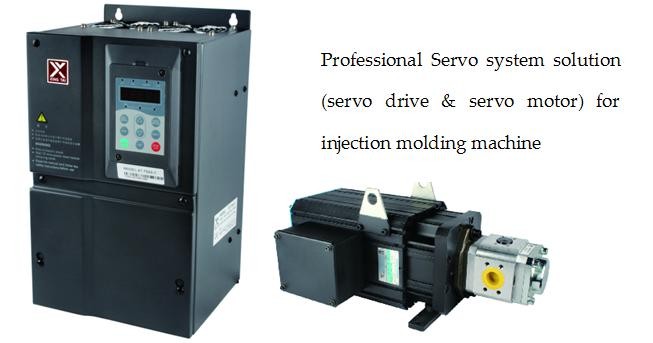

1.Do you offer
complete set of servo system for injection molding
machine?
Yes ,We are offering
professional solutions of complete set of servo system for
different tonnage injection molding machine,We offer servo
drive+servo motor+pump+pressure senser+brake resist+other
accessories.etc.Please inquriy us for best
solutions,
2.What
is your mainly delivery
port?
Our factory is loacted in Ningbo city,Ningbo Port is our primary choice of delivery sea port.
3. Is there a minimum quantity request?
We does not require a minimum order for standard servo drive and motor, as we understand that some customers may only need 1 or 2 sets of our products or wish to try us out for the first time.
4.What are your packing methods?
We mostly pack into wooden cases or a combination of box and pallet.Xingtai packages will protect the servo drives well.
5.When can I except to receive my order?
Generally 3-15days after order confirmation.
6.What is your servo products quality assurance?

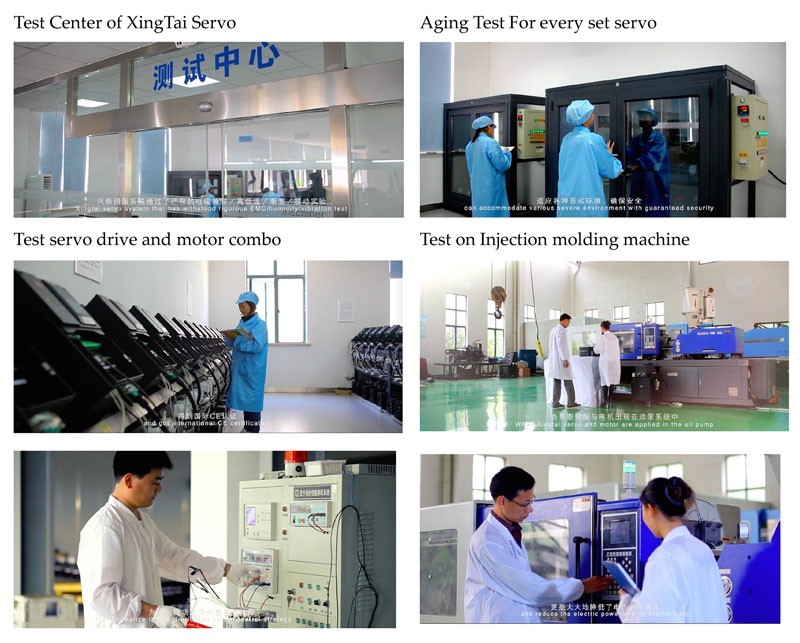

Our XT690 Series servo drive passed CE certificate and all servo drive and motors will be tested on injection molding machine in our factory before delivery ,You just assemble and easy debuge as per our introductions.
Generally we offer 18month warranty for our servo drive and motors,Any problems we are on the behind of you.
