Model A5015R
Input
Voltage 100-240Vac 50/60Hz
Output 13.8V 0.8A & 3.3A
Charging Mode smart 4-stage, desufation before charging, pulse
maintenance
Protection Short circuit, reverse polarity, overcharge
Suitable for 12V 2-90Ah SLA VRLA GEL AGM batteries, widely used
for motor bike, car
Dimension 120*67*41mm
DISCRIPTION:
he charger is
programmed four auto stages ( Ud-I-Uo-Up) charging process,It is
designed for all kinds of 12V 2~90Ah lead-acid battery, such as
SLA, VRLA, AGM and Gel battery. Stage “Ud” desulfating the
battery through 20V pulse,When the battery recovered, stage “I”
will give bulk current charging( 0.8 or 3.3A, defined by user,
for 2~8Ah 0.9A is preferred, 12~90Ah should select 3.3A). Then,
“Uo” stage is followed, the output voltage is fixed on
14.4V(14.7V is for low temperature, <5℃), When the current
declines to 0.4A, stage ”Up” will turn on duty. At this stage,
the battery is charged completely and the charger give some pulse
to maintenance the battery.
>Worldwide
voltage input 100-240V
>Micro-processor
controlled, desulfating
function, pulse maintaining and
prolong battery lifespan
>selectable charging
current according to battery's capacity

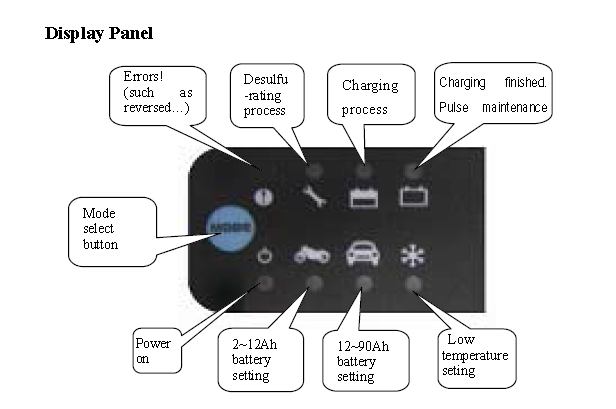

>With 8
LEDs to display, easy to use
>short
circuit, reverse polarity, overload, overcharge
protects
>No
sparkle with alligator clips output
