MOQ | 1000 pieces |
Port | shenzhen |
Packaging | customize packed |
Lead Time | 10days |
Length | 40mm | Rod Materials | Quartz Rod |
Size | 12 core | Application | Fiber Optic Splicing Protection |
Description:
12F Single Ceramic Heat Shrink Protective Ribbon Fiber Splice Sleeve is designed forFlat fiber, normally it's 4 cores, 6 cores, 8 cores and 12 cores for choose.
12F Single Ceramic Heat Shrink Protective Ribbon Fiber Splice Sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing. 12F Single Ceramic Heat Shrink Protective Ribbon Fiber Splice Sleeve can be divided into two types (single rod and ribbon rods) according to the function.

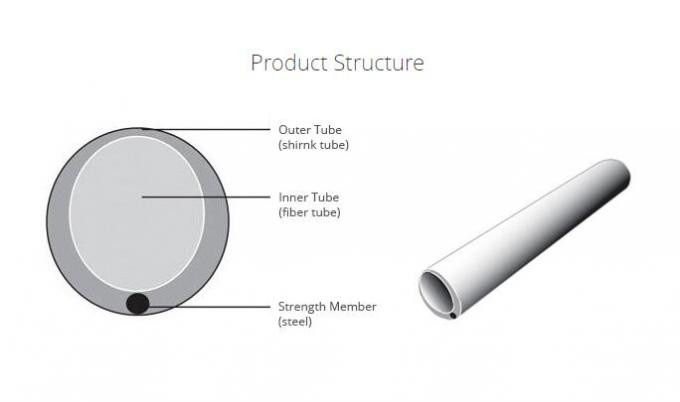

12F Single Ceramic Heat Shrink Protective Ribbon Fiber Splice Sleeve is constructed with an inner EVA meltable adhesive tube, a polyolefin heat shrink outer tube and either single or dual strength members. Our single strength member sleeve which has become an industry standard, has an after shrink diameter of 4.9 X 4.4 mm, and utilizes a special glass member.
Feature:
1. Single holed (preshrunk)ends eliminates improper fiber
threading
2. Smooth, deburred stainless steel reinforcing member ends
decrease the risk of fiber damage during installation.
3. Extended liner length prevents contact between the fiber and
ther backbone
4. Clear sleeve design persign permits easy centering of splice
before heating
5. Sealing structure makes the splice free from effect of
temperature and humidity from environment
6. Protecting splicing point
7. Improve mechanical strength
8. Simple operation, reducing the risk of fiber damage during
installation.
9. Does not affect the optical characteristics of the optical
fiber.
10. Sealing structure to have good resistance of temperature and
humidity performance
Applications:
1.Fusion splicing
2.Fiber cable protecting
3.FTTH system
4.Rack-mount & Wall-mount terminal box
5. Fiber Opitc Splice Closure
6. optical fiber switch box and so on continue protection
