1000Nmm Manual Spring Torsion Testing Machine Lab Equipment

MOQ	1 Set
Port	ningbo,shanghai,tianjin
Packaging	Wooden case packing
Lead Time	15 days

Contact Now

Quick Details (View All)

Max test torque	1000Nmm	Test range	1%-100%FS
Min torque reading	0.1Nmm	Resolution of torsion angle	0.1°
Diameter of torsional plate	130mm	Power supply	AC 220V±10% 50Hz
Display	Digital LCD Display	Brand Name	ZhongChuang

Product Details

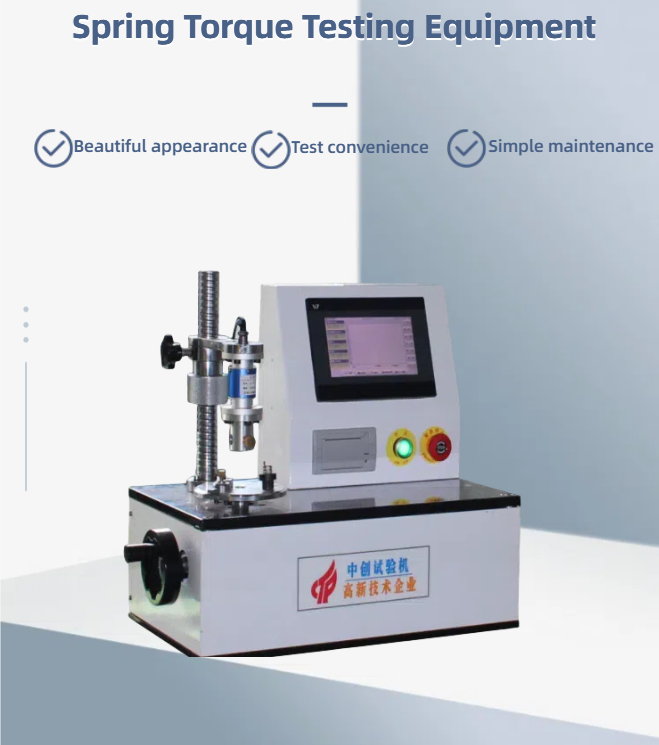

1000Nmm Manual Spring Torsion Testing Machine Lab Equipment

This machine mainly performs torsion tests on various torsion springs and scroll springs. Determine the torque of the spring at a certain angle of rotation, or measure the angle of the spring at a certain torque.

Type	Vertical
Max test torque	5000Nmm
Test range	1%-100%FS
Min torque reading	0.1Nmm
Resolution of torsion angle	0.1°
Accuracy of testing force	±1%
Relative error of torque zero	±0.1%
Distance between the force plate and the torque plate	0~70mm
Diameter of torsional plate	130mm
Power supply	AC 220V±10% 50Hz
Grade of testing machine	Grade 1
