Sunevo PERC MBB Half Cut Mono 550W 555W 560W Home Use PERC Pv Modules

Name: Sunevo PERC MBB Half Cut Mono 550W 555W 560W Home Use PERC Pv Modules
Brand: SunArk Power Co., Ltd.
SKU: Tradewheel_2667214
Price: 0.09 USD
Availability: InStock

FOB Price 0.09 - 0.12 USD / watts

Contact Now

Quick Details (View All)

Brand Name	SunEvo	Model Number	SE5-72H
Place of Origin	Jiangsu, China	Cell size	182mmx182mm
Type	PERC, Half Cell, HJT, N-TYPE, TOPCON	Panel Dimensions	2278 x 1134 x 35mm
Panel Efficiency	21.9%	Number of Cells	144 Cells (6x24)
Weight	20.8kg	Front Side Glass	High transparency solar glass 3.2mm
Backsheet	White	Frame	Silver / Black, anodized aluminium alloy
Junction Box	IP68 Rated, 3 Diodes	Cable	4.0mm, Portrait: 300mm / Landscape: 1400mm
Wind/Snow Load	2400Pa/5400Pa	Connector	MC Compatible
Application	Residencial,Commercial & Industry	Warranty	25 YEARS

Product Details

Solar Panel Detail

Maximum Power (Pmax/W)	540	545	550	555	560
Maximum Power Voltage (Vmp/V)	42.06	42.35	42.64	42.93	43.22
Maximum Power Current (Imp/A)	12.84	12.87	12.90	12.93	12.96
Open Circuit Voltage (Voc/V)	49.75	49.98	50.22	50.45	50.68
Short Circuit Current (Isc/A)	13.63	13.66	13.70	13.73	13.76
Module Efficiency (%)	21.1	21.3	21.5	21.7	21.9
Power Output Tolerance (W)	0~+5
Temperature Coefficient of Isc	+0.05%/°C
Temperature Coefficient of Voc	-0.28%/°C
Temperature Coefficient of Pmax	-0.36%/°

Certifications

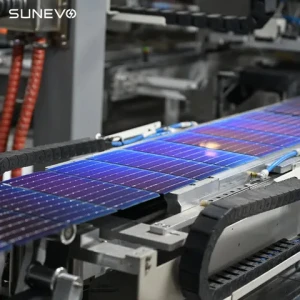

Smart Manufacturing

Modularized fully automated production lines enable fast delivery and cost savings. To achieve high utilization rate and efficiency, SunEvo divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.

Quality Control

Stringent quality control is the cornerstone of SunEvos manufacturing. Our customers have come to expect uncompromising quality standards in our products. To meet this expectation of high quality, we continue to invest in state-of-the art equipment and professional training of our employees . We are proud of our product quality and their reliable performance even in the most extreme conditions. SunEvo has received certifications for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.

Solar Cell String EL Testing

Each solar PV cell string must be tested by EL machine to ensure every single solar cell is perfect.

EL Testing Before Lamination

Each Solar Module must be tested by EL machine before lamination to ensure every solar cell string is perfect.

Appearance Inspection After Lamination

Each Solar Module must be inspected by QC after lamination to ensure there is no defect during lamination.

Final EL Testing

Final EL Testing 100% ensure zero intenal electric defect for each solar module.

Output Power Testing

Output power testing ensure 100% positive power tolerance and excellent power performance.

Final Appearance Inspection

Each Solar Module must be inspected by QC before packaging to ensure there is no defect during production process.

Product Packaging

Global Project Case

Utility Scale

With years of professional experience, SunEvo can provide you the perfect module product for your perfect projects so as to maximize your benefits of investments.

Commercial

Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And SunEvo was, is, and will always be a reliable partner which you won`t regret to choose.

Residential

Thousands of houses around the globe are equipped with SunEvo solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.

OEM & ODM Services

Laminated Logo

Laminated Barcode

Product Label

Module Package

Specification Datasheets

Marketing Material

FAQ
Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.

Q2: What about the lead time?
A2: 10 Working days for
