Poland Stock DIY 48V 16S 51.2V 280Ah 300Ah BOX 200A BMS Lithium Battery Case Pack Accessories RS485 CAN For DIY Lifepo4 Battery

Name: Poland Stock DIY 48V 16S 51.2V 280Ah 300Ah BOX 200A BMS Lithium Battery Case Pack Accessories RS485 CAN For DIY Lifepo4 Battery
Brand: Shenzhen Elite Ascend Energy Co., Ltd.
SKU: Tradewheel_2742016
Price: 468 USD
Availability: InStock

FOB Price 468 - 468 USD / pieces

Contact Now

Quick Details (View All)

Brand Name	Elite Ascend	Material	METAL
Model Number	16S 48V Kits	Place of Origin	Guangdong, China
Model No.	16S 48V 280Ah 300Ah	Product name	Easy Installation Metal case
Used for	DIY 48V battery pack	Weight	30KG
Warranty	10 years, 5years	Size	770425255mm
Certification	CE

Product Details

DIY BATTERY KITS

DC breaker

✖ Short Circuit Hazard
✖ Overheating overload

2A active equalizer

Guaranteed voltage consistency

WIFI Bluetooth Booster
Stabilize Bluetooth signal

Real-Time Display Function
Directly switchable communication protocols

Dual Port
Reduces risk of damage and facilitates parallel connection

Pre-assembled components
Easy and efficient installation

The Battery case includes the following accessories.Smart BMS with LCD dispaly and BT Kits
Pre-installed	① BASENGREEN 16S200A smart BMS with BT ② Active balancer(Optional) ③ DC breaker(Optional) ④ LCD dispaly ⑤ Shell, Front panel, Cover plate ⑥ Handle.
Insert the Cells Connect Everything Enjoy Your DIY Journey	⑦ Insulation board ⑧ Charge and discharge connector ⑨ Screws & flexible busbar ⑩ USB-485 communication cable ⑪ Invertercommunication cable

Parameters
Item	16S 51.2V 280Ah/300Ah Kits
Basic Parameters	48V 280Ah battery case kit
Nominal Voltage (V)	51.2V
Nominal Capacity (Ah)	280Ah @0.5C discharge current 25±2℃
Nominal Power (Wh)	14.336KWh

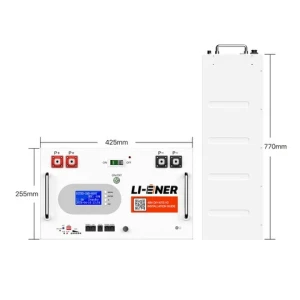

Dimension (mm)	770425255mm
Weight (Kg)	29KG
Discharge Cut-off Voltage (V)	41.6V
Charge Voltage (V)	57.6V
Continuously Charge /Discharge Current (A)	100A @25±2℃ (Recommended)
Max Standard charge /discharge Current (A)	200A @25±2℃
Standard charge/discharge Current (A)	100A @25±2℃ (Recommended)
Max Standard charge/discharge Current (A)	200A @25±2℃
Working Temperature	0～50℃(Charge) -10～50℃(Discharge) -20～55℃(Storage)
SOC Range	5%-100%
Recommended SOC Range	10%-90%
Communication Interface	CAN or RS485
Humidity	10% - 85%
IP level	IP 20
The newly upgraded LI-ENER DIY battery box simplifies the process of building a 51.2V solar storage system. With our Grade A 304Ah cells, you can achieve a 15.5kW solar storage capacity. Highly recommended to take 16pcs Grade A (280AH 302AH 304Ah 306Ah 314Ah 320Ah ) cells together to build a fully battery pack system. Here are several options provided with our DIY Box. Select your preferred solution and contact JIM for additional details. Thank you!

Plan 1:

DIY CASE WITH BMS & Cells

There is a completed DIY kit & cells for your DIY

Include Grade A LiFePO4 280Ah cells, DIY kit(already installed BASENGREEN 16S 200A BMS & active balancer), and accessories. Just
put the cells in by following our installation manual. Then you can easily get a 14.3kWh energy storage battery.

Plan 2:

DIY CASE WITH BMS

There is a DIY kit for your DIY project(You had cells).

Include DIY kit(already installed BASENGREEN 16S 200A BMS & active balancer) and accessories. Just put your cells in by following
our installation manual. Then you can at least get a 14.3kWh energy storage battery.

Option to upgrade to Grade A LiFePO4 cells in
Plan 1

Plan 3:

DIY CASE only

There is an empty DIY case suitable for your DIY project(You had cells & BMS)

Include case and accessories. Notice: The reserved BMS fixing holes and display screen holes of the box cannot be adapted to other
brands of BMS, please contact your sales representative for further confirmation before ordering.

Plan 4: BMS only

There is a BASENGREEN 16S200A BMS for your DIY project.

Notice:

It does not include the active balancer. Support RS485/CAN communication,please contact your sales representative for details.
