Quantity | 1 - 9 | 10 - 99 | 100+ - 100+ |
Price | US$40.95 | US$39.55 | US$38.83 |
Model NO. | LFB-II | Working Stroke | 1-4mm |
Resetting Pressure | u226540g | Ambient Temperature | u2264100u00baC |
Altitude | u22641000m | Vibration Frequency | 1-55Hz Accelerationu22645s |
Protect Class | IP67 | Warranty | 1 Year |
Transport Package | Cartons | Specification | 5KG |
Trademark | WOENELE | Origin | Zhejiang, China |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

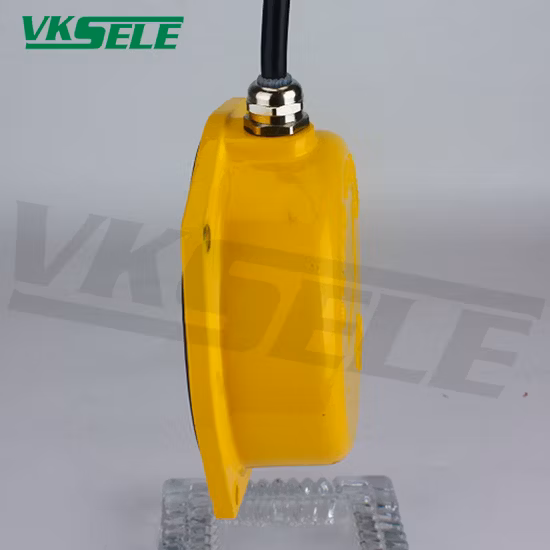

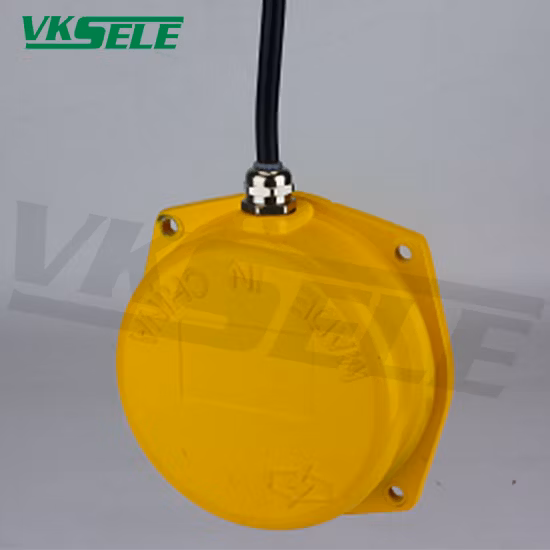

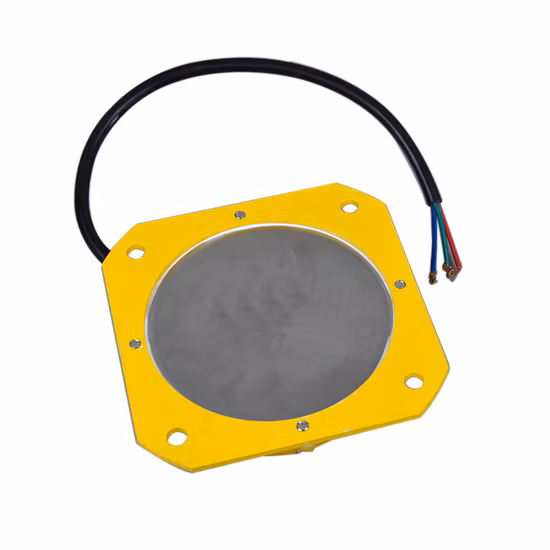

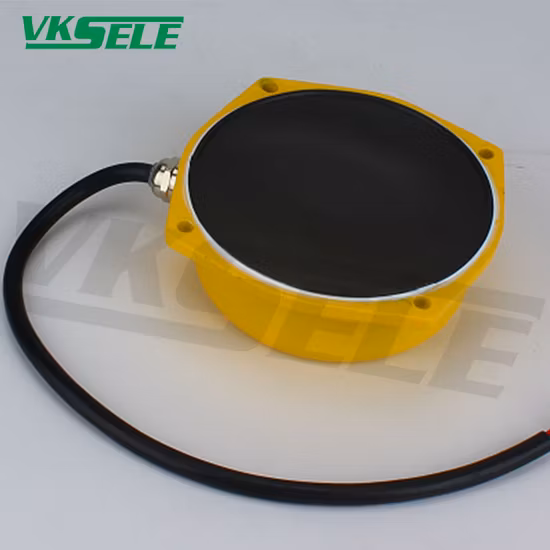

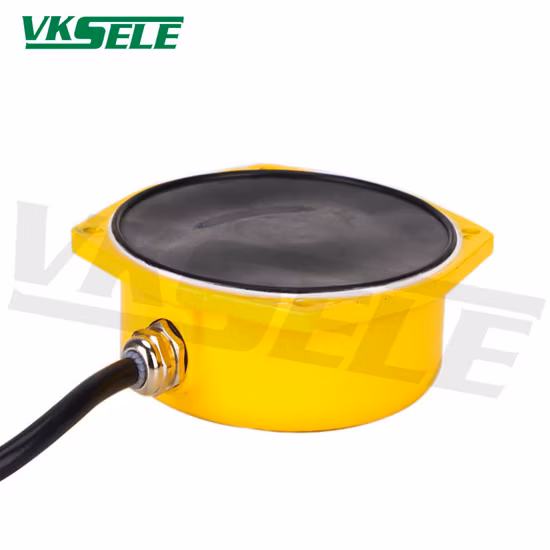

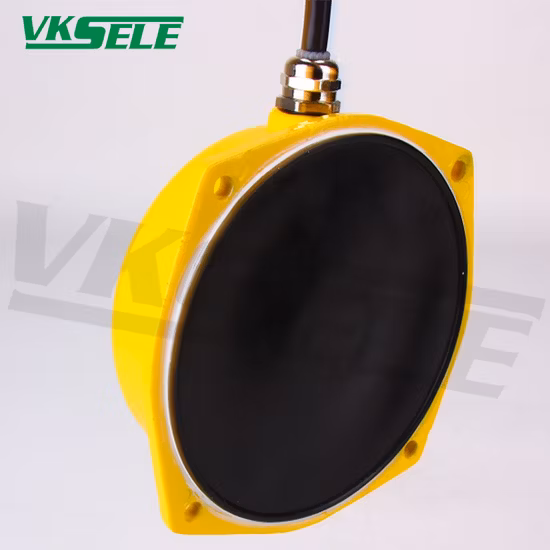

LFB type film level meter is widely
used in modern industrial production over kind of silo,
chute and equipment material level positioning and
automatic protection. it is used to monitor and control the
level of material and granular materials in containersit
has the advantages of advanced technology, reasonable
struclure,reliable perlormance, easy to use and mainlain,
and high performance to price
ratio.
Working
principle:
LFB type film level meter, the nature of the sexual pressure relay, installed in the side wall of the silo, chute or equipment,with the side pressure of the material to press the film on the end cover of the level meter, through the internal mechanism of the action of the micro switch to turn on the circuit, when the material level drops, the side pressure is lost, automatically reset todisconnect or turn on the circuit.
Installation And
Use:
When the film level meter is
installed, a 100mm material detection hole should be opened
in the side wall of the casing or container of the
equipment, When wiring, select one of the circuits
according to the wiring
diagram.
Product
parameters:
Product Name | Film level switch | Model | Stainless steel Thin Film Level Meters |
Load Characteristics | Pure resistance | Ambient temperature | ≤100ºC |
Working stroke | 1-4mm | Working pressure | 80-120g |
Resetting pressure | ≥40g | Relative humidity | ≤85% |
Altitude | ≤1000m | Vibration frequency | 1-55Hz acceleration≤5s |
Zhejiang Weikesen Power
Technology Co., Ltd. was established 15 years ago with
a capital of 1 million euros. Is a professional sales of
AC contactor, pull wire switch product design
concept is based on market demand manufacturing
products.
The products have been loved by various industries
throughout the country.Through our continuous improvement
of good quality and good market honor, we have won the
unanimous praise of the market and a large number of
foreign importers favor and recognition.
