| Quantity | 5 - / |
| Price |
| Port | Shenzhen port |
| Packaging | 574×395×(167-1638) |
| Lead Time | 21 |
| battery type | lifepo4 |

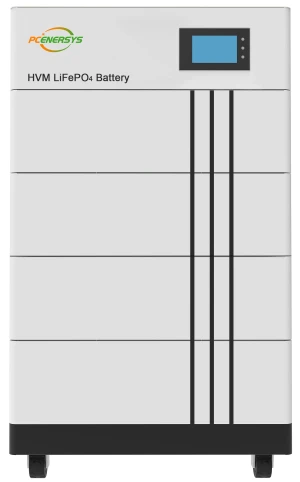

| Battery Module | HVM15S100BL (4.8KWh, 48V,100Ah 39kg) | |||||
| Number of Modules | 1 | 4 | 5 | 6 | 7 | 8 |
| Price（<5 units） | $465.00 | $2,350.00 | $2,810.00 | $3,270.00 | $3,730.00 | $4,190.00 |
| Price（6~20 units） | $450.00 | $2,270.00 | $2,720.00 | $3,170.00 | $3,610.00 | $4,050.00 |
| Nominal Energy (KWh) | 4.8 | 19.2 | 24 | 28.8 | 33.6 | 38.4 |
| Nominal Voltage (V) | 48 | 192 | 240 | 288 | 336 | 384 |
| Max Discharge Current(A) | 75 | 100 | 100 | 100 | 100 | 100 |
| Cycle Life | ≥6000times@80%DOD, 25°C | |||||
| Communication Mode | CAN | |||||
| Battery Size(LxWxH) mm | 574×395×167 | 574×395×970 | 574×395×1137 | 574×395×1304 | 574×395×1471 | 574×395×1638 |
| Weight (Kg) | 39 | 166 | 205 | 244 | 283 | 322 |
| Warranty | 5 years | |||||
