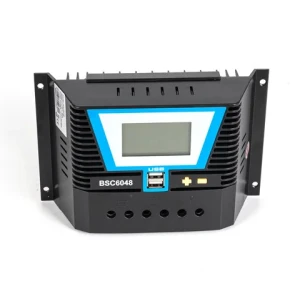

Factory Direct Sale 12V/24V 20A Solar Charge Controller Dual 5V/2A USB LCD Display

Name: Factory Direct Sale 12V/24V 20A Solar Charge Controller Dual 5V/2A USB LCD Display
Brand: Guangdong S-Creation Commercial Co., Ltd.
SKU: Tradewheel_2670850
Price: 9.43 USD
Availability: InStock

FOB Price 9.43 - 9.43 USD / pieces

Contact Now

Quick Details (View All)

Place of Origin	Guangdong, China	Brand Name	S-Creation
Model Number	BSC2024	Type	PWM
Application	Lighting Controller	Work Time (h)	24H
Material	Aluminum	Color	Black
Function	charging	Feature	Quick start instructions
Usage	off grid solar system	USB output	5V/2A
Display	LCD Screen	Certificate	CE
Warranty	1 year

Product Details

Products Description

LCD Symbol

Solar Controller

- USB Output Voltage: 5V

- Battery Voltage: 12V/24V auto can be choosed

- Battery type: Lead-Acid Battery & Lithium Battery

- Electric Protection: Over-current and short-circuit protection, inverse connection protection, low voltage and overcharge protection, over load and over charge protection
- Easy to Use: Comes with a LCD display that can clearly indicate the status and data, it can be conveniently switched.modes and parameter configuration
- Suitable for Off arid Solar Energy System with solar panels. Use in home,industrial. Commercial, camping RV etc

Details Images

> ABS material

> Using superior ABS material hull , with impact resistance, high flash point, Anti-Aging characters , which improved the controller using life and security .

> Smart large screen console

>Large LCD display, adjustable charging and discharging parameters, more convenient and clearer

> Wall-mounted design

> Easy to install and save space

> Terminal

> Multi-line interface，easy wiring

Product Features

This series controller is a PWM charge controller with built in LCD that adopts the most advanced digital technique.

The multiple load control modes enable it can be widely used in solar off grid system, traffic signal, solar street light, etc. * System voltage of battery automatic detection; * Intelligent PWM charging: Bulk, Absorption, Float, Equalization; * LCD display with Back-lighting shows device’s operating data and working condition; * Humanized simple button operation; Adjustable charge-discharge control parameters; * Support of various battery types: Lead-acid battery (AGM, Gel, Flooded), Lithium battery (LiFePO4, LiNiCoMnO2) and etc; * Multiple load control modes: Manual Control, Light Control, Reverse Light Control, Light and Dual Time Control; * Automatic temperature compensation and accumulated function of charge and discharge; * Double USB output 5V/2A; * Perfect electronic protections.

Product Paramenters

Model	BSC2024	BSC3048	BSC4048	BSC6048	BSC8048	BSC10048
Current	20A	30A	40A	60A	80A	100A
Voltage	12/24V	12/24/36/48V
size(mm)	1478236	1879647			20013261	20013262	23015362
Battery Types	Lead-Acid Battery & Lithium Battery
Charging Stages	Four-Stage PWM Charging
Mount	Wall mounting
Note	1. LCD with Backlight shows the Current & Voltage of solar panel and battery; 2. Max Voltage of Solar Panel 100V; 3. DC Load with Light and Dual Time Control; 4. Two USB 5V/2A; 5. Perfect Protections.
