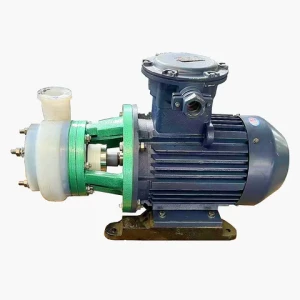

Salt Water Pump NaCl Solution Transfer Fluoroplastic Alloy Centrifugal Pump

Name: Salt Water Pump NaCl Solution Transfer Fluoroplastic Alloy Centrifugal Pump
Brand: Anhui Tenglong Valve Manufacturing Co.,Ltd.
SKU: Tradewheel_2683028
Price: 590 USD
Availability: InStock

FOB Price 590 - 990 USD / sets

Contact Now

Quick Details (View All)

Customized support	OEM, ODM	Brand Name	TEFLOW PUMP
Model Number	FSB-D	Place of Origin	Anhui, China
Application	Biofuel Industry, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Metal and Equipment Manufacturers, Pharmaceutical industry	Horsepower	3kw-15kw(4-20hp)
Power Source	Electric	Pressure	Low Pressure
Structure	Single-stage Pump	Outlet Size	25-80mm
Voltage	200v-600v,or customized, 200v-600v, 50Hz-60Hz or as customer required	Power	3kw-15kw(4-20hp)
motor	3kw-15kw(4-20hp)	Product name	Salt Water Pump NaCl Solution Fluoroplastic Alloy Centrifugal Pump
Material	PVDF,PTFE,PFA,FEP,ETFE,F46,fluorine alloy,PP	Type	FSB-D
Certificate	CE,COC,ISO9001	Warranty	12 months from date of use (except wearing parts)
Inlet*Outlet	(25-25mm)-(100-80mm)	Flow rate	3.6-100m3/h(60-1666l/min)
Head	15-32m(50-106feet)	Speed	2900r/min, 1450r/min,3600r/min or as customer requried

Product Details

MAGNET PUMP

Anhui Tenglong pump and valve Co., Ltd. is an enterprise specializing in the production of chemical fluoroplastic centrifugal pump for 37 years. All products of the company support customized drawings and OEM.

The following "FSB-D" is the product model set by the Ministry of chemical industry of China

Type	Flow （m³/h）	Head m	Eff %	NPSHr m	Aperture mm	Speed r/min	Power kW
25FSB-25D	3.6	25	30	3.0	25X25	2900	3
40FSB-15D	5	15	45	3.0	40X32	2900	3
40FSB-20D	10	20	42	3.0	40X32	2900	3
40FSB-30D	10	30	36	3.0	40X32	2900	3
50FSB-20D	12.5	20	52	3.0	50X32	2900	3
50FSB-25D	12.5	25	48	3.0	50X32	2900	3
50FSB-30D	12.5	30	46	5.0	50X32	2900	3
65FSB-32D	25	32	56	3.5	65X50	2900	5.5
80FSB-20D	50	20	65	3.5	80X65	2900	5.5
80FSB-25D	50	25	64	3.5	80X65	2900	7.5
80FSB-30D	50	30	64	3.5	80X65	2900	7.5
100FSB-32D	100	32	70	3.5	100X80	2900	15

FSB-D series fluorine lined centrifugal pump is suitable for conveying various chemical media, especially for conveying strong acids and bases such as concentrated sulfuric acid, hydrofluoric acid, thionyl chloride and liquid alkali.

IHF series can become ODM and OEM according to customer needs

1. High temperature resistant type-G, the maximum temperature resistance is 180 ℃. (lined with Japan Daikin PFA water cooler seal) 2. J-type alkaline liquid, which can transport alkaline liquid. 3. granular K type, which can transport 10% suspended particles, even dispersed suspension or emulsion.。

① Pigment-free and pure raw materials, materials can be selected from PFA/PVDF/ ETFE/ FEP, according to your needs.

① Use pure PFA FEP PVDF PTFE raw materials without pigment to flow to smooth and high efficiency ② The thread groove is firmly embedded, and the high-strength skeleton will not deform at high temperature

① Tetrafluoro mechanical seal is more corrosion-resistant, and the grinding surface material SiC SSIC is optional without drip ② Flushing water machine seal can transport 20% particulate matter, temperature resistance: 180 °

① The bearing adopts SKF NSK brand, with small vibration, strong stability and longer service life

BASED IN CHINA, FACING THE WORLD

We can provide you with various customized services

A powerful source factory to solve your series of worries

TENGLONG FACTORY PRODUCTION SCENE

37years of manufacturing experience manufacturers to solve your worries

PROCESSING WORKSHOP

SEIKO WORKSHOP

ASSEMBLY WORKSHOP

DELIVERY WORKSHOP

STRONG PRODUCTION AND MANUFACTURING CAPABILITIES

Outdoor aging treatment → raw material sawing machine cutting → CNC machining center processing → fitter drilling → fluorine-lined firing → CNC lathe precision → grinding and anti-rust paint → inspection and storage classification → product assembly → test center inspection → inspection through painting → Warehousing, packaging and delivery

PRACTICAL CASE

We serve more than 2,000 chemical companies around the world. We insist on paying attention to customer needs, inviting customers to participate, sharing value with customers, and growing together with customers.

We are your better choice

TENGLONG SERVICE

Standard and standardized service process

A number of utility model invention patents, national certificates, various qualification certificates

TENGLONGs OEM ODM is your best choice

Service Process

①Online inquiry ②Provide you with solutions ③Online order ④Production for you

⑤Logistics to your designated domestic port ⑥After-sales service ⑦Regular return visit

International logistics

different type of transportation for your choice

To ensure that you receive the goods safe and sound To provide you with customized packaging services.
①	Packaging method can be customized
②	Packing material can be customized
③	Packaging LOGO can be customized

EXPRESS FOR SAMPLE OR URGENTIY ORDERS

FAQ

1.Q: Are you a manufacturer or trading company?
A: We are a manufacturer professional in magnetic pump with high quality for more than 37 years.

2. Q: How to customize pumps and mechanical seals ?
A: Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.

3. Q: How can I pay for my items? Which kind of payment can you provide? A: Usually by T/T, 30% payment after PI confirmed, the balance should be paid after inspection,before shipment. L/C at sight.

4. Q: What information should I offer for quotation?
A: Medium: ____________ PH: ________
Specific Gravity: _______
Medium transmission temperature: _________
Capacity/Flow: ________m3/h
Head: _________m
Voltage: ____________V
Frequency: _________Hz
Power:_____________KW

5. Q: What is your minimum quantity?
A: One set is also welcomed to us.

6.Q:How long is warranty?
A:1 year for main construction warranty.

7.Q:What is your lead time? A:Normally 10 days. If client is in urgent, we have plenty of spare parts, we could finish assembling and testing in 3-5 days.

8.Q:What about shipment or delivery? A:Depnends on customers requirements, We can do EXW, FOB, CIF,etc.

9.Q:Who is in charge of after-sales? A:Teflow has several professional after-sales service teams, we will follow up the clients comments and suggest them good solutions. Solve clients problems ASAP.

TEFLOW Focus on Pumps
♥ If you need this kind of pump, please tell me more information about your need.
♥ If you havent found what you want, please tell me whats you need, TEFLOW have many kinds of pump, we can help you.
