Place of Origin | Zhejiang, China | Brand Name | QVAND |
Product Name | MCB lockout | Material | nylon PA |
Color | Red | Service | OEM support |
Part No.: M-K01/02/03/04

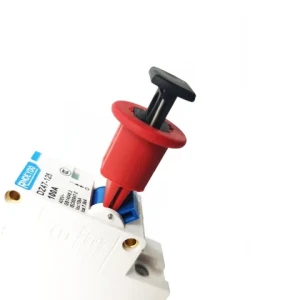

Miniature circuit breaker lockout
a) Made
of durable
PA nylon
b)
Fit the most existing circuit breaker types. Suitable for
single and multiple pole breakers.
c) Recommended
using combinated with a padlock for added safety.
d) No need any tools for installation, very convenient.
Miniature circuit breaker lock M-K01~04 specification
Model | specification |
M-K01 |
Pin in standard type for 1~4 poles breakers with two hole inner dimension 10~12mm. |
M-K02 |
Pin out standard typ for single pole breakers with two hole outer dimension equal or smaller than 15mm. |
M-K03 |
Pin in wide type for 1~4 poles breakers with two hole inner dimension 18~20mm. |
M-K04 |
Tie bar type for single or multiple breakers without any holes. |
