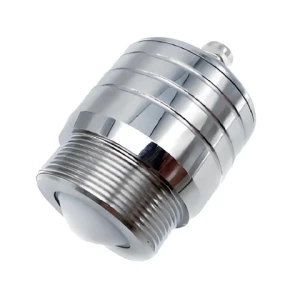

Non-contact water level measuring instrument IP68 80G radar level sensor for lake/pool/open channels/sea

Name: Non-contact water level measuring instrument IP68 80G radar level sensor for lake/pool/open channels/sea
Brand: Pockwell Automation Technology Company Limited
SKU: Tradewheel_2663019
Availability: InStock

FOB Price 135 - 165 USD / pieces

Contact Now

Quick Details (View All)

Grade	Industrial	Warranty	12 months
Customized support	OEM, ODM	Place of Origin	Hunan, China
Brand Name	Pockwell	Model Number	PWL-R807/808
Material	PP / Stainless steel	Mode	Customization
Measurable medium	Fresh water, sea water	Measuring Method	Non-contact radar wave principle
Measuring range	0.1 m ~65m	Accuracy	u00b11mm
Output signal	4~20mA/RS485/HART	Power supply	9~28VDC/14~28VDC
Working Temp.	-30 ~ 75u2103	IP Rating	IP67
Installation method	Threaded or by bracket	Bluetooth Function	Available

Product Details

Products Description

PWL-R807/R808 is radar water level meter referring to Frequency Modulated Continuous Wave (FMCW) radar products that works at 76-81GHz. The maximum measuring range of the product can be 65m, and the blind area is 10cm. It’s higher working frequency and a larger bandwidth, makes the measurement accuracy higher. The product provides a bracket fixing method, and no on-site wiring is required, making installation convenient and easy.

Applications

Product Paramenters

Model	PWL-R807/808
Application	Water level at rivers, dams, lakes, underground pipe network
Measuring Range	0.1 m ~65m
Blind Zone	10cm
Accuracy	±1mm
Frequency	76GHz ~ 81GHz, 5GHz FMCW bandwidth
Beam Angle	6°
Signal Output	4-20mA/RS485/HART
Power Supply	9~28VDC/14~28VDC
Display	Without
Bluetooth	Only available for PWL-R808 series Max range is 35m for with bluetooth function, and available in 12m away from sensor
Working Temp.	-30 ~ 75℃
Working Pressure	Atmospheric
Antenna Type	Lens antenna
Protection Level	IP67
Cable Length	10 meters
Housing Material	PP or stainless steel
Installation Method	Threaded or by bracket (Bracket is along with shipment)

Dimensions

Product Features

Company Profile

Pockwell Automation Technology Co., Ltd is a sensor manufacturer and solution provider for industrial process control automation for 10+ years.
Our team is full of innovation and technical expertise, dedicated to providing high quality, intelligent measurement solutions and one-stop service for industrial automation. Pockwell’s products are widely used in oil & gas, water & wastewater, chemical & petrochemical, food and other fields in 100+ countries.
Pockwell commits: Quality first and reliable. Always play a trustable partner role in clients project & business!

Why Choose Us

Your Needs. Our Expertise.
Welcome to Pockwell - Your Trusted Partner For Advanced Metering Products, Industrial Instrumentation Solutions.
♦10+ years experience: From recommending suitable products to after-sale, one-stop worry-free service.
♦Independent R&D team: Rich project experience, can quickly and professionally meet customization requirements.
♦Strong supply chain resources: Providing excellent assembly capability to achieve cost-effective and time-saving.
♦OEM & ODM services.
♦12 months quality warranty (can be longer).
♦6-person pre-sales team to help you select right product and solution.
♦After-sale team provides timely and effective remote technical support services, and can assist locally at project site for
special projects.
♦Our people: A specific process engineer for each process, to control whole processes integrally.
♦Our machines: The core process uses Germany/Japan/UK imported equipment, to ensure high precision, stability, production efficiency, pass rate and good consistency.
♦Our raw materials: E.g. the process gases used in production are all 99.999% pure.
♦Our environment: 10 major power and auxiliary systems to ensure the constant temperature, pressure and humidity environment during production.

FAQ

Q: Is there MOQ with your product?
A: Nope, 1pc for testing is acceptable.

Q: Do you provide customized products?
A: Yes, OEM, ODM & customization are welcomed.

Q: When can you delivery my order?
A: We have raw materials in stock, lead time 7~15 working days normally. For bulk quantities and customized items, please check with our sales engineer.

Q: What is the warranty of your products?
A: Our warranty time is 12 months after shipment.

Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer for partial of our products, and we cooperated with many specialized brother companies to deal with their products, to provide one-stop service for our clients to meet the requirements of different applications and demands. So to save clients time and budget.

Q: Could I visit your factory?
A: Of course, welcome and we will guide you visit our factory.
